UC Series

5'' Ultra-thin Classic Borescope

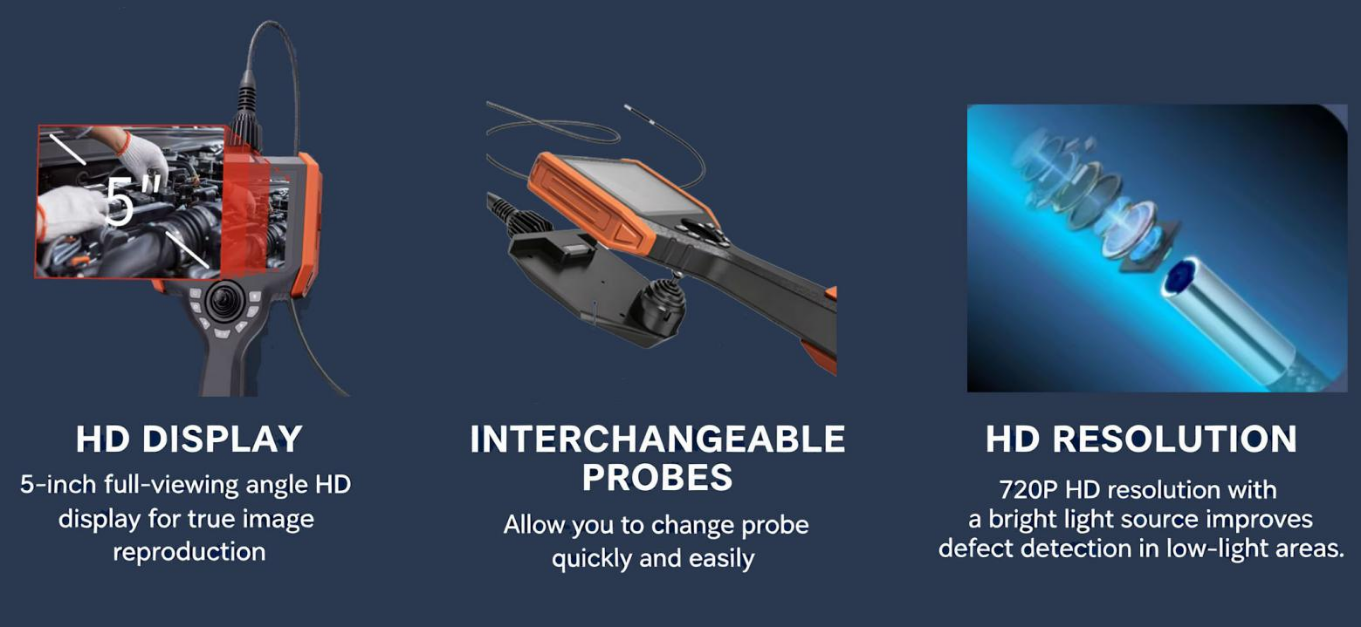

Modular Design HD Display Joystick Control

5 inch HD LCD screen
720P HD Mega Pixel camera
0.75mm-2.8mm probes for optional
Support WiFi Transmission

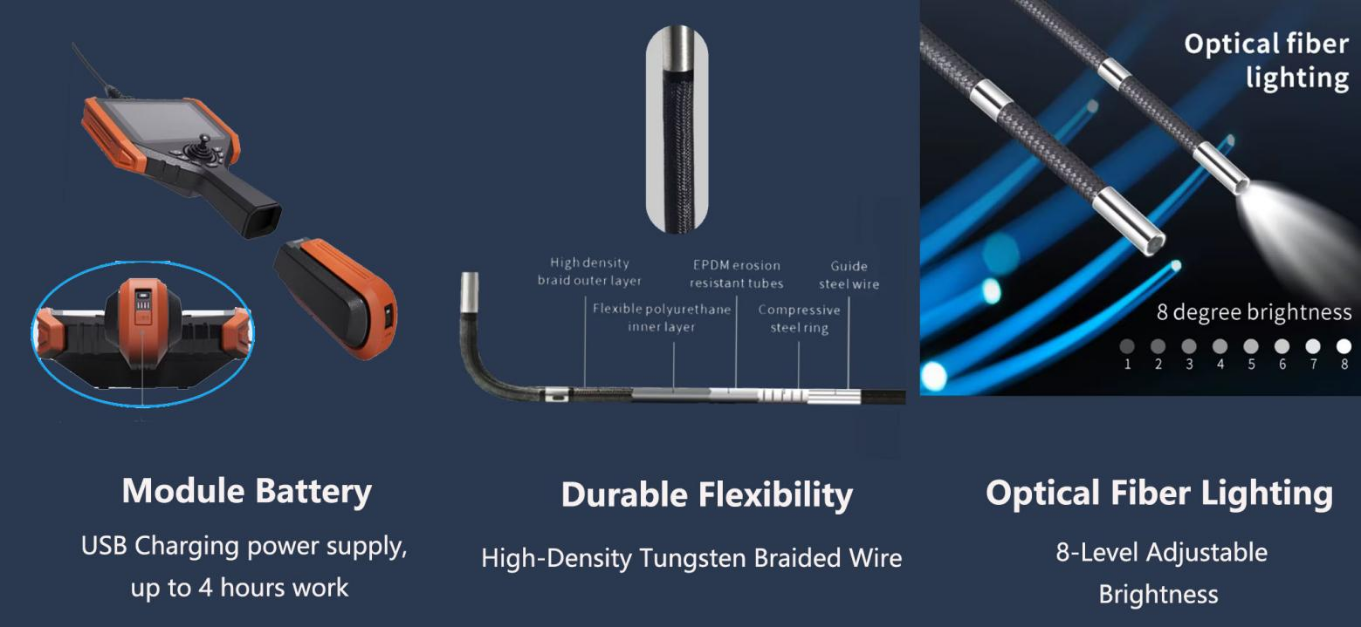

Rear High Power LED Optic Fiber Illumination
Modular Design Detachable Probe & Display
Modular Battery

Quantity

Contact Now

add to cart

The UC Series is a"5-inch HD Display Ultra-thin Borescope". It features an ultra-thin probe lineup ranging from 0.75mm to 2.8mm, capable of accessing narrow, enclosed cavities to eliminate hidden blind spots. It adopts high definition imaging to identify micro defects and subtle abnormalities for accurate visual assessment. Fitted with a high-density tungsten braided insertion tube, it maintains consistent reliable performance in harsh industrial
environments. Equipped with adjustable high-power fiber-optic LED lighting and a user-friendly intuitive control panel, it supports flexible real-time image optimization for simple, efficient operation. Widely applicable to aerospace, automotive, precision manufacturing and other industrial sectors.

Feature:

Application:

The UC Series 5-inch HD Display Ultra-thin Borescope can be widely used in precision manufacturing, automotive maintenance, aerospace inspection, pipeline detection and electronic quality control. Thanks to its ultra-slim flexible probe, it easily accesses tiny, narrow cavities that conventional inspection tools cannot reach, such as engine fuel injectors, micro cooling channels of molds, aircraft turbine cooling holes and miniature circuit board gaps. Equipped with a 5-inch high-definition screen, it delivers sharp real-time imaging to spot tiny cracks, blockages, rust and assembly defects without disassembling equipment, greatly boosting inspection efficiency and lowering maintenance costs across industrial non-destructive testing scenarios.

Specification:

Host system
Screen size	5-inch HD LCD display
Display Resolution	1280*720
Zoom In/Out	5X
White Balance	Auto white balance/manual
Photo/Video Format	JPEG/MP4
File Storage	Standard TF card: 32G
Output Port	HDMI video output, Micro USB port
Language	Multiple
Host size	35015559mm
Compatibility	Interchangeable monitor and tube with different diameters
Software Function	Freeze, photograph, zoom, flip, video playback, analog ruler function
Camera System
Diameter	2.8mm	1.8mm	1.2mm	0.95mm	0.75mm
Viewing Direction	Front View
Camera pixel	0.16 Mega
Image Resolution	640480 / 960720 / 1280*720
Video Resolution	640480 / 960720 / 1280*720
Light	Rear-mounted LED +Optic fiber
Brightness Levels	0-8 level adjustment
FOV	120°
DOF	3-70mm
Steering Angle	Four-way 360°	Two-way180°	No	No	No
Bending Angle	180°	160°	No	No	No
Tube Material	wear-resistant tungsten braided wire
Tube Length	1m (Customization)
Power Supply
Battery	Li-on Battery Module
Working time	4 hours
Operating environment
Host operating temperature	-20℃-50℃
Probe operating temperature	-20-70℃
Storage temperature	-20-60℃
Relative humidity	Max 90%，No condensation
Water/Dust Proof	Probe/tube: IP67; Host: IP54
Configuration
Standard configuration	5-inch ultra-thin videoscope1, Card reader1
	Data cable1, Charger1, Toolbox*1
