PW Series

Wide Pipeline Endoscope
9'' HD 50mm 360° Sewer Inspection Camera

9 inch TFT color screen with sunshade
50mm HD camera, suitable pipe diameter 60-400mm

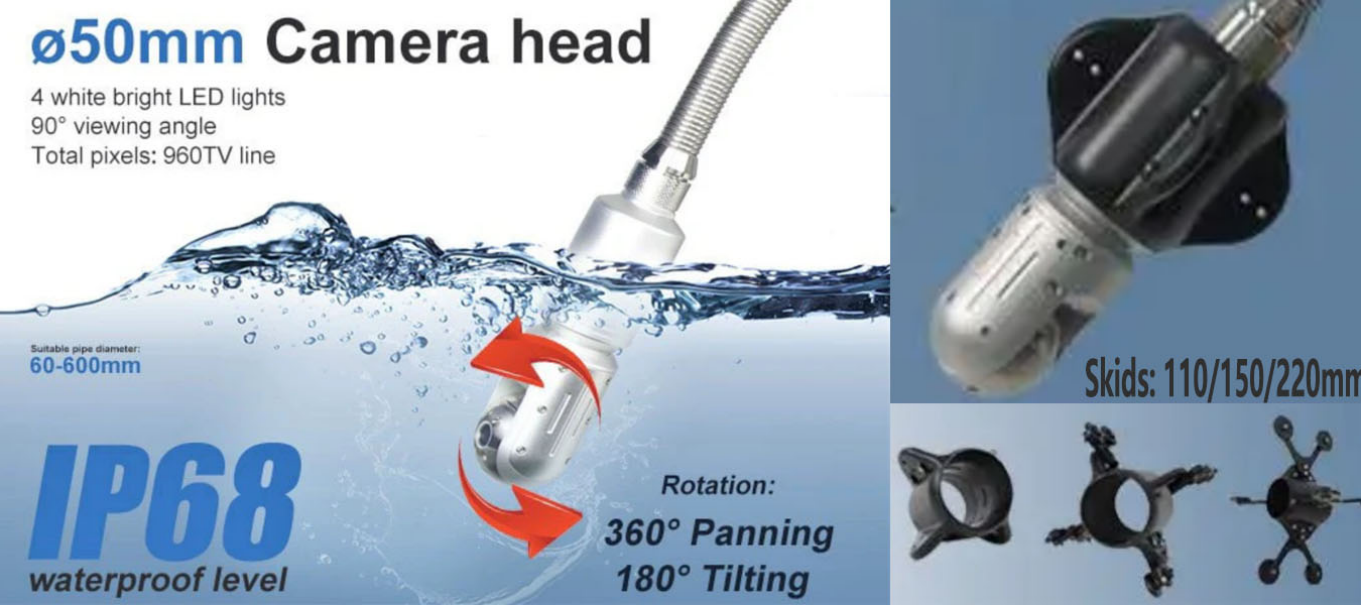

Camera Pan 360°; Tilt 180°Rotation
IP68 Waterproof Probe

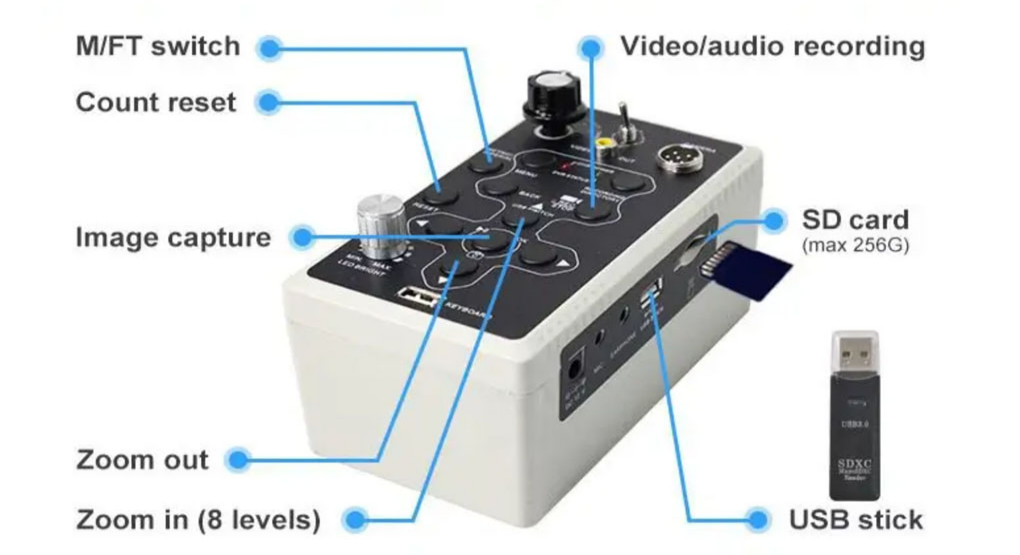

One-click photo or video/audio recording
Zoom function 8X

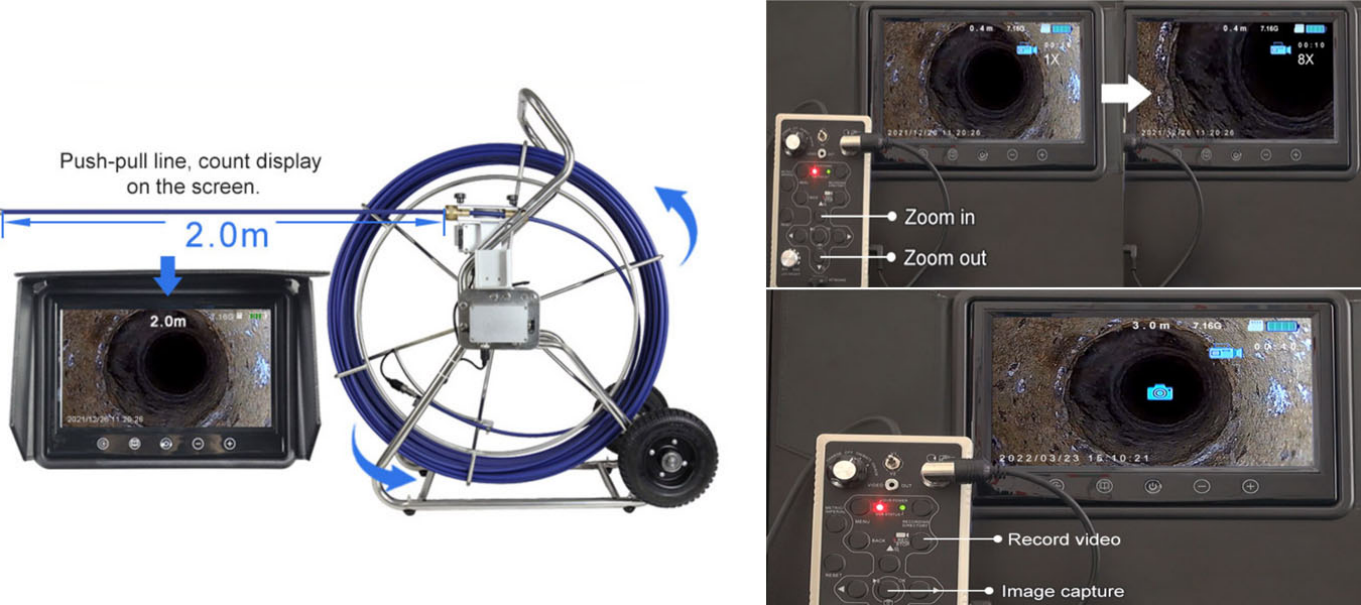

Cable M/FT counter and Text
Detachable 512Hz transmitter
Quantity
Contact Now
add to cart

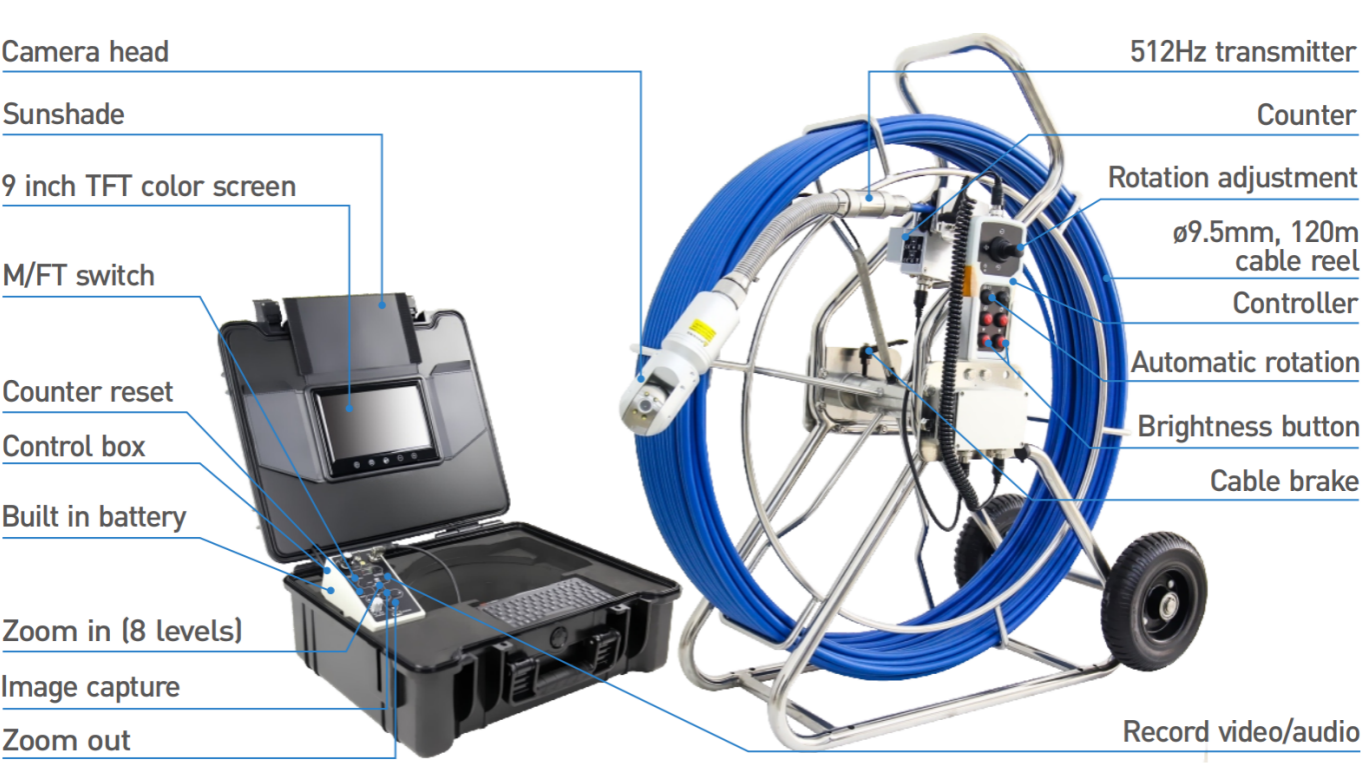

The PW Series is a"9-inch HD Wide Pipeline Endoscope". It features a pan 360°tilt 180°rotation camera with 4 high-bright LEDs and IP68 Waterproof rating, paired with a 9-inch TFT color screen, delivers clear visuals for inspections even in dark or wet environments. Suitable for 60-400mm pipes , one-touch video/audio recording & image capture, 8 levels of digital zoom, with keyboard and a meter counter , 512Hz transmitter helps you accurately track distances and text during inspections. With remote controller, ensures seamless operation.

Feature:






Application:

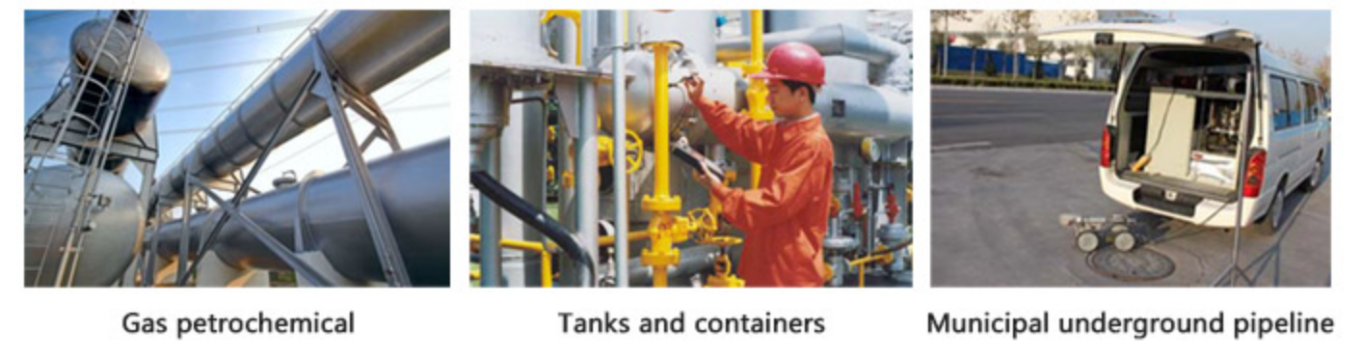

The PW Series 9-inch HD Wide Pipeline Endoscope is widely used for inspection of large pipelines, pipe sewers, underground cable pipes and underwater systems, plus inspection & maintenance in municipal pipelines, petrochemical, tank, engineering industries, as well as ventilation pipe repair, explosion-proof inspection and sewer works. It’s an ideal tool for plumbers, contractors, inspectors, engineers, municipal workers, and other professionals. It helps solving the inspection of hard-to-reach areas like wastewater systems, various pipelines and drains.


Specification:

Host system

Screen size

9-inch TFT Color Display

Display Resolution

800*480 px

DVR Resolution

720*576 px

Video Storage Format

AVI

Photo Format

JPEG

Storage medium

SD card 8GB, Up to 256GB & USB stick

Zoom in/out

8x

Language

Multiple

Camera System

Diameter

ø50mm*170mm

Light

4 LEDs high light

Video resolution

720*576 px

View angle

90°

Rotation

Pan360°;Tilt180°

Skids

110/150/220mm

Waterproof

IP68

Suitable pipe diameter

60-400mm

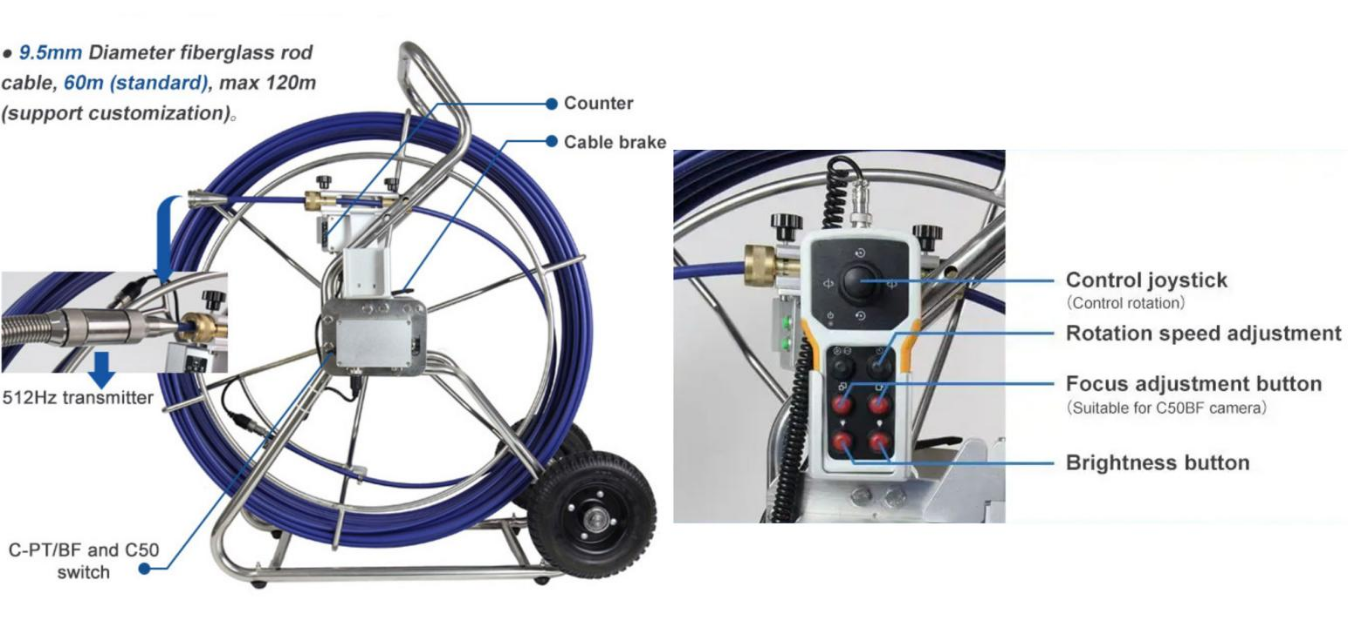

Cable reel

Material

Fiberglass

Cable size

768(L)*396(W)*820(H)mm

Cable diameter

Ø9.5mm

Length

60m-120m (Optional)

Power Supply

Battery

Built-in rechargeable Li-battery

Charge time

5 hours

Working time

4 hours

Package

Size

511(L)*430(W)*200(H)mm

Case material

Engineering plastic

Configuration

Standard configuration

9-inch display*1 ,50mmPTCamera *1, Skid*3

Cable reel *1, Li-battery*1, Keyboard*1, Remote*1

Connecting cable*1, Charger*1, Control box*1, ABS Case*1
