PM Series

Modular Pipeline Endoscope

7'' HD 23mm Sewer Inspection Camera

7 inch TFT color screen with sunshade
23mm HD camera, suitable pipe diameter 30-200mm
IP68 Waterproof Probe

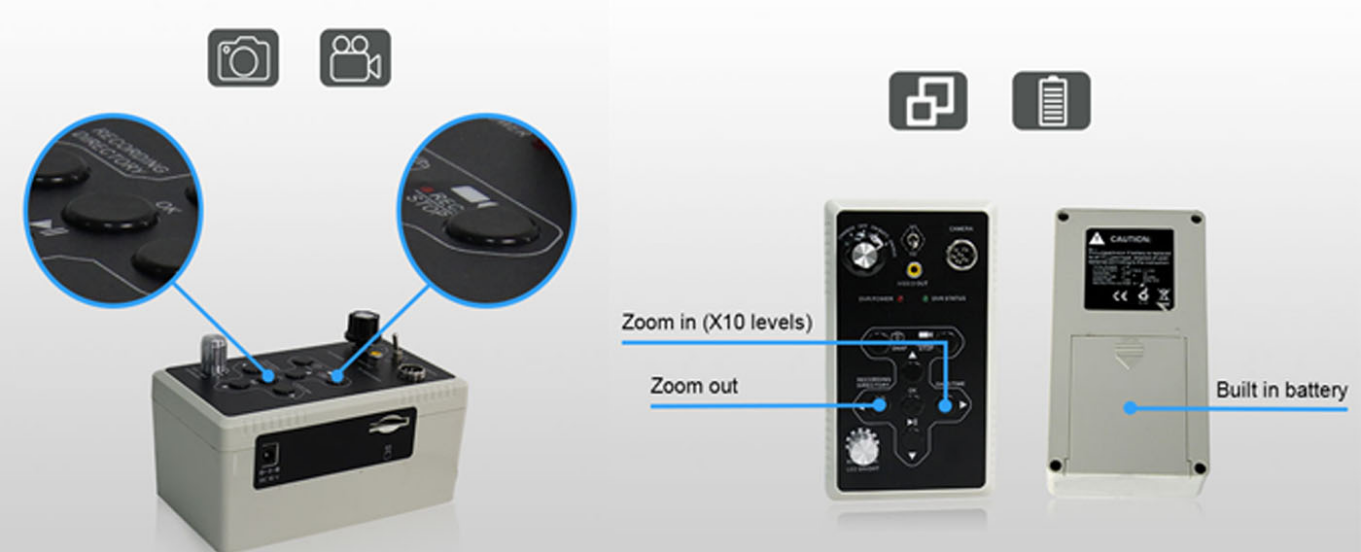

One-click photo and video/audio recording
Zoom function 8X

Quantity

Contact Now

add to cart

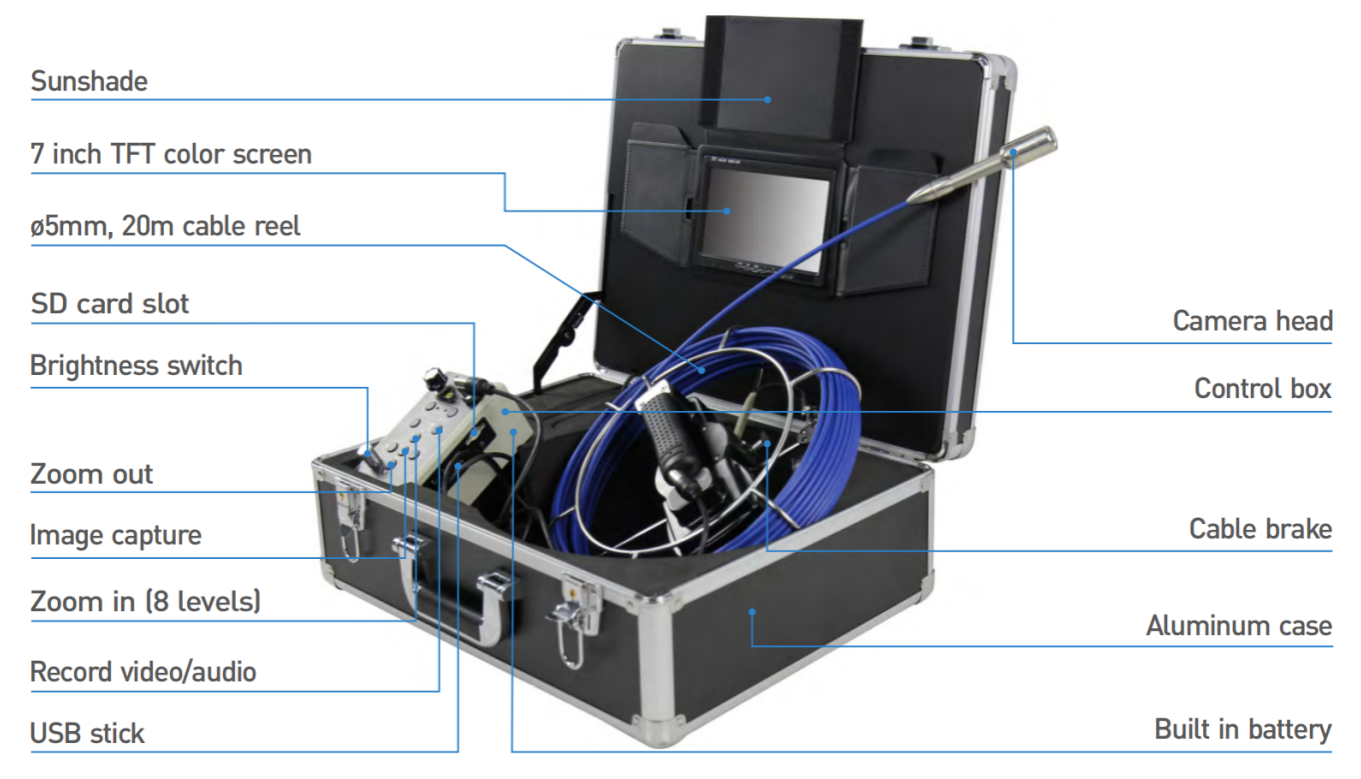

The PM Series is a"7-inch HD Modular Pipeline Endoscope". It features a 23mm HD camera head with 12pcs LEDs and wide view angle, paired with a 7-inch TFT color screen for clear visual inspecting, plus a dedicated sunshade for improved visibility in bright settings. The camera carries an IP68 waterproof rating and suitable for inspecting pipes range from 30 to 200mm. Practical functions include one-touch video/audio recording & image capture, 8 levels of digital zoom. The built-in battery delivers up to 7 hours continuous work, makes outdoor work effortless and optional removable camera heads are available to adapt to diverse inspection needs.

Feature:

Application:

The PM Series 7-inch HD Modular Pipeline Endoscope is widely used for inspecting sewers, central air conditioners, chimneys, plumbing, building pipelines, cable ducts and ventilation pipes. It solves the common headaches of inspecting hard-to-reach narrow spaces and high-risk areas, enables non-destructive real-time checks for issues like corrosion and blockages, and effectively boosts inspection efficiency while cutting maintenance costs.

Specification:

Host system
Screen size	7-inch TFT Color Display
Display Resolution	800*480 px
DVR Resolution	720*576 px
Video Storage Format	AVI
Photo Format	JPEG
Storage medium	SD card 8GB, Up to 256GB & USB stick
Zoom in/out	8x
Language	Multiple
Camera System

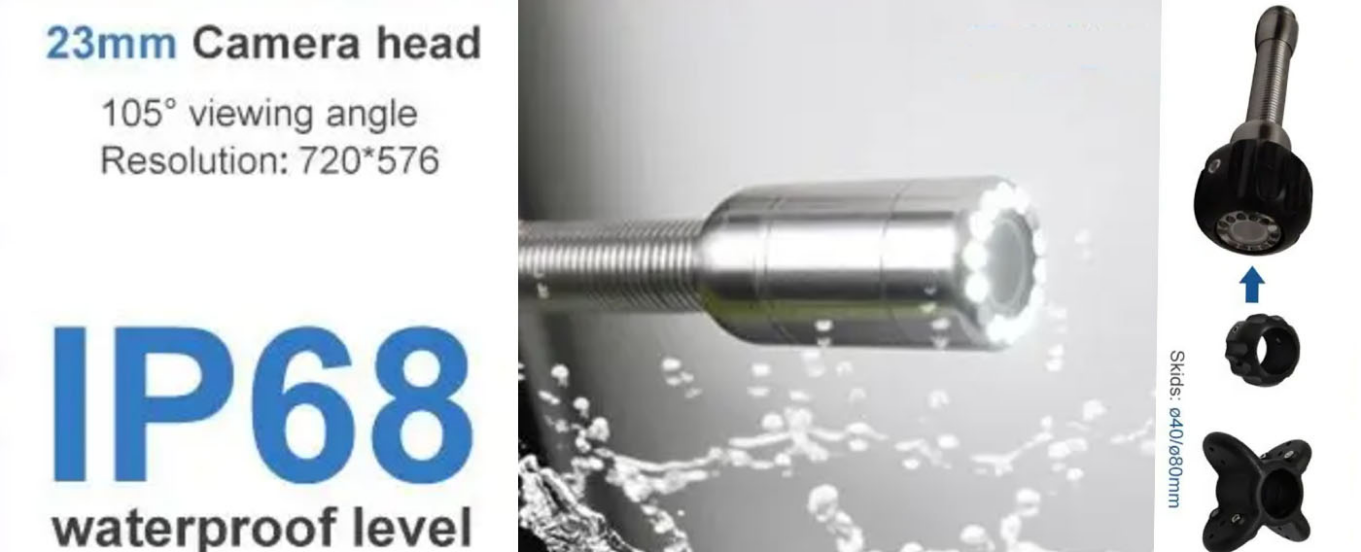

Diameter	ø23mm*134mm

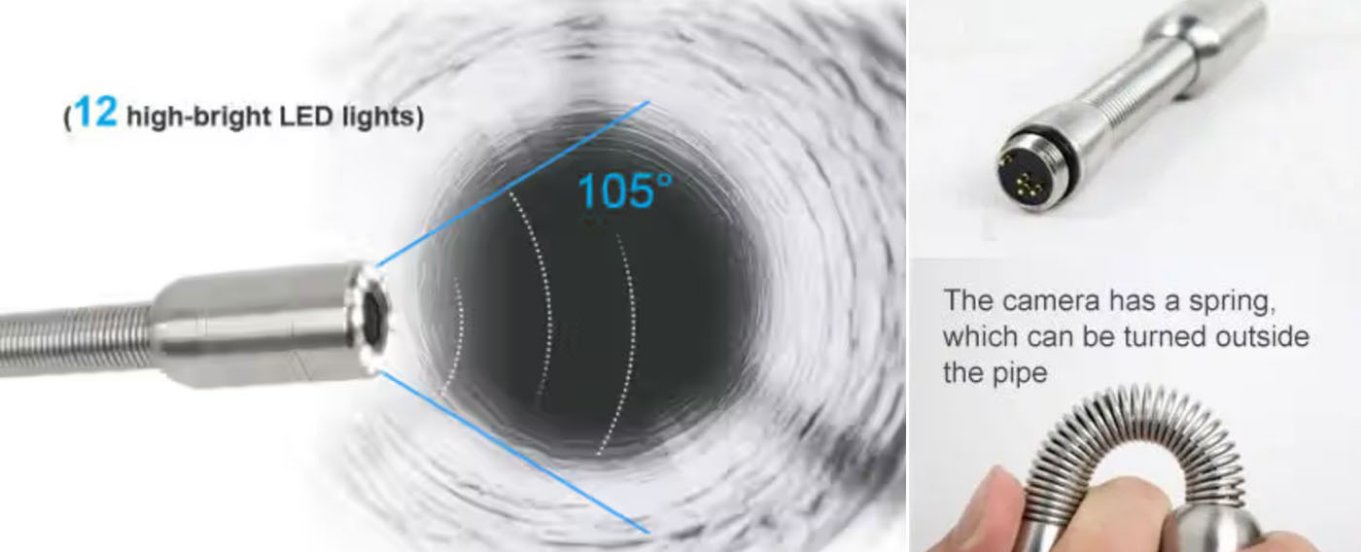

Light	12 LEDs high light
Video resolution	720*576 px
View angle	105°
Skids	40/80 mm
Waterproof	IP68
Suitable pipe diameter	30-200mm

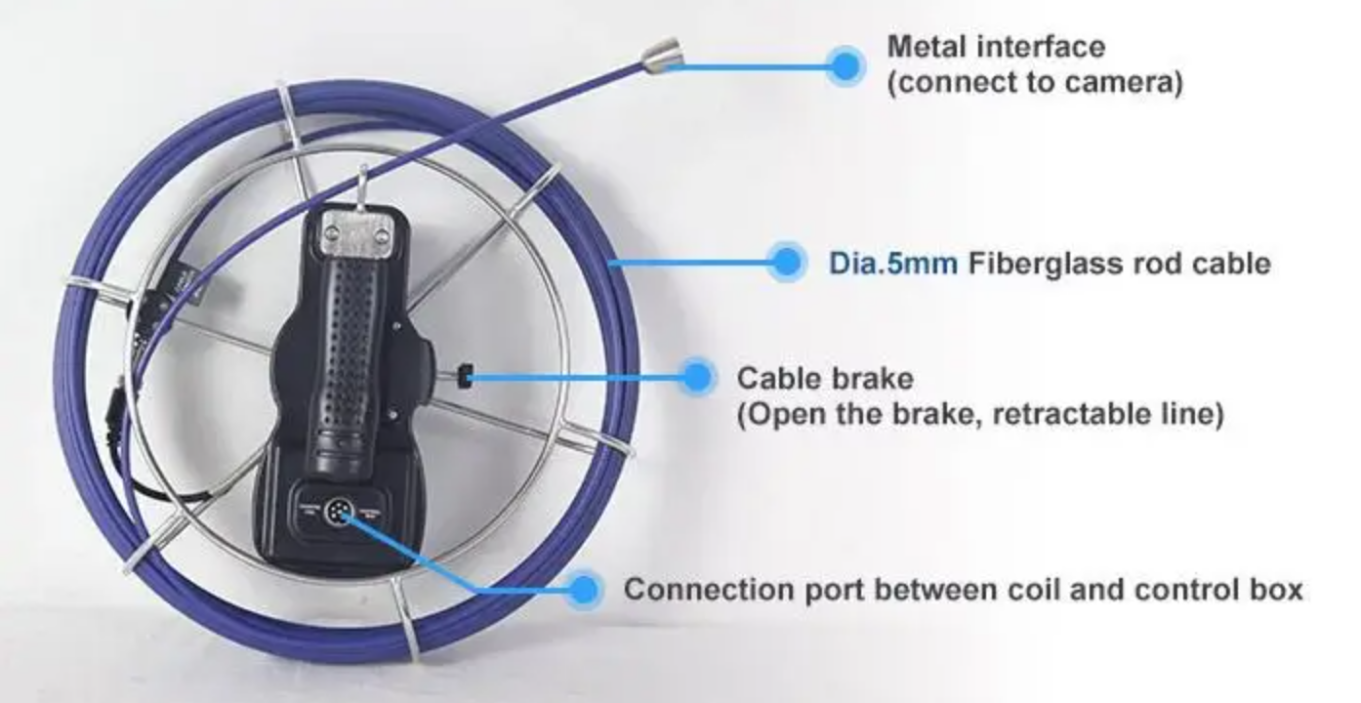

Cable reel
Material	Fiberglass
Cable size	ø330*110mm
Cable diameter	ø5mm
Length	20m-50m (Optional)
Power Supply
Battery	Built-in rechargeable Li-battery
Charge time	5 hours
Working time	7 hours
Package
Size	477(L)390(W)180(H)mm
Case material	Fire board and aluminum alloy
Configuration
Standard configuration	7-inch display1 ,23mm Camera 1, Skid*2
	Cable reel 1, Li-battery1, Connecting cable*1
	Charger1, Control box1, AL Case*1
