PC Series

Clear Pipeline Endoscope

9'' HD 23mm Sewer Inspection Camera

9 inch TFT color screen with sunshade
23mm HD camera, suitable pipe diameter 30-200mm
IP68 Waterproof Probe

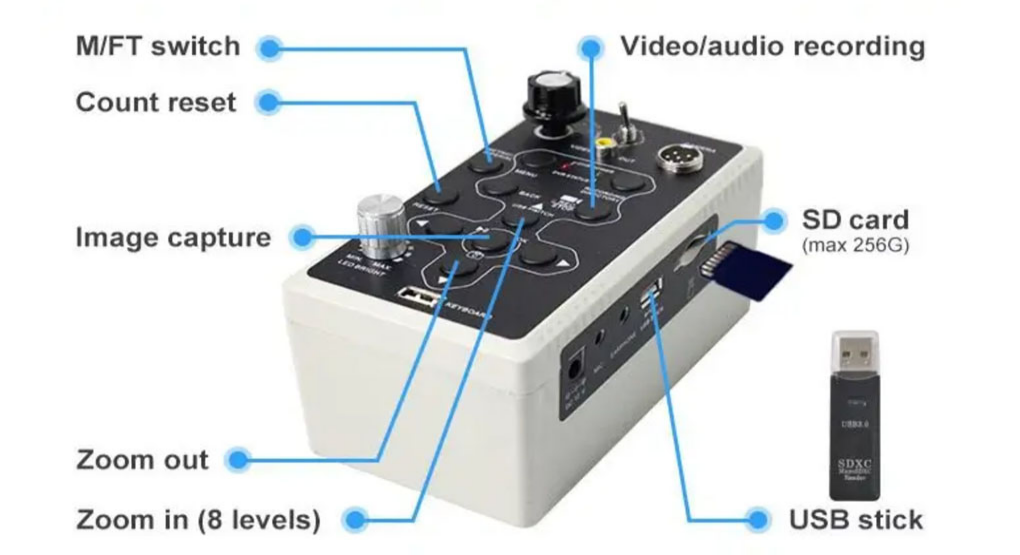

One-click photo or video/audio recording
Zoom function 8X
Cable M/FT counter and Text
Build-in 512Hz transmitter

Quantity

Contact Now

add to cart

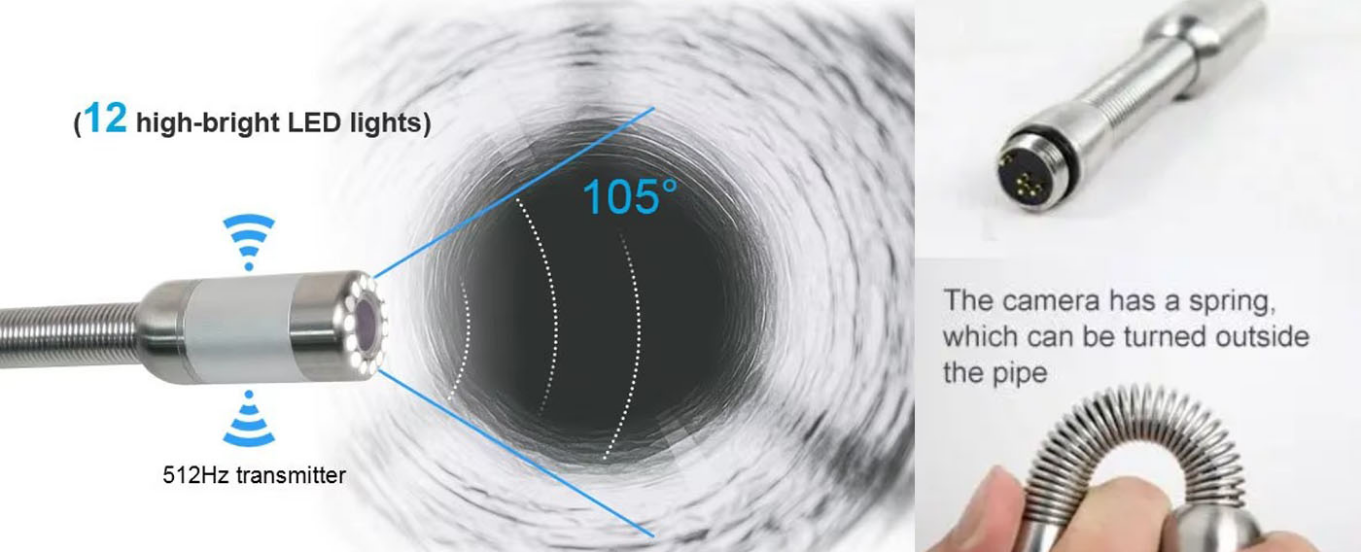

The PC Series is a"9-inch HD Clear Pipeline Endoscope". It features a 23mm HD camera head with 12pcs LEDs and 512Hz transmitter, paired with a 9-inch TFT color screen, gives vibrant video & photo for inspections, plus a dedicated sunshade for improved visibility in bright settings. The camera carries an IP68 waterproof rating and suitable for pipes with a diameter of 30-200mm. Practical functions include one-touch video/audio recording & image capture, 8 levels of digital zoom, with keyboard and a meter counter helps you accurately track distances and make a text during inspections. Plus, the long-lasting battery gives you up to 7 hours of uninterrupted use for a complete inspection.

Feature:

Application:

The PC Series 9-inch HD Clear Pipeline Endoscope is widely used for inspecting sewers, central air conditioners, chimneys, plumbing, building pipelines, cable ducts and ventilation pipes. Equipped with a precise length counter, a keyboard and a built-in 512Hz transmitter, it enables accurate distance measurement, make a text and precise positioning, helping users quickly detect and diagnose pipeline issues like blockages and damages with ease.

Specification:

Host system
Screen size	9-inch TFT Color Display
Display Resolution	800*480 px
DVR Resolution	720*576 px
Video Storage Format	AVI
Photo Format	JPEG
Storage medium	SD card 8GB, Up to 256GB & USB stick
Zoom in/out	8x
Language	Multiple
Camera System

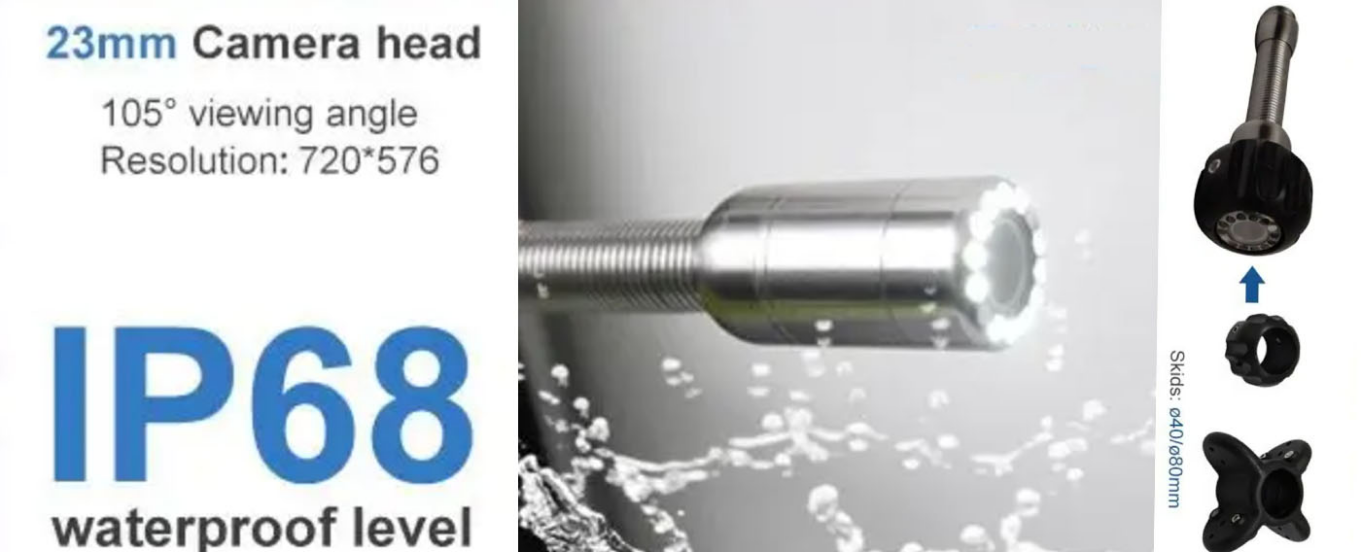

Diameter	ø23mm*134mm
Light	12 LEDs high light
Video resolution	720*576 px
View angle	105°
Skids	40/80 mm
Waterproof	IP68
Suitable pipe diameter	30-200mm

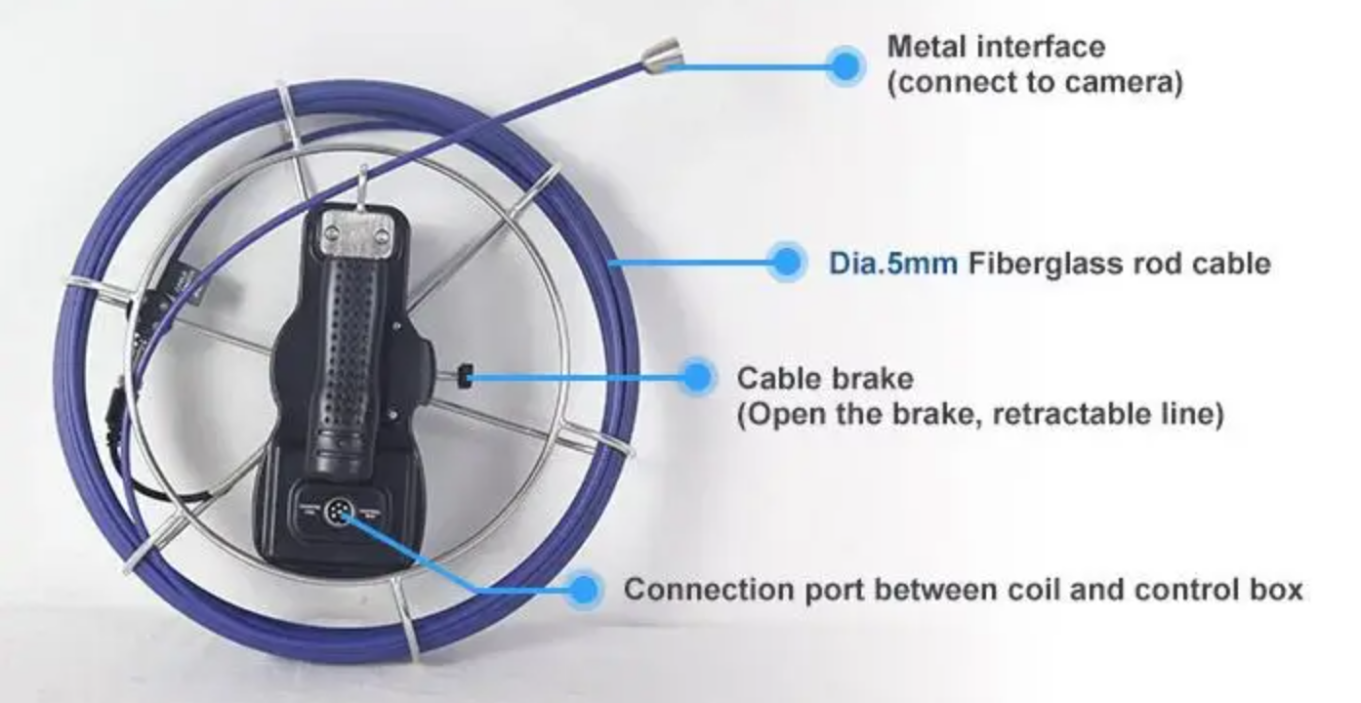

Cable reel
Material	Fiberglass
Cable size	ø330*110mm
Cable diameter	ø5mm
Length	30m-50m (Optional)
Power Supply
Battery	Built-in rechargeable Li-battery
Charge time	5 hours
Working time	7 hours
Package
Size	511(L)430(W)200(H)mm
Case material	Engineering plastic
Configuration

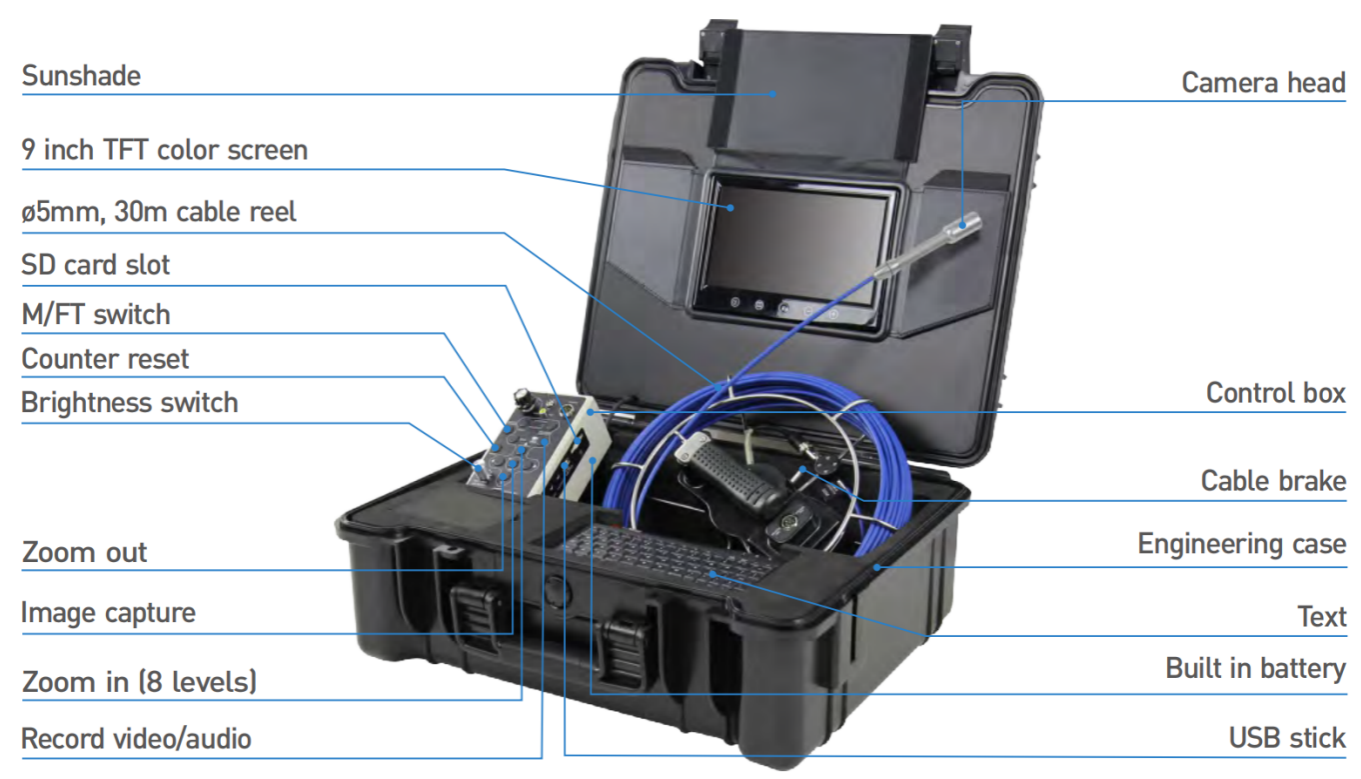

Standard configuration	9-inch display1 ,23mm Camera 1, Skid*2
	Cable reel 1, Li-battery1, Keyboard*1
	Connecting cable1, Charger1, Control box1, ABS Case1
