PT Series

Trace-view Handheld Pipeline Endoscope

7'' HD 23mm Sewer Inspection Camera

7 inch TFT color screen with sunshade
23mm HD camera, suitable pipe diameter 30-200mm

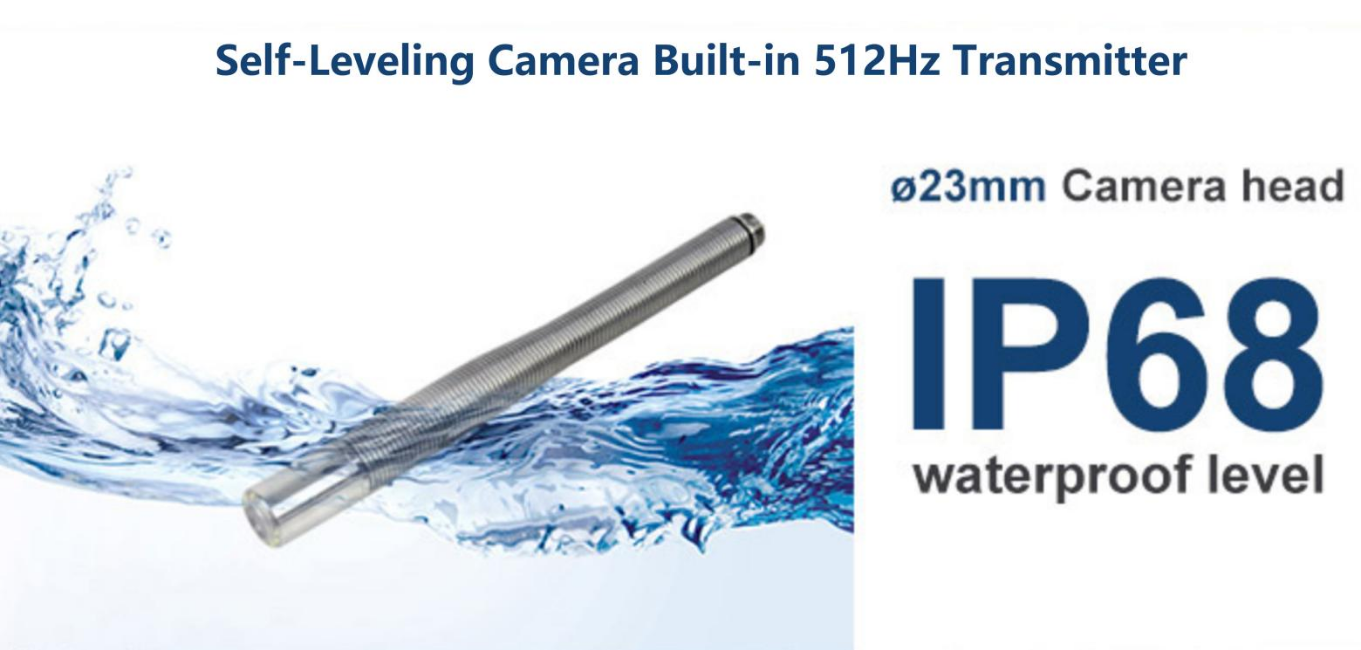

Build-in 512Hz transmitter & Self leveling
IP68 Waterproof Probe
One-click photo and video/audio recording
Zoom function 8X
Cable M/FT counter

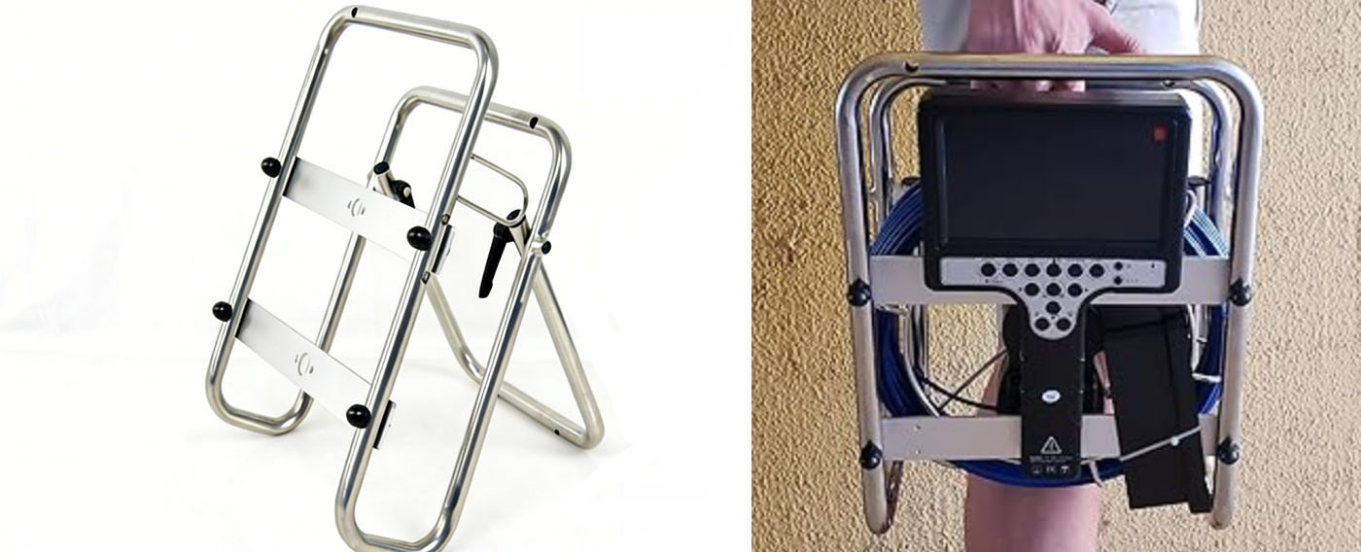

With stand rail

Quantity

Contact Now

add to cart

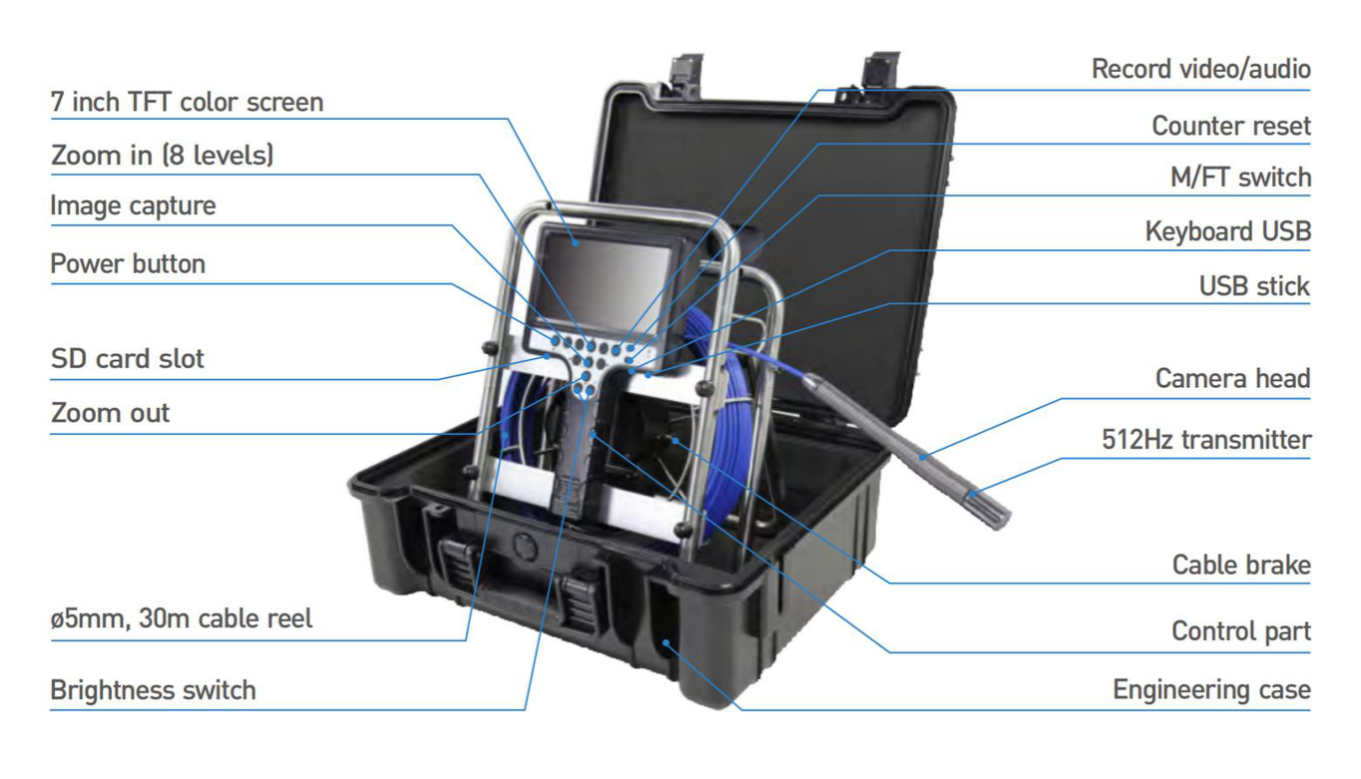

The PT Series is a"7-inch HD Trace-view Handheld Pipeline Endoscope". It features a 23mm HD self-leveling camera head keeps images horizontally oriented, integrated with a 512Hz transmitter, enables accurate probe positioning in complex pipelines. 12pcs high bright LEDs and a 7-inch TFT color screen for clear visual inspection. With stand rail and handheld design, easy to carry and operate. It supports one-touch video/audio recording and image capture, 8-level zoom, a cable M/FT counter for precise distance tracking, and 7-hour battery life, with an IP68 waterproof rating for wet environments, suitable for inspecting pipes range from 30 to 200mm.

Feature:

Application:

The PT Series 7-inch HD Trace-view Handheld Pipeline Endoscope is widely used for endoscopic inspection, dredging guidance, defect diagnosis of pipelines in municipal engineering, industrial factories, petrochemical facilities and air ducts, underground cable pipes, etc.. It’s a ideal tool for pipeline operation and maintenance teams and engineering inspectors, home inspectors, construction workers, plumbers, boat builders and other professionals, it helps quickly pinpoint blockages, cracks, corrosion and other hidden troubles, significantly improving the efficiency and accuracy of pipeline inspection work.

Specification:

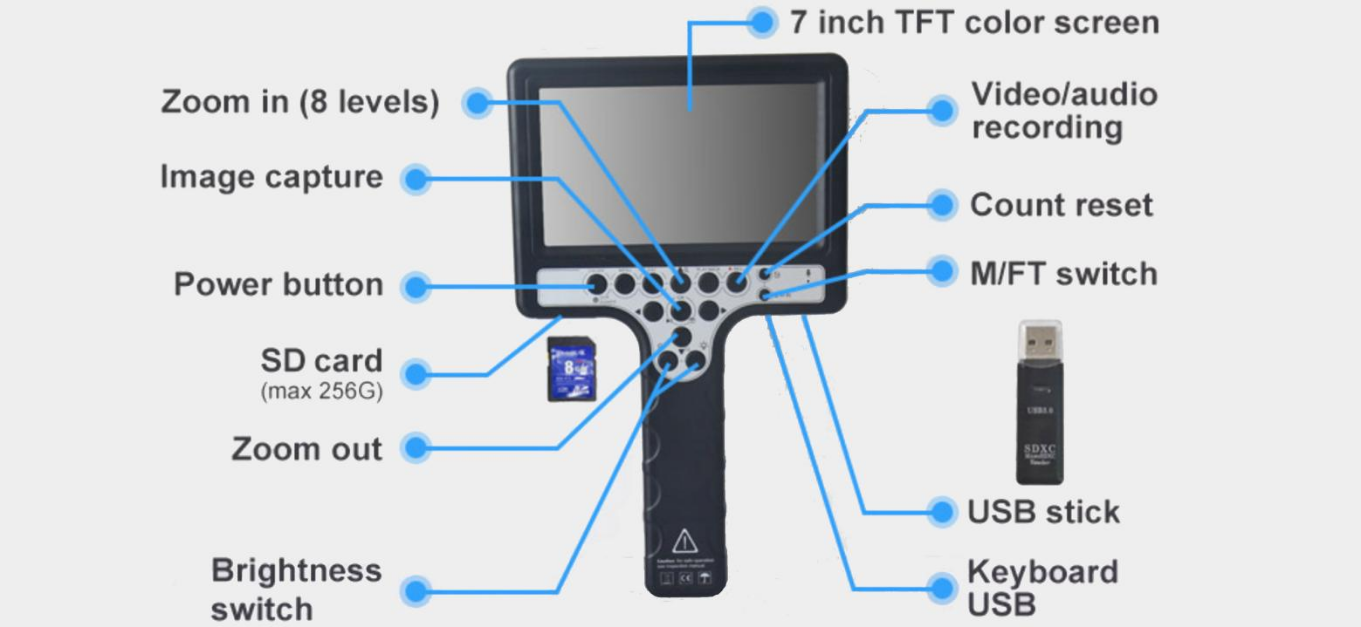

Host system
Screen size	7-inch TFT Color Display
Display Resolution	800*480 px
DVR Resolution	720*576 px
Video Storage Format	AVI
Photo Format	JPEG
Storage medium	SD card 8GB, Up to 256GB & USB stick
Zoom in/out	8x
Language	Multiple

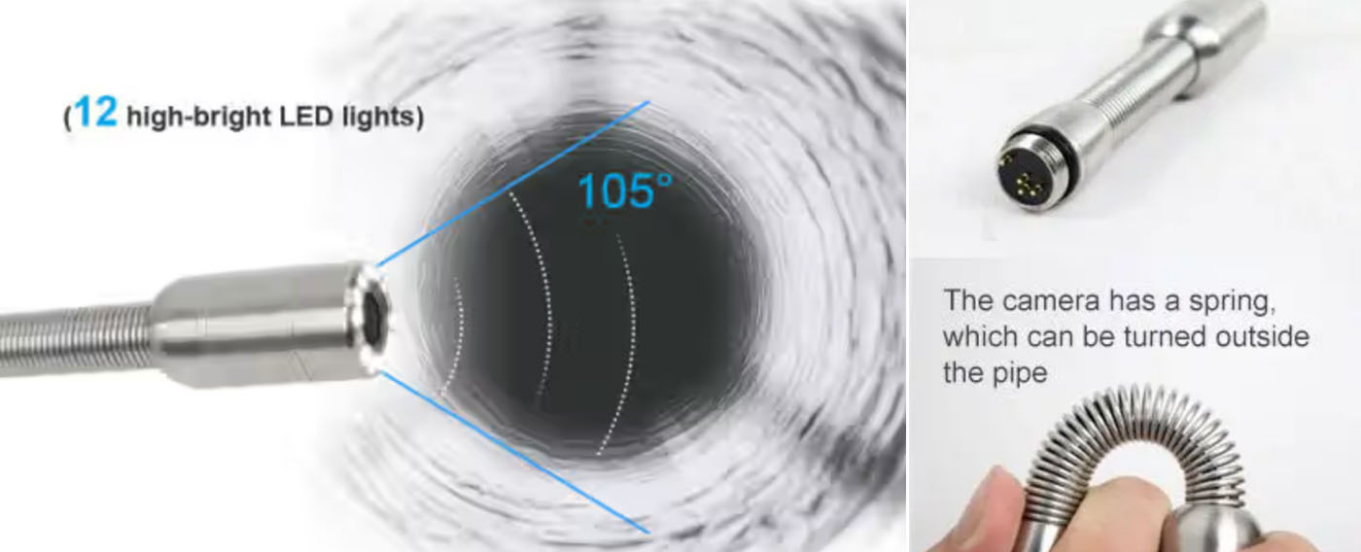

Camera System
Diameter	ø23mm*240mm
Light	12 LEDs high light
Video resolution	720*576 px
View angle	105°
Skids	40/80 mm
Waterproof	IP68
Suitable pipe diameter	30-200mm

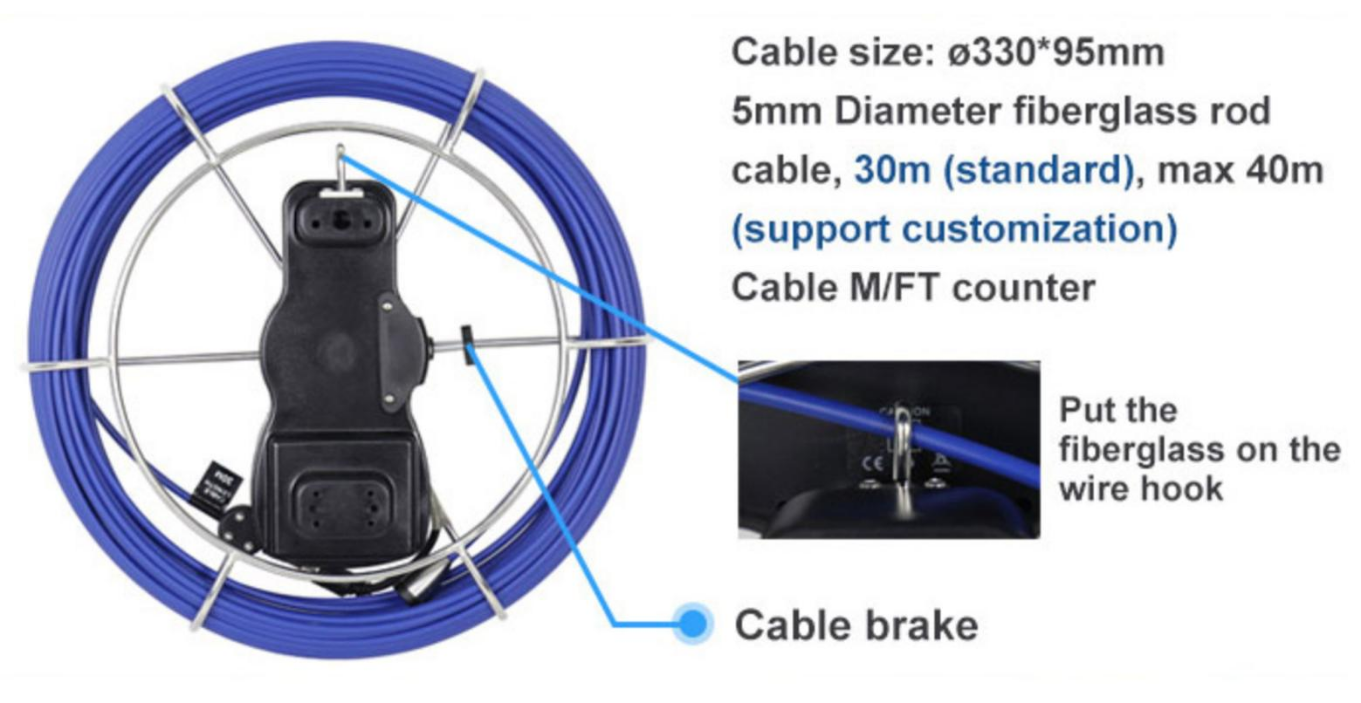

Cable reel
Material	Fiberglass
Cable size	ø330*95mm
Cable diameter	ø5mm
Length	30m-40m (Optional)
Power Supply
Battery	Built-in rechargeable Li-battery
Charge time	5 hours
Working time	7 hours
Package
Size	511(L)430(W)200(H)mm
Case material	Engineering plastic
Configuration
Standard configuration	7-inch display control1,23mm512Hz transmitter & Self leveling Camera 1,
	Cable reel 1, Li-battery1, Stand rail1, Skid2
	Charger1, ABS Case1
