PE Series

Easy-view Handheld Pipeline Endoscope

7'' HD 23mm Sewer Inspection Camera

7 inch TFT color screen with sunshade
23mm HD camera, suitable pipe diameter 30-200mm
IP68 Waterproof Probe
One-click photo and video/audio recording
Zoom function 8X
Cable M/FT counter

Quantity

Contact Now

add to cart

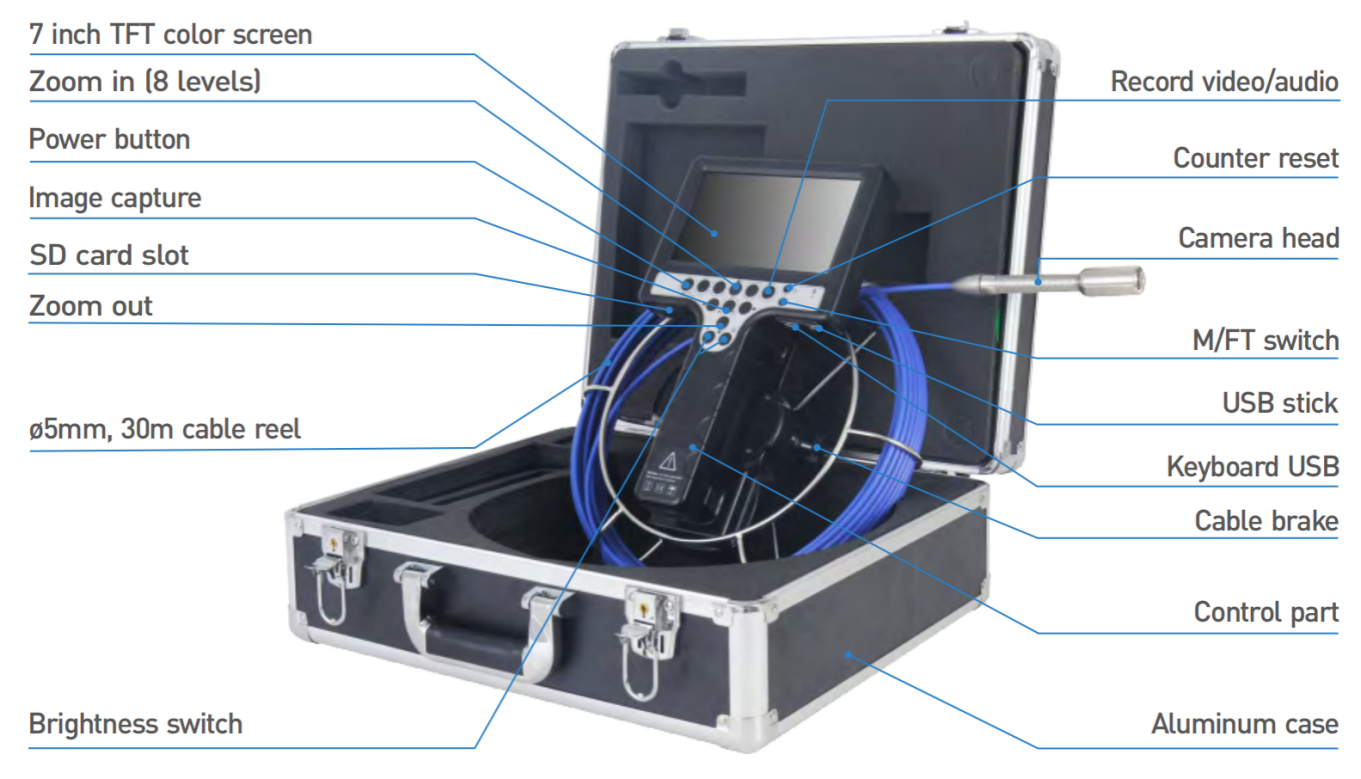

The PE Series is a"7-inch HD Easy-view Handheld Pipeline Endoscope". It features a 23mm HD camera head with 12pcs LEDs and wide view angle, paired with a handheld 7-inch TFT color screen for clear visual inspecting, with an IP68 waterproof rating ,the camera thrives in wet environments and suitable for inspecting pipes range from 30 to 200mm. Support one-touch video/audio recording & image capture, 8 levels of digital zoom, a built-in meter counter for precise distance tracking, and support for USB keyboards to add text annotations, plus 7-hour battery life for conscious work and optional removable camera heads are available to adapt to diverse inspection needs.

Feature:

Application:

The PE Series 7-inch HD Easy-view Handheld Pipeline Endoscope is widely used for checking municipal sewers, building HVAC ducts, industrial drains, underground cable conduits, and post-construction pipe integrity. Ideal for municipal crews, inspection specialists, facility managers, and HVAC engineers and other professionals, it cuts through blind spots and lets you quickly spot blockages, cracks, and corrosion, saving time and avoiding costly repairs.

Specification:

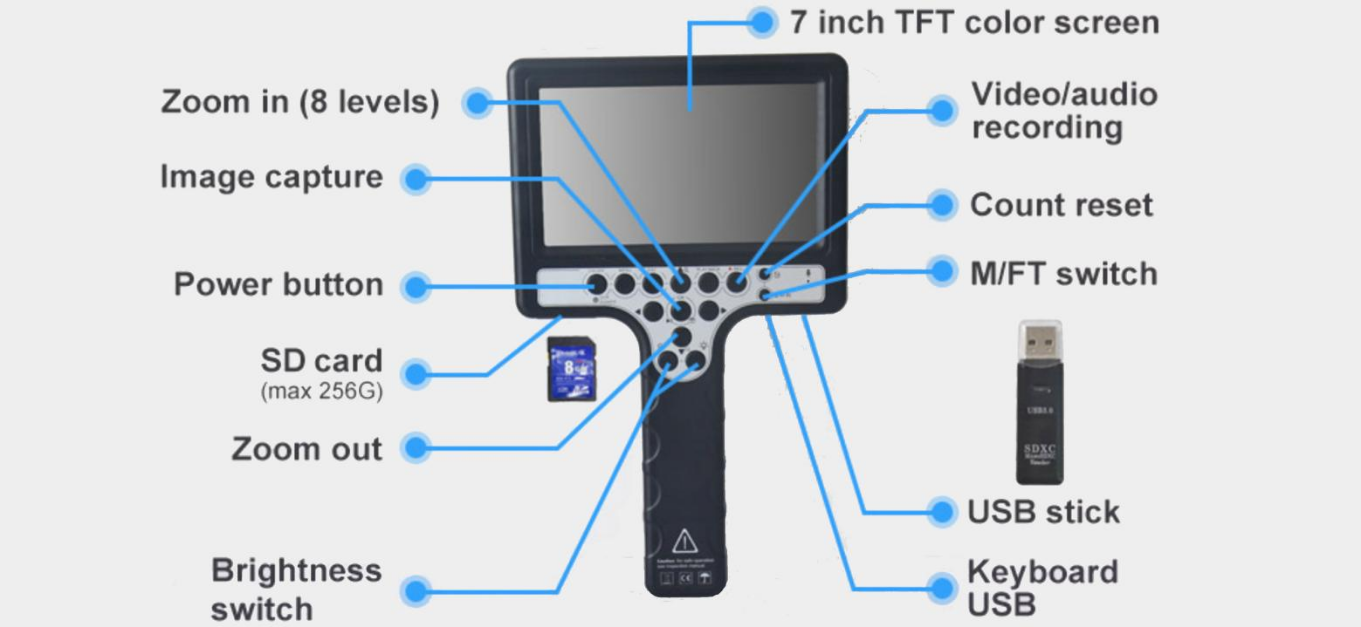

Host system
Screen size	7-inch TFT Color Display
Display Resolution	800*480 px
DVR Resolution	720*576 px
Video Storage Format	AVI
Photo Format	JPEG
Storage medium	SD card 8GB, Up to 256GB & USB stick
Zoom in/out	8x
Language	Multiple

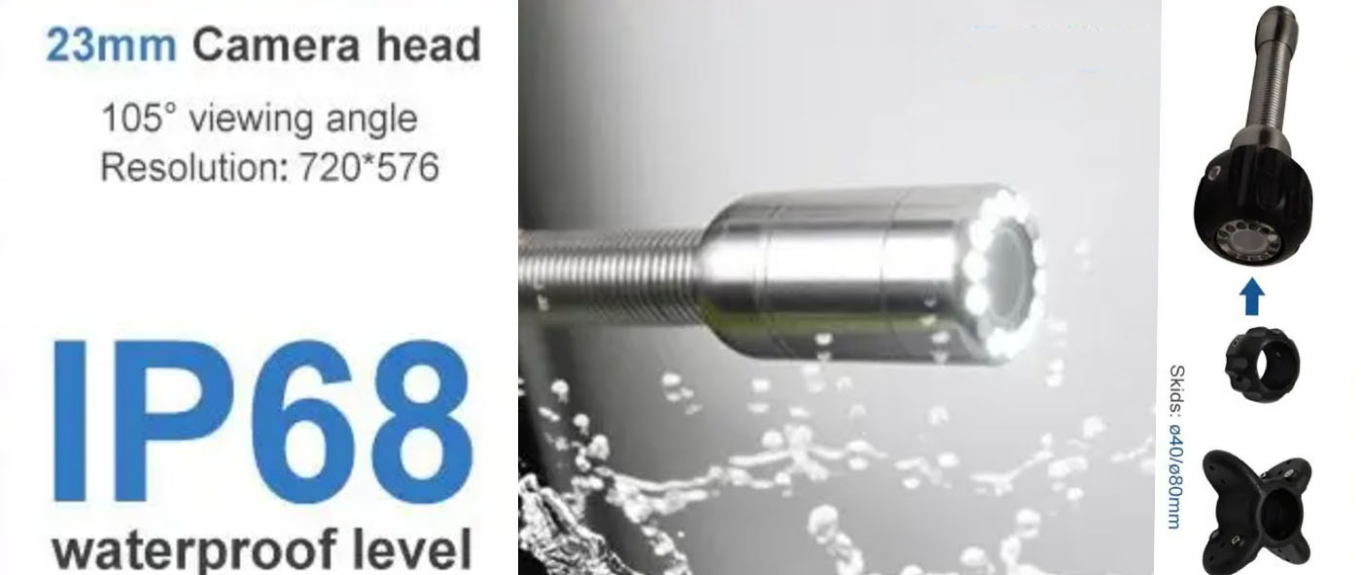

Camera System
Diameter	ø23mm*134mm

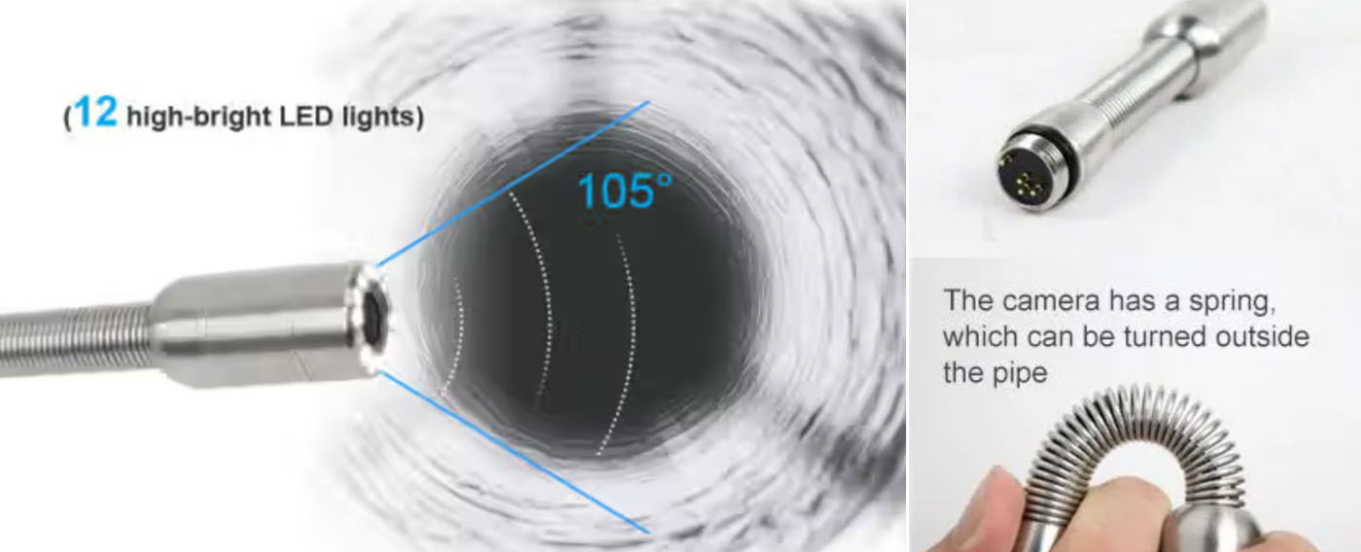

Light	12 LEDs high light
Video resolution	720*576 px
View angle	105°
Skids	40/80 mm
Waterproof	IP68
Suitable pipe diameter	30-200mm

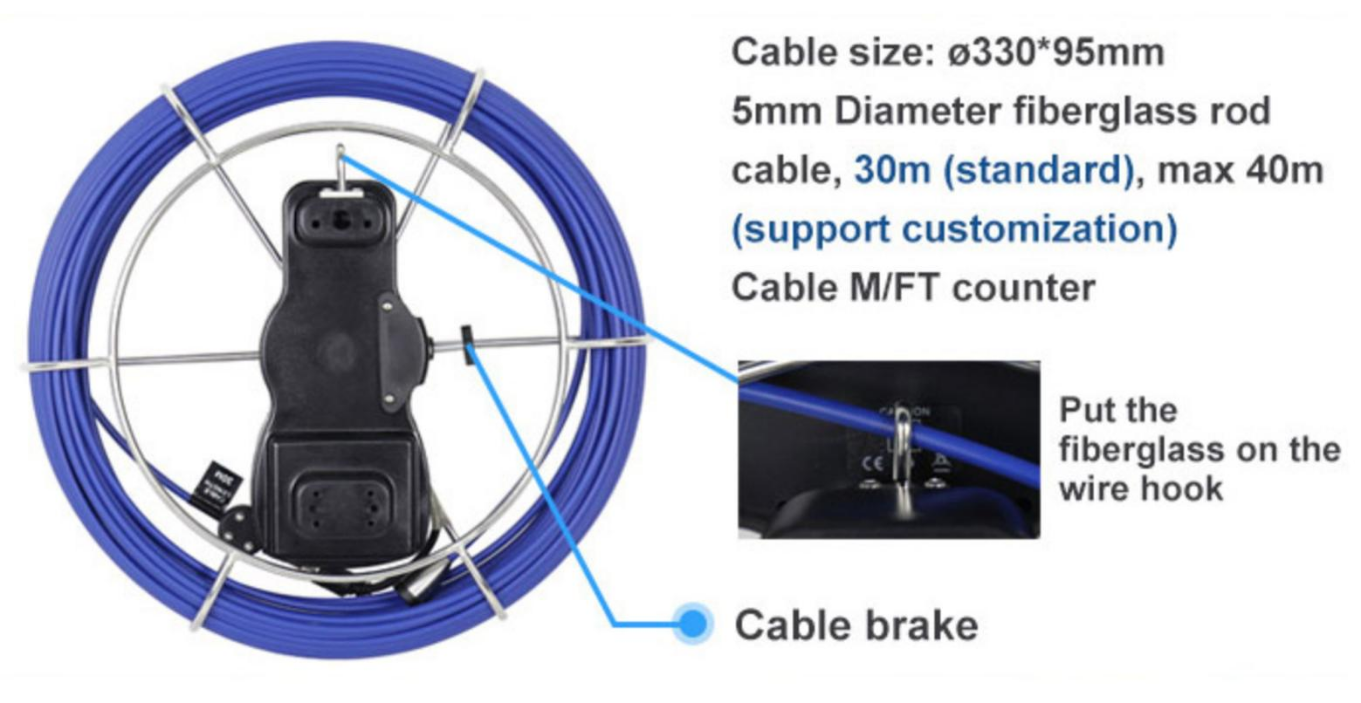

Cable reel
Material	Fiberglass
Cable size	ø330*95mm
Cable diameter	ø5mm
Length	30m-40m (Optional)
Power Supply
Battery	Built-in rechargeable Li-battery
Charge time	5 hours
Working time	7 hours
Package
Size	440(L)395(W)165(H)mm
Case material	Fire board and aluminum alloy
Configuration
Standard configuration	7-inch display control1,23mm Camera 1, Skid*2
	Cable reel 1, Li-battery1,
	Charger1, AL Case1
