PD Series

Dual-view Handheld Pipeline Endoscope

7'' HD 23mm Sewer Inspection Camera

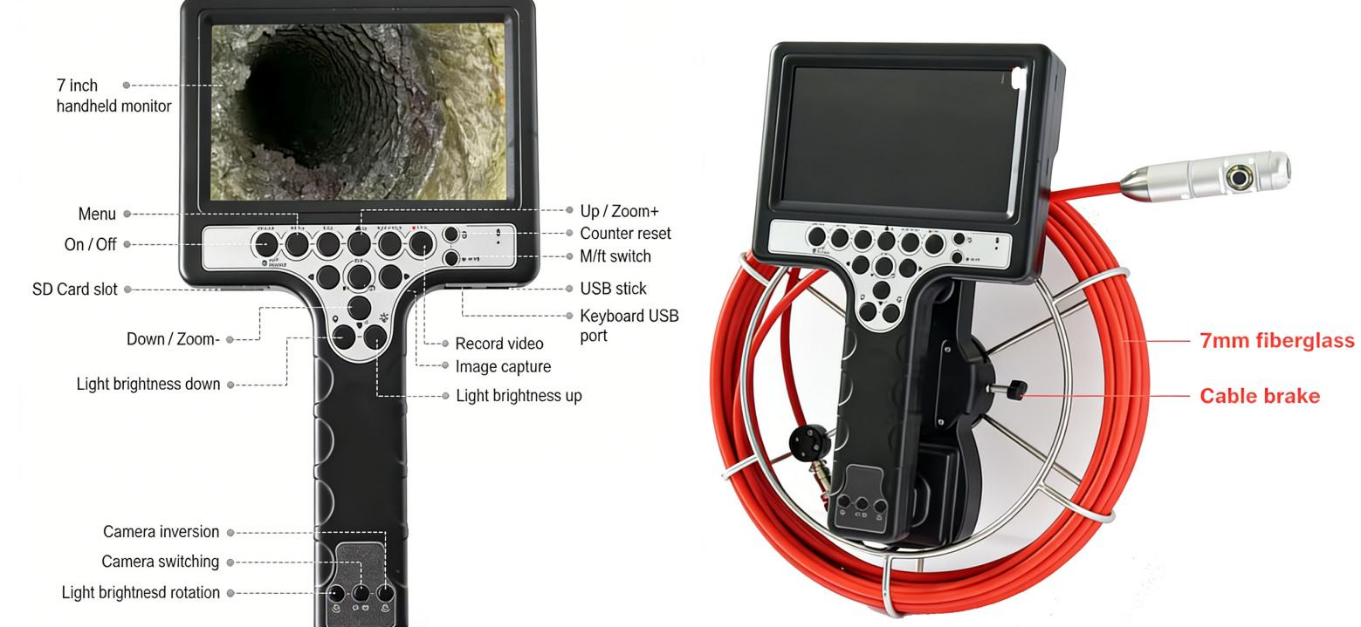

7 inch TFT color screen with sunshade
23mm HD camera, suitable pipe diameter 30-200mm

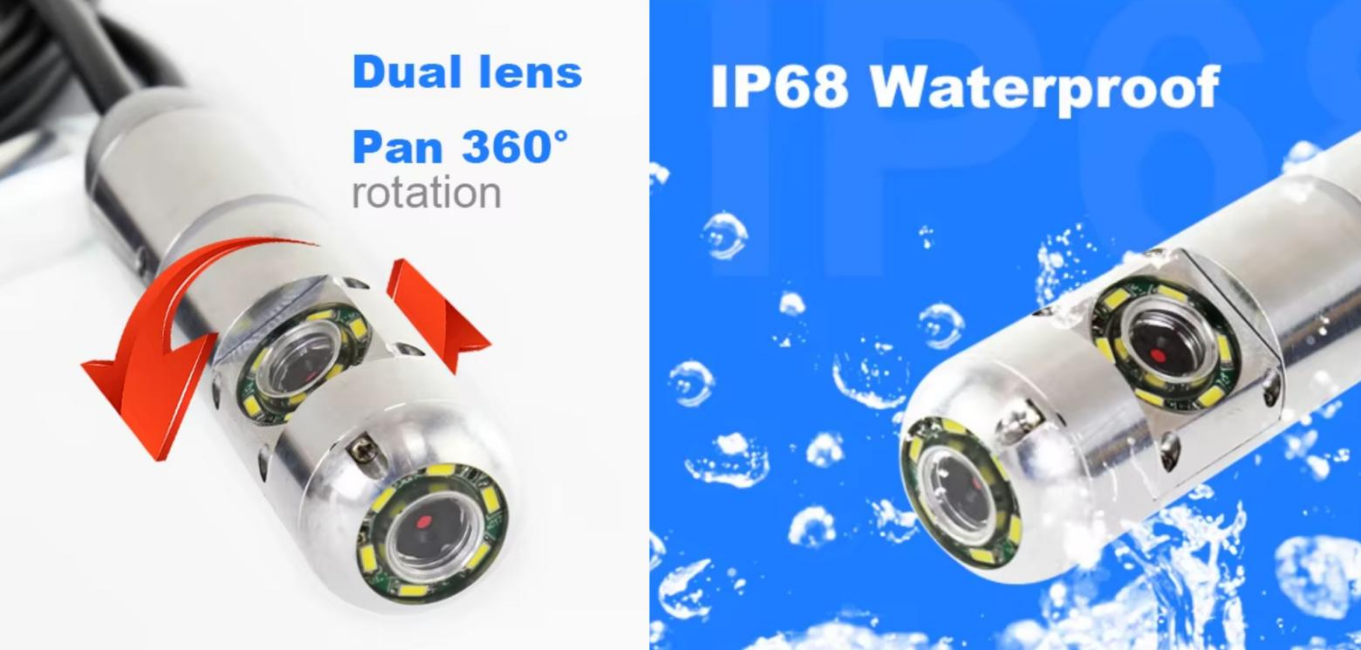

Front-Side Dual view lens, Pan 360°rotation
IP68 Waterproof Probe
One-click photo and video/audio recording
Zoom function 8X
Cable M/FT counter

Quantity

Contact Now

add to cart

The PD Series is a"7-inch HD Dual-view Handheld Pipeline Endoscope". It features a 1080P 23mm Front-Side Dual lens with high bright LEDs, 360-degree pan rotation and 85-degree viewing angle. Paired with a handheld 7-inch TFT color screen for clear visual inspecting, with an IP68 waterproof rating, the camera thrives in wet environments and suitable for inspecting pipes range from 30 to 200mm. Support one-touch video/audio recording & image capture, 8 levels of digital zoom, a built-in meter counter for precise distance tracking, and support for USB keyboards to add text annotations, plus 7-hour battery life for conscious work and optional removable heads for flexible inspections.

Feature:

Application:

The PD Series 7-inch HD Dual-view Handheld Pipeline Endoscope is widely used for municipal sewer and gas pipelines, residential AC and home water lines, industrial chemical and oil pipelines, as well as underwater and underground exploration. It is ideal for plumbers, electricians, municipal maintenance crews, HVAC technicians, underground survey specialists and other professionals. It helps you spot clogs, cracks, and corrosion without digging or dismantling pipes, enabling precise fault location, savings time and cost.

Specification:

Host system
Screen size	7-inch TFT Color Display
Display Resolution	1024*600 px
DVR Resolution	1280*720px
Video Storage Format	AVI
Photo Format	JPEG
Storage medium	SD card 8GB, Up to 256GB & USB stick
Zoom in/out	8x
Language	Multiple
Camera System

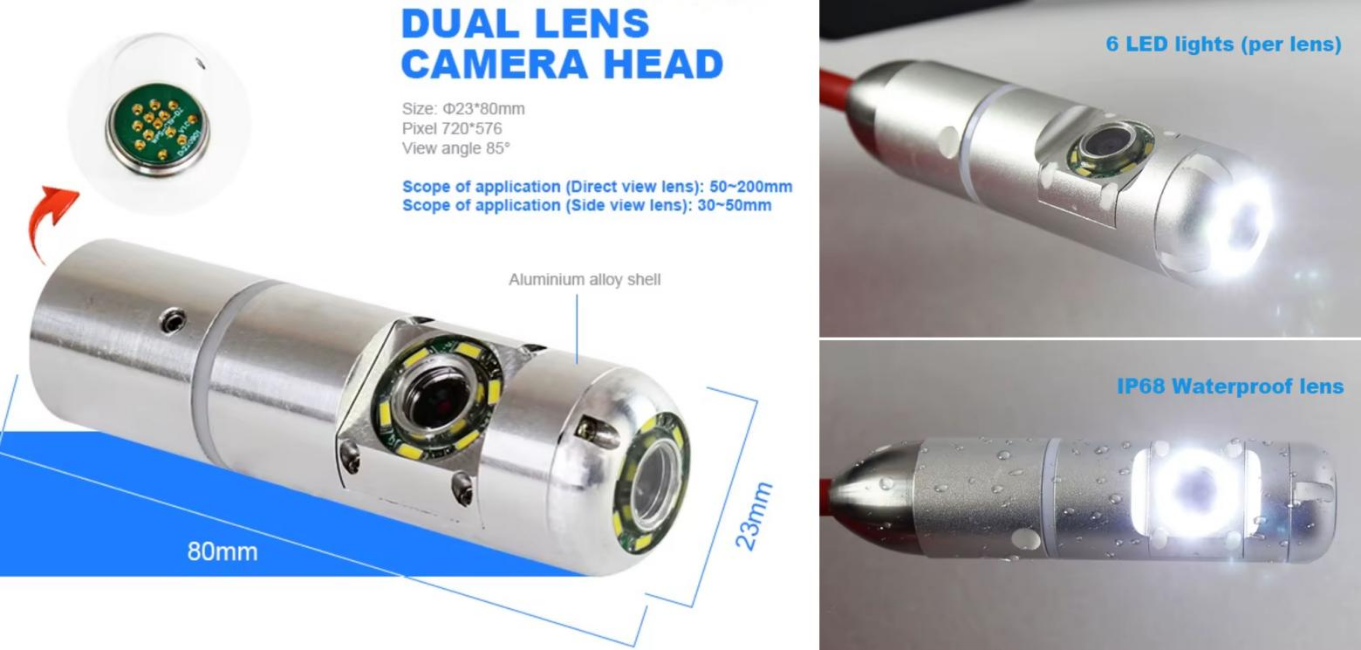

Diameter	ø23mm*80mm
Light	6 LEDs high light (x2)
Video resolution	1280*720px
View angle	85°
Rotation	Pan360°
Waterproof	IP68
Suitable pipe diameter	Direct View for 50-200mm, Side View for 30-50mm
Cable reel
Material	Fiberglass
Cable size	ø330*132mm
Cable diameter	Ø7mm
Length	20m
Power Supply
Battery	Built-in rechargeable Li-battery
Charge time	5 hours
Working time	7 hours
Package
Size	440(L)395(W)165(H)mm
Case material	Fire board and aluminum alloy

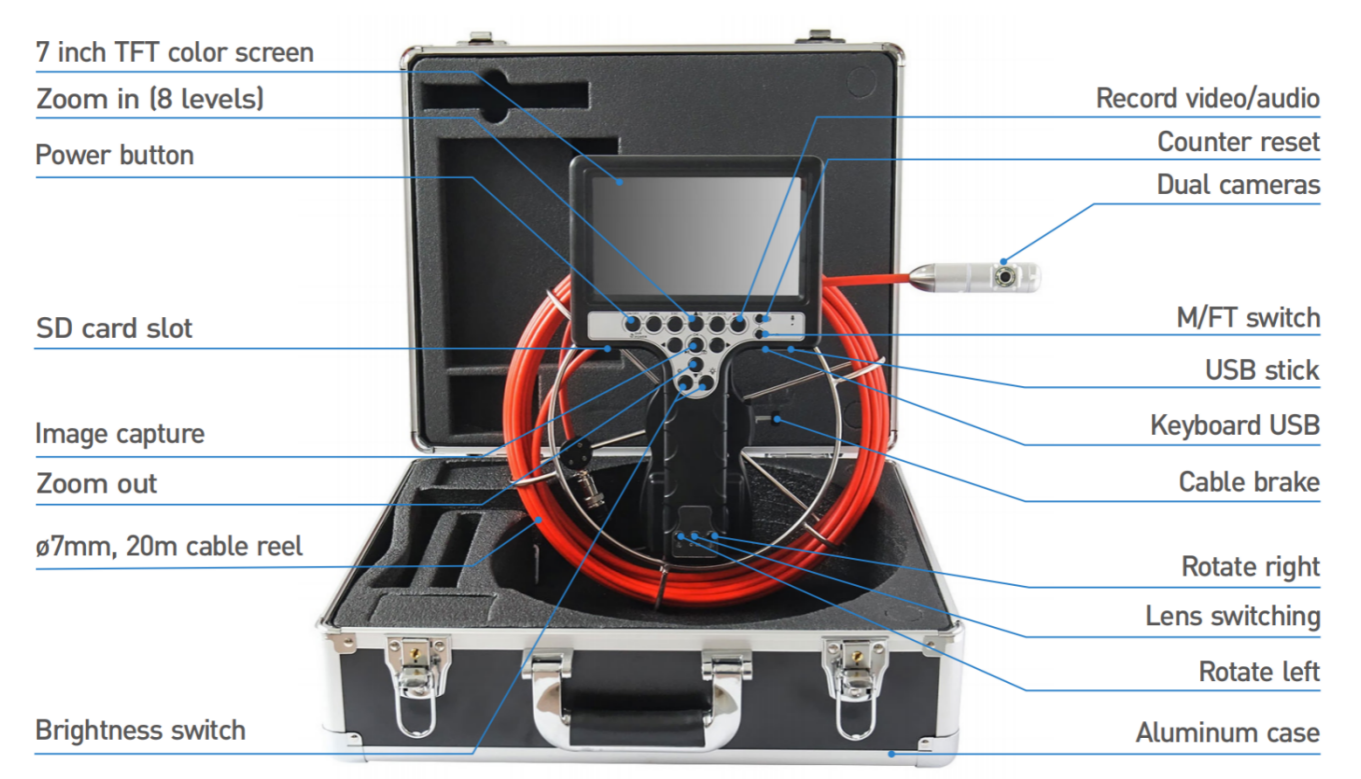

Configuration
Standard configuration	7-inch display control1,23mmDual-viewCamera 1,
	Cable reel 1, Li-battery1,
	Charger1, AL Case1
