PP Series

Precise FHD Pipeline Endoscope

10.1'' Self-leveling 25mm Sewer Inspection Camera

10.1 inch HD LCD screen
25mm FHD 1080P camera, suitable pipe diameter 30-200mm
Build-in 512Hz transmitter & self leveling
IP68 Waterproof Probe
One-click photo and video/audio recording
Zoom function 8X
Cable M/FT counter and Text

Quantity

Contact Now

add to cart

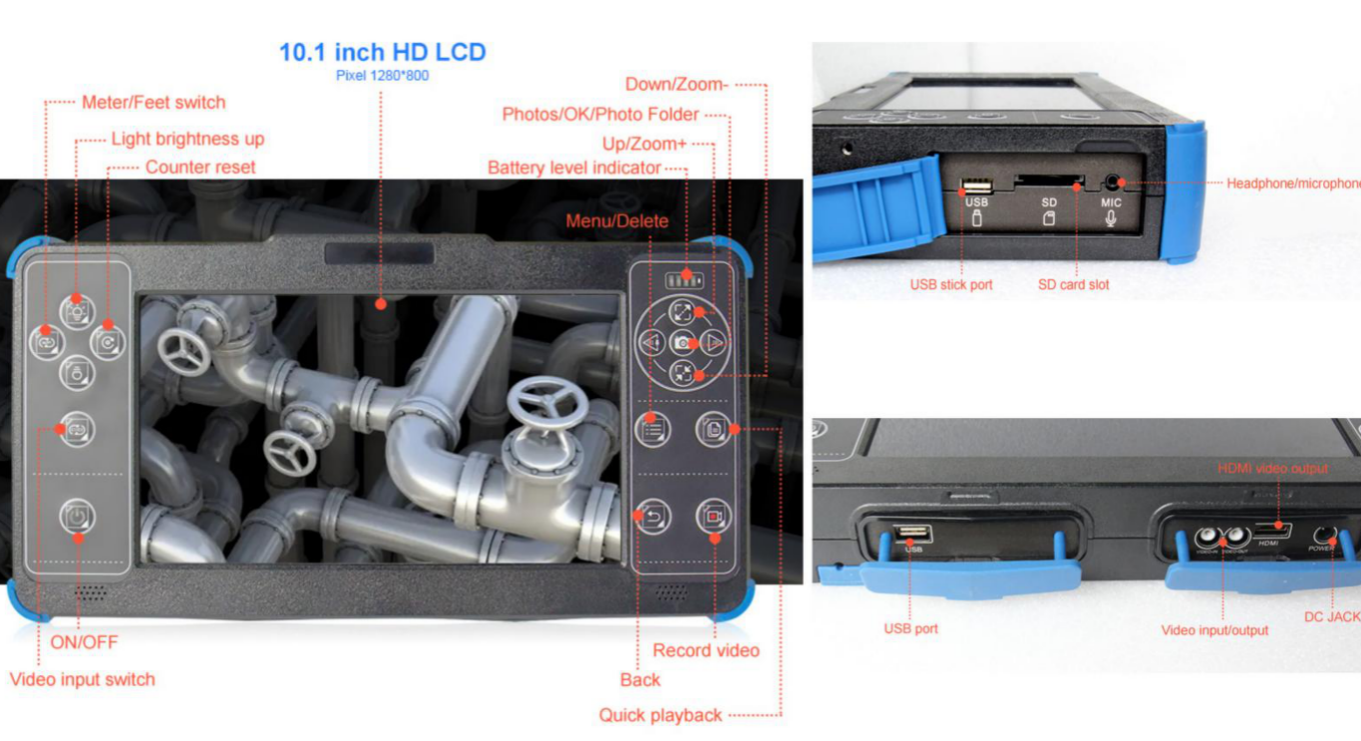

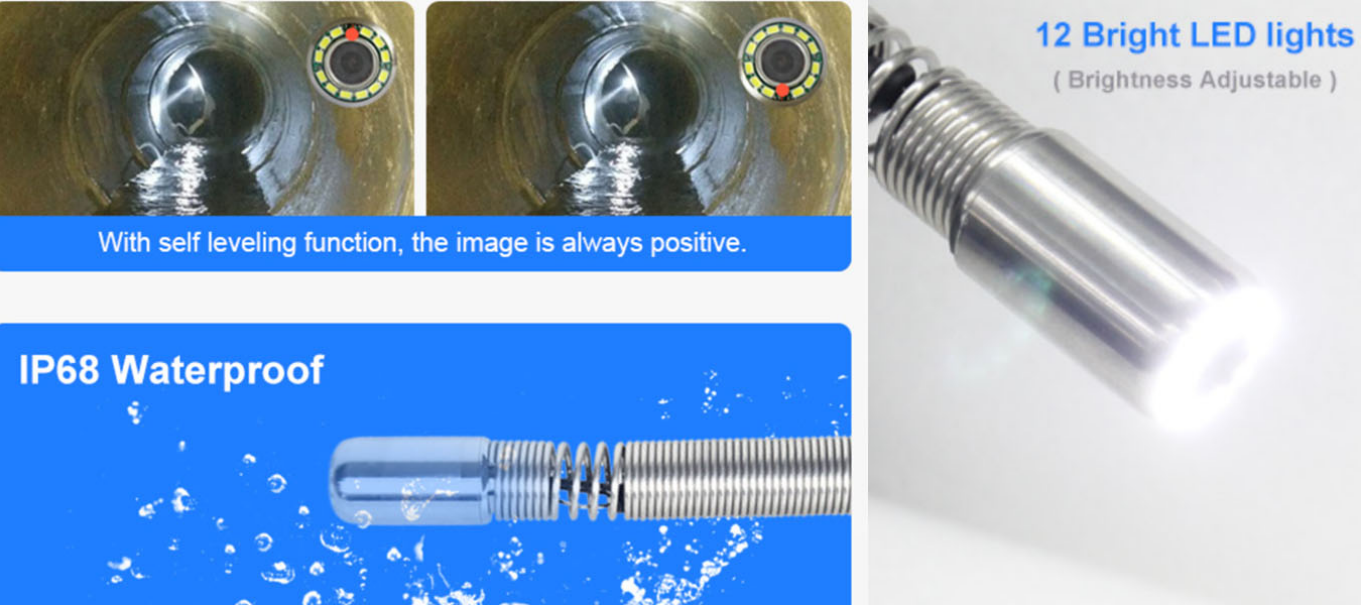

The PP Series is a"10.1-inch Precise FHD Pipeline Endoscope". It is equipped with a 25mm 1080P FHD camera featuring IP68 waterproof rating and 12 high-brightness LEDs. With a built-in self-leveling function and 512Hz transmitter, it ensures the captured images remain clear, sharp and properly oriented. Paired with a 10.1-inch HD large screen, the device supports connecting to external displays via RCA CVBS input or RCA video output interfaces. Suitable for 30-200mm pipes, it offers one-touch video/audio recording and image capture, 8 levels of digital zoom. The integrated keyboard and meter counter enable tracking distances and text annotation during operations. Additionally, it comes with a practical toolbox for storing accessories and a hidden cable reel that accommodates 6.5mm coaxial cable (standard length: 30 meters).

Feature:

Application:

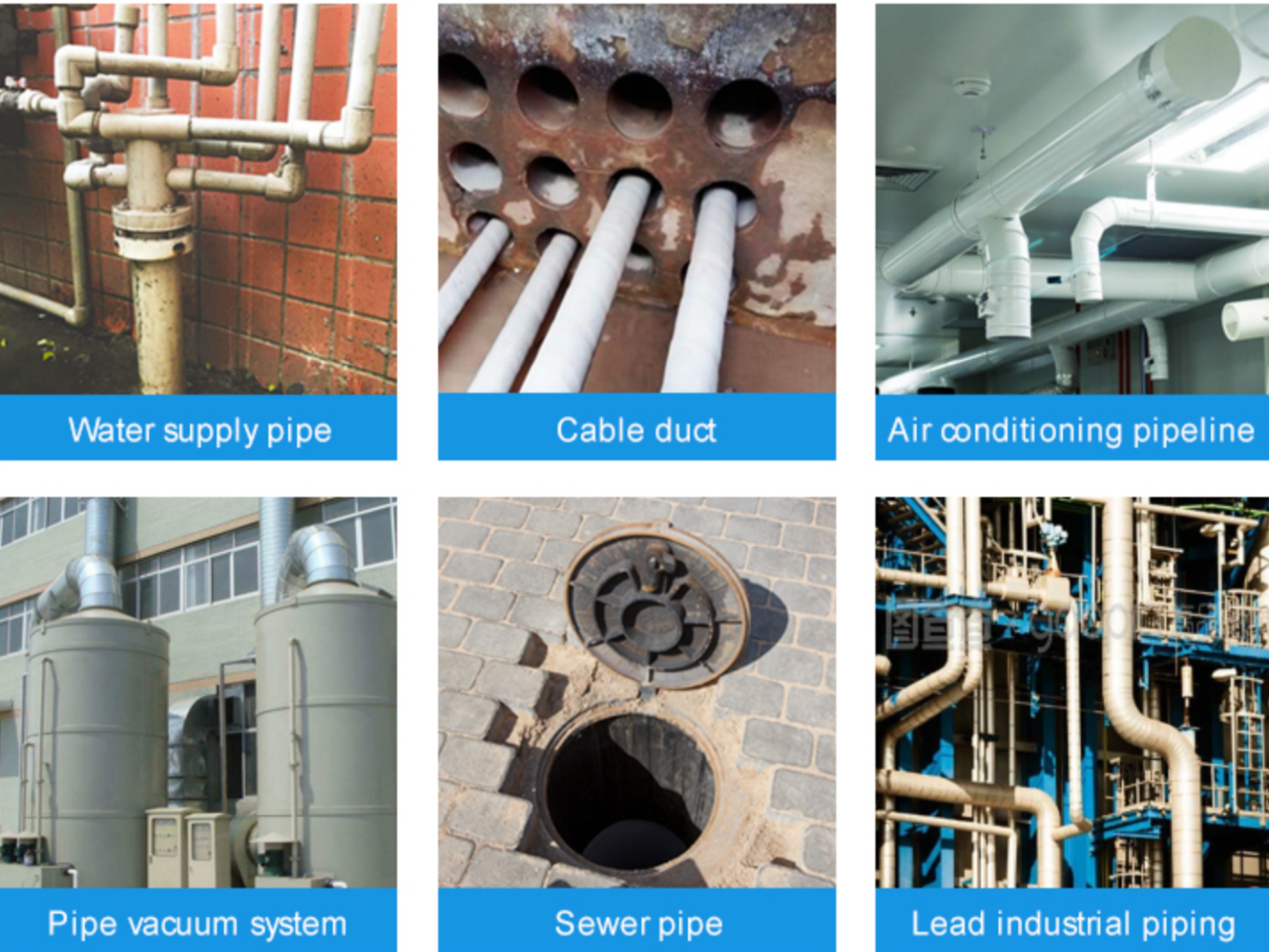

The PP Series 10.1-inch Precise FHD Pipeline Endoscope is widely used for water supply pipes & air conditioning pipelines, municipal cable & sewer ducts, and industrial piping etc.. It’s an ideal tool for plumbers, contractors, inspectors, engineers, municipal workers, and other professionals. It takes the hassle out of inspecting dim, damp pipeline interiors—you can spot faults like clogs, corrosion, and damage without tearing the pipes apart at all. Plus record, note, and track fault distances dead-on.

Specification:

Host system
Screen size	10.1-inchHD Display
Display Resolution	1200*800 px
Video Storage Format	AVI
Photo Format	JPEG
Storage medium	SD card 64GB, Up to 256GB & USB stick
Zoom in/out	8x
Input/Output Port	RCA CVBS input /RCA video output
Language	Multiple

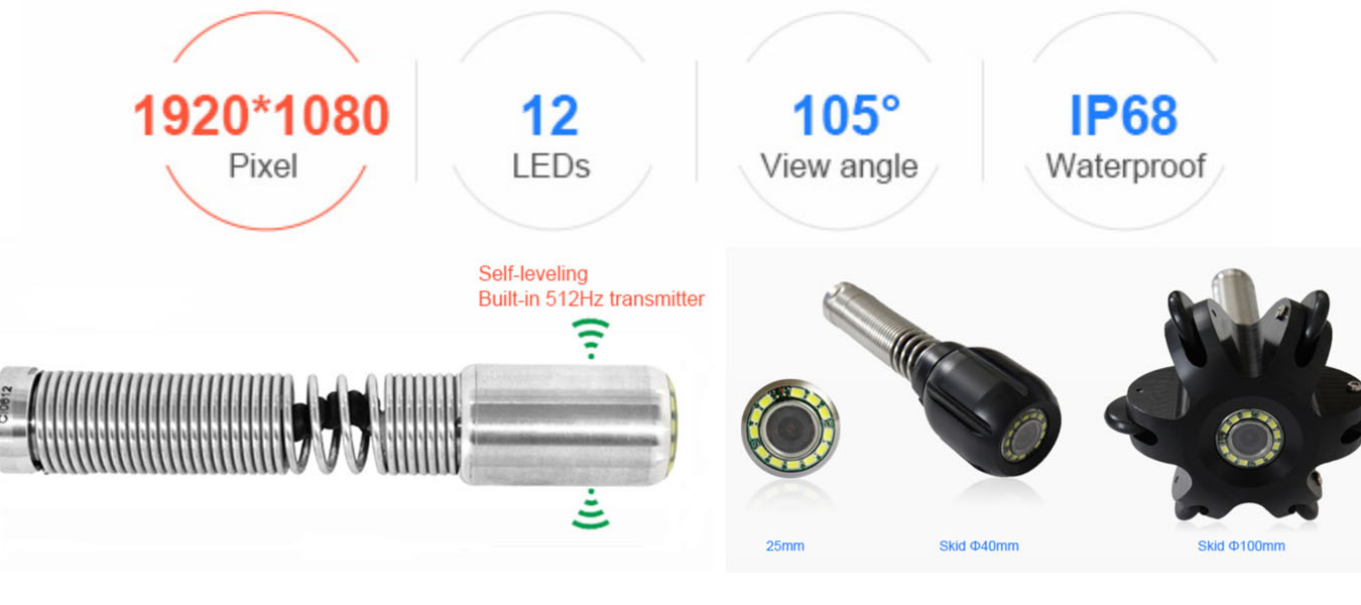

Camera System
Diameter	Ø25mm*135mm
Light	12 LEDs high light
Resolution	1920*1080 px
Sensor size	1/3'' CMOS
Lens material	Sapphire glass
View angle	105°
Skids	40/100mm
Waterproof	IP68
Suitable pipe diameter	30-200mm
Feature	Build-in 512Hz transmitter & self leveling

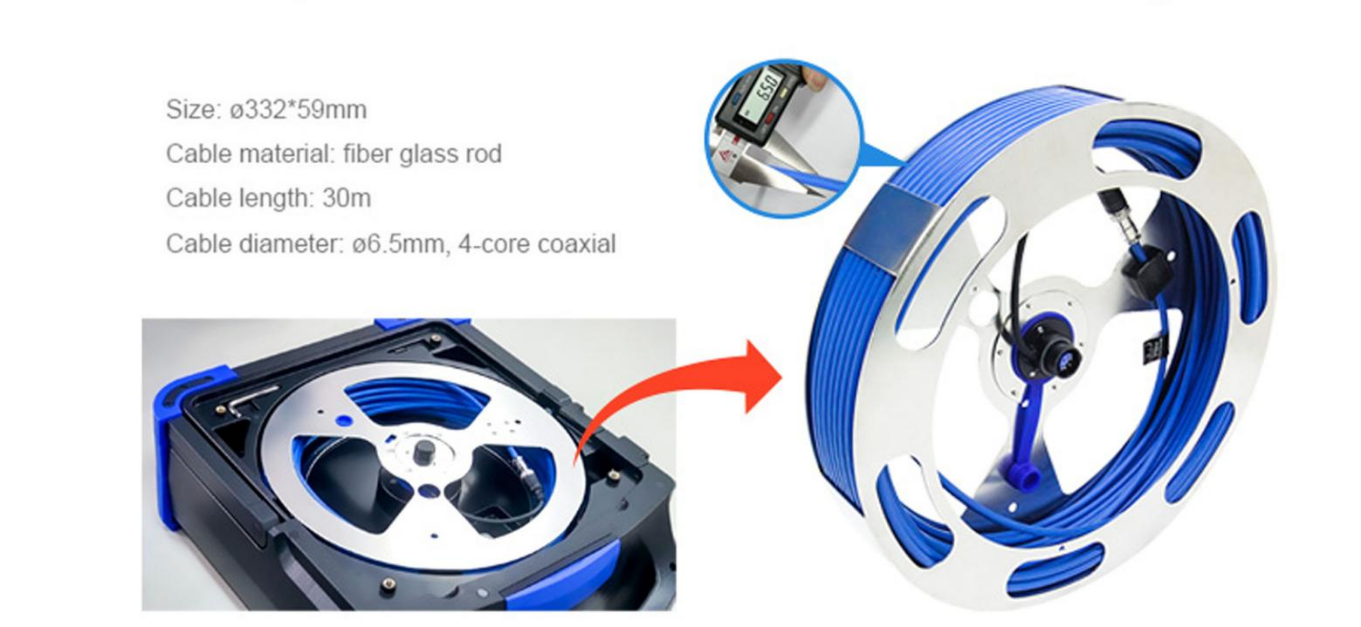

Cable reel
Material	Fiberglass
Cable size	332*59mm
Cable diameter	Ø6.5mm, 4 core coaxial
Length	30m
Power Supply
Battery	Built-in6000mAhrechargeable Li-battery
Input	AC100-240V 50/60HZ
Output	DC 13.5V/5A
Package
Size	511(L)430(W)200(H)mm
Case material	Engineering plastic
Configuration
Standard configuration	10.1-inchHDdisplay1 ,25mmFHD 512Hz transmitter&self leveling Camera 1
	Cable reel 1, Li-battery1, Keyboard1, Skid2
	Waterproof Ring2, Charger1, Toolbox*1
