TV Series

Under Vehicle Inspection Camera

Handheld Telescopic Pole 1080P HD

7 inch monitor with sunshade
1080P 5 Mega Pixel HD camera DVR system
Double HD digital Camera Head
Durable Omnidirectional wheels suit for all kinds roads
With 2m Telescopic Pole for all-purpose usage
5000mAh Li-battery, 8 hours working time

Quantity

Contact Now

add to cart

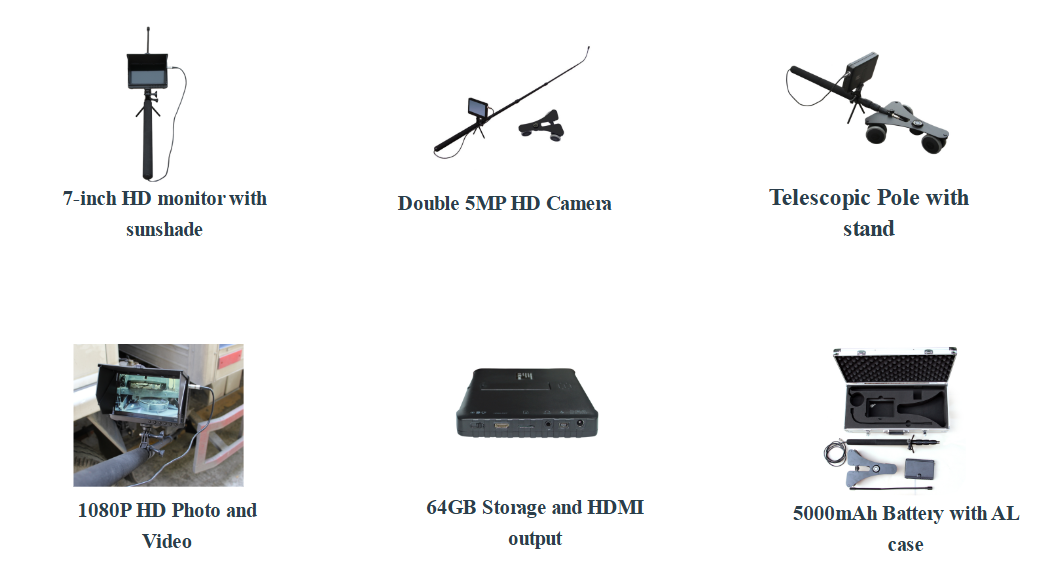

The TV Series is a multifunctional"Telescopic Pole Super HD Under Vehicle Inspection Camera System". It is a real 1080P Full HD vehicle checking camera blends top-tier clarity, durability, and versatility—perfect for mechanics, vehicle enthusiasts, or on-site checks. It features dual high-quality cameras to cover all inspection needs: the first (fitted with 16 bright LEDs) with universal wheel, the second is 19.5mm camera (with 6 bright LEDs) paired with a 0.25m flexible tube. With full HD 1080P resolution and 5MP sensor, it delivers crystal-clear visuals for precise problem identification. The 7-inch HD monitor (equipped with a sunshade) ensures easy viewing even in bright outdoor environments,2 meters telescopic pole camera, extend your hands and eyes to every narrow corner to help to take photo or make video easily. 5000mAh battery make your outdoor working more easy.

Feature:

Application:

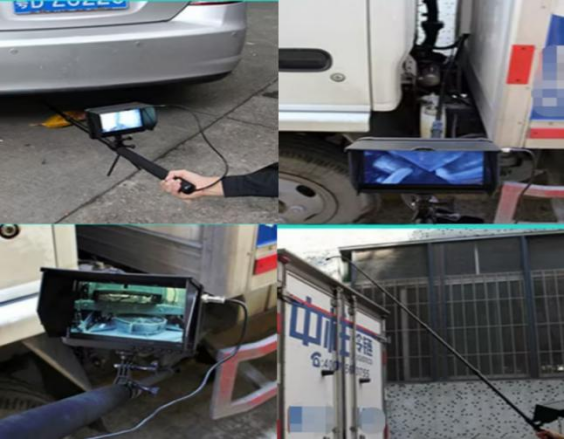

The TV Series Telescopic Pole HD Under Vehicle Inspection Camera can be widely used for inspecting passenger cars, trucks, buses, semi-trailers, and trailers. It is ideal for security personnel at large events and key facilities, logistics staff and drivers performing routine checks, as well as law enforcement and port inspectors. By delivering a clear, real-time view of the vehicle undercarriage, it eliminates blind spots, reduces the need to crawl under vehicles, and makes inspections faster, safer, and more efficient.

Specification:

Host system
Screen size	7-inch HD DVR Display
HD Video Output	HDMI:1920* 1080;1280*720
Video Storage Pixels (16:9)	HDMI:1920* 1080;1280*720
Video Compression Format	H.264
Video Storage Format	AVI
HD Digital Video Input Interface	FPD-LinkIII
Audio Frequency Range	20HZ-20KHz AAC
Audio Compression Format	AAC
Photo Format	JPG 3.15 Mega :3200(H)×1800(V)
Storage External SD card	TF card 1GB-64GB(Optional)
Operating System	Windows & Mac OS
Port	USB 2.0
Language	Multiple
Voltage	DC :7-24V USB DC:5V
Current(Monitor mode)	600 mA
Current(Video mode)	700 mA
Dimension	177mm x120mm x 20mm
Sunshade	One-press open sunshade
Weight	350 g
Camera System
Camera	Camera For Wheel	Camera For Soft metal tube
Diameter	37mm	19.5mm
Optical Element	1/2.5 CMOS Sensor SONY	1/3 CMOS Sensor
Optical Total Pixels	2.5 Mega :2000(H)×1121(V)	5.0 Mega:3200(H)×1800(V)
CMOS Sensor Size	5.6mm(H)×3.14mm(V)	5.07mm(H)×3.38mm(V)
Light	16 LEDs high light	6 LEDs high light
Sensitivity	0.08Lux/F1.2	0.2Lux/F1.2
Lens & View angle	3.6mm F1.2 (H )120 °	0.5mm F1.2 120 °
Dimension & Weight	37 x 46mm, 35g (only camera)	18 x 28mm, 10g (only camera)
Waterproof rating	IP68	IP68
Cable Material	5 Cores High-Speed Line	5 Cores High-Speed Line
Cable Diameter	3.5mm	3.5mm
Cable Length	2.7m	3m
With	Omni-directional wheel	25cm soft tube length
Telescopic Pole
Material	Al alloy pole
Constriction Length	58cm
Unfolded Length	188cm
Power Supply
AC Adapter	DC 12V 1A
Battery	Built-in 5000mAh Li-battery
Working time	8 hours
Operating Environment
Working temperature	-20~40（℃）
Configuration
Standard configuration	7-inch display1, Sunshade1, Camera with wheel*1
	Flexible Pole Camera1, 2m Telescopic Pole1, Li-battery *1,
	AC adapter1, Micro-HDMI cable1, USB cable1, AL Case1
