TS Series

Steady Telescopic Inspection Camera
Multifunctional Waterproof 1080P HD Digital

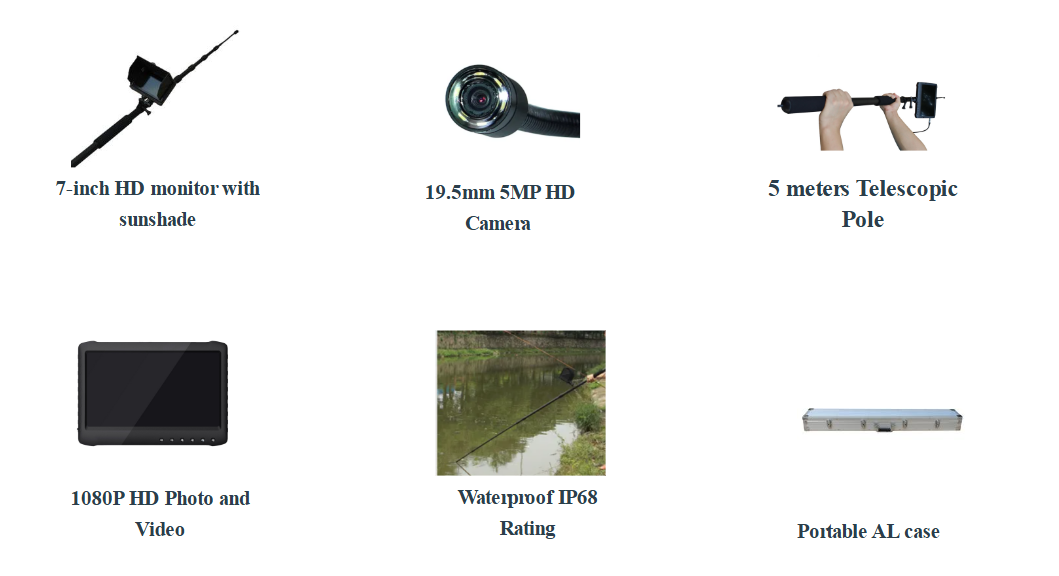

7 inch digital monitor with sunshade
1080P 5 Mega Pixel HD camera DVR system
19.5mm HD digital Camera Head
IP68 Waterproof , safety underwater use
With 5m Telescopic Pole for all-purpose usage
5000mAh Li-battery, 8 hours working time
Quantity
Contact Now
add to cart
The TS Series is a multifunctional"Telescopic Pole 1080P HD Waterproof Inspection Camera System". It features a 19.5mm camera (plus 6 bright LEDs) with HD resolution and 5MP sensor, it delivers crystal-clear visuals for precise problem identification. The 7-inch HD monitor (equipped with a sunshade) ensures easy viewing even in bright outdoor environments, its waterproof IP68 rate allows safe underwater use.5 meters telescopic pole can reaches tight spots like ceilings, ventilation ducts, and hull engine rooms, extend your hands and eyes to every narrow corner for easy photo or video capture. 5000mAh battery make your outdoor working more hassle-free.

Feature:


Application:

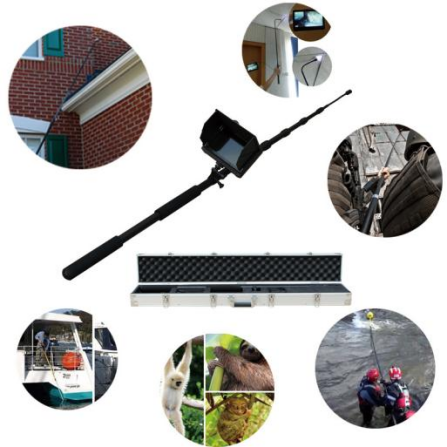

The TS Series Telescopic Pole 1080P HD Waterproof Inspection Camera can be widely used for checking building, roof and facility infrastructure, surveying birds and treetops, examining chimney and well, industrial tower maintenance, safety check on trains and aircraft and underwater inspections. It’s ideal for construction engineers, facility maintenance staff, ecologists, industrial operators, and transportation inspectors. It solves the problem of accessing hard-to-reach areas (high altitudes, narrow gaps, underground spaces) without manual entry into hazardous environments, using clear visuals and telescopic reach to accurately identify—making outdoor work safer, more efficient, and hassle-free.


Specification:

Host system

Screen size

7-inch HD Display

HD Video Output&Video Storage Pixels

HDMI:1920* 1080;1280*720

Video Compression Format

H.264

Video Storage Format

AVI

HD Digital Video Input Interface

FPD-LinkIII

Audio Frequency Range

20HZ-20KHzAAC

Audio Compression Format

AAC

Photo Format

JPG  5.0MP ：3200（H）×1800（V）

Storage External SD card

TF card 1GB-64GB(Optional)

Operating System

Windows & Mac OS

Port

USB 2.0/AV-OUT

Language

Multiple

Voltage

DC :7-24V USB DC:5V

Current(Monitor mode)

600 mA

Current(Video mode)

700 mA

Dimension

177mm x120mm x 20mm

Sunshade

One-press open sunshade

Weight

350 g

Camera System

Diameter

19.5mm

Optical Element

1/3 CMOS Sensor

Optical Total Pixels

5.0 Mega:3200(H)×1800(V)

CMOS Sensor Size

5.07mm(H)×3.38mm(V)

Light

6 LEDs high light

Sensitivity

0.2Lux/F1.2

Lens & View angle

0.5mm F1.2 120 °

Dimension

19.5 x 28mm

Waterproof rating

IP68

Cable Material

4 Cores High-Speed Line

Cable Diameter

4mm

Cable Length

6m

Telescopic Pole

Material

Al alloy pole

Constriction Length

1.13m

Unfolded Length

5m

Power Supply

AC Adapter

DC 12V 1A

Battery

Built-in 5000mAh Li-battery

Working time

8 hours

Configuration

Standard configuration

7-inch display*1, Sunshade*1,5m Telescopic Pole Camera*1

AC adapter*1, Micro-HDMI cable*1, USB cable*1, AL Case*1
