TR Series

Rotary Telescopic Inspection Camera

4K 360° Motorized Audio/Video Talkback Full HD

Detachable 7 inch 4K touchscreen monitor with sunshade
5 Mega Pixel Full HD camera DVR system
360 degree motorized PT camera
39mm Audio talkback camera head
With 5m Carbon Fiber Telescopic Pole for all-purpose usage
5000mAh Li-battery, 8 hours working time

Quantity

Contact Now

add to cart

The TR Series is a multifunctional"360-degree Rotating HD Audio-Video Telescopic Pole Inspection Camera". It is a high-tech tool designed for search and rescue, industrial inspections and security surveillance. It features a 39mm camera that supports 360-degree horizontal pan and 270-degree vertical tilt enhanced by 12 bright LED and a 5MP HD resolution sensor to deliver crystal-clear visuals even in dark, confined spaces. With a built-in Mic and speaker, it enables clear audio pickup and two-way communication. The 7-inch 4K touchscreen monitor supports HD recording, photo capture, playback and zoom, equipped with a sunshade ensures easy viewing even in bright outdoor environments. 5 meters carbon fiber telescopic pole, extend your hands and eyes to every narrow, hard-to-access corners, turning tight spaces into accessible areas. 5000mAh battery make your outdoor working more easy.

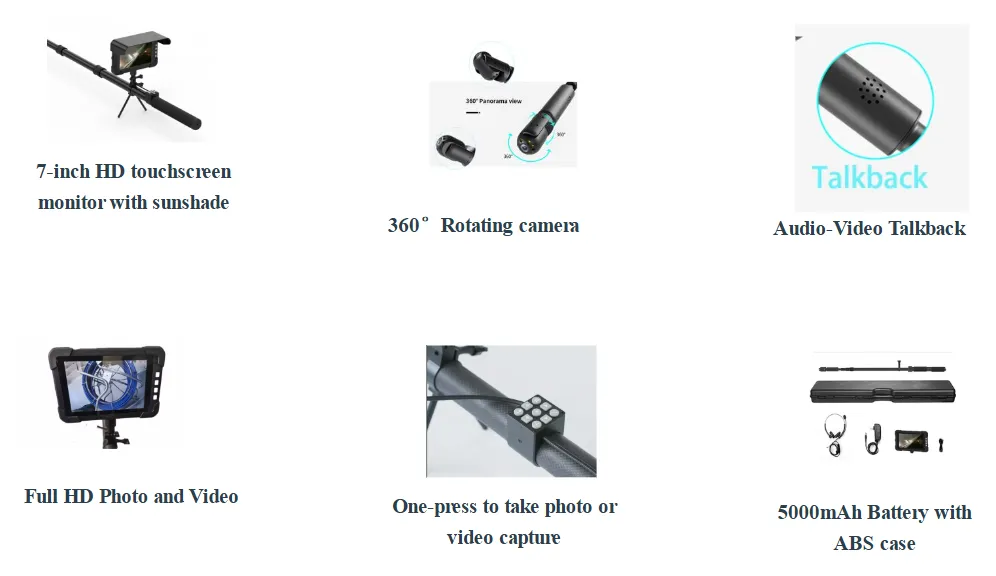

Feature:

Application:

The TR Series 360-degree Rotating HD Audio-Video Telescopic Pole Inspection Camera can be widely used in construction, industrial, nuclear energy, and oil sectors for tasks such as inspecting confined spaces, detecting survivors in earthquake debris, monitoring tanks and reservoirs, checking high-voltage electrical stations, and examining boat hulls, foundations, and port structures. It enables safe and efficient inspections, rescue operations, and equipment maintenance without requiring personnel to enter dangerous environments.

Specification:

Host system
Screen size	7-inch 4K Touchscreen Display
Display Resolution	1280*800 px
HD Video Output	HDMI:1080p
Recording Resolution	4K,2K,1080P,720P, CVBS
Video Compression Format	H.264
Video Storage Format	AVI
Photo Format	JPG 12MP,8MP,4MP,2MP
Storage External SD card	TF card 2GB-256GB(Optional)
Operating System	Windows & Mac OS
Port	USB 2.0
Language	Multiple
Voltage	DC :12V USB DC:5V
Dimension	210mm x140mm x 23mm
Sunshade	One-press open sunshade
Weight	600 g
Camera System
Diameter	39mm
Sensor	5MP CMOS 2560*1944 PX
Light	12 LEDs high light
Sensitivity	0.001Lux/F1.2
Lens & View angle	3.6mm F1.2 (H )141°view angle
Waterproof rating	IP65
PTZ rotate	Horizontal 360°Vertical 270°
Audio monitor range	300 sqm
MIC	48dB
Speaker Output	1W
Telescopic Pole
Material	Carbon Fiber
Constriction Length	138cm
Unfolded Length	Within 515cm
Weight	1.76kg
Power Supply
AC Adapter	DC 12V 2.5A
Battery	Built-in 5000mAh Li-battery
Working time	8 hours
Operating Environment
Working temperature	-20~40（℃）
Configuration
Standard configuration	7-inch display1, Sunshade1, 360°Rotating TalkbackCamera *1
	5m Carbon Fiber Telescopic Pole 1, Li-battery 1,
	AC adapter1, USB cable1, ABS Case*1
