RH Series

Handheld Rigid Rod Borescope

4.3'' Display 1080P HD

4.3 inch HD display
1Mega Pixel 1080P HD camera
1.6mm-8mm probe diameter
IP68 Waterproof Probe
One-click photo/Video capture
5000mAh Rechargeable Li-battery
Detachable Screen and rigid rod

Quantity

Contact Now

add to cart

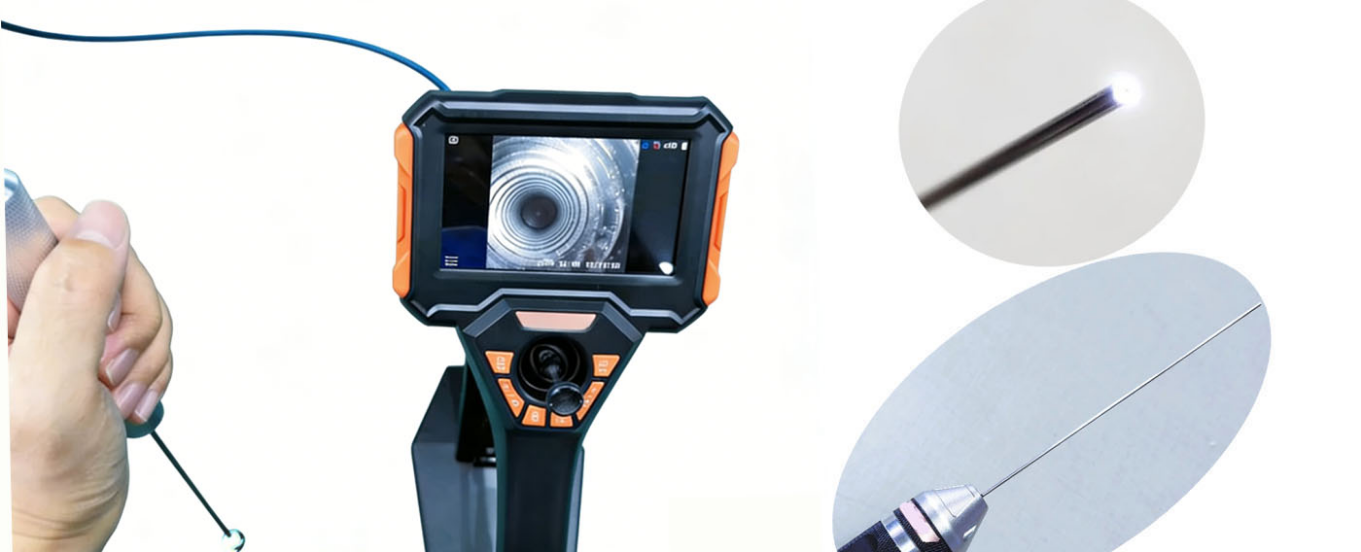

The RH Series is a"4.3-inch Handheld Rigid Rod HD Borescope". It features a 1080P HD camera with high bright Adjustable LED for ultra-clear imaging. It offers a wide range of probe diameters from 1.6mm to 8mm, paired with unlimited detection range, identify hidden defects and flaws in hard-to-reach areas effortlessly. Equipped with a 4.3-inch HD display, joystick control, one-click photo/video capture. IP68 Waterproof rate makes safe use in wet environments and a 5000mAh battery supports continuous operation.

Feature:

Application:

The RH Series 4.3-inch Handheld Rigid Rod HD Borescope flexibly adapts to on-site industrial manufacturing process inspection. It accurately detects hidden risks in precision casting components and efficiently completes internal quality checks of medical devices, facilitating rapid quality control across fields.

Specification:

Host system
Screen size	4.3-inch HD solar display
Display resolution	800×480
Zoom In/Out	Support real-time 4X zooming in, image playback 8X zooming in

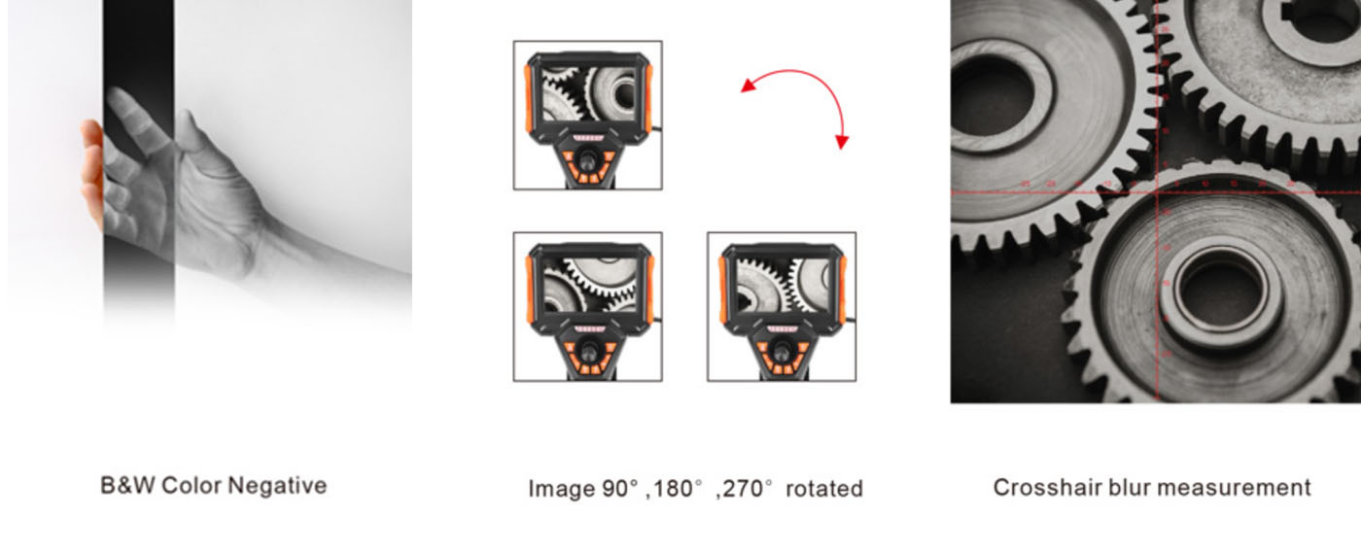

Image Effect	B&W Color Negative
Image Format	BMP/JPEG
Video Format	MP4
Image Rotation	Rotation by 0°, 90°, 180°, 270°
Image Preview	Look back using the list
Auxiliary measurement	Cross cursor reference line
File Storage	Standard TF card: 32G
Output Port	Mini HDMI
Language	Multiple
Host size	295mm136mm60mm
Host weight	≤0.45Kg (including battery)
Function	Photo/Video/Zoom/Auxiliary measuring
Camera System
Diameter	3.9mm/6mm/8mm
Camera pixel	1.0 Mega
Light	LED
Illuminance	18000Lux
FOV	120°
DOF	3-10/5-30/8-100mm
Probe tip length	15cm
Hand Handle length	18cm
Power Supply
Battery Charging	DC5V 2A, 3.7V
Battery	Built-in 5000mAh Li-battery
Working time	5 hours
Operating environment
Host operating temperature	-10℃-50℃
Probe operating temperature	-20-80℃
Storage temperature	-20-60 ℃
Relative humidity	15-90%
Water/Dust Proof	Probe/tube: IP68; Host: IP54
Configuration
Standard configuration	4.3-inch display Rigid Rod HD Borescope*1
Standard configuration	Charging cable1, Li-battery 1, Charger1, Toolbox1
