RD Series

Desktop Rigid Rod Borescope
10''/15'' Touchscreen 1080P HD

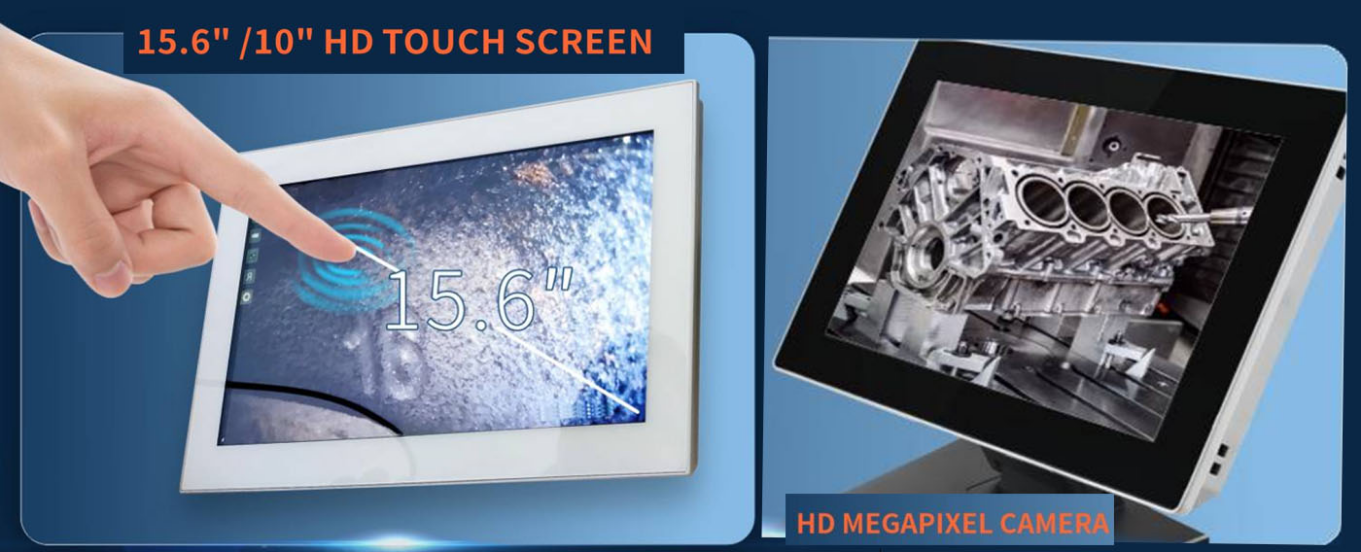

10/15 inch HD touchscreen
1Mega Pixel 1080P HD camera
1.6mm-8mm probe diameter
IP68 Waterproof Probe
Built-in mini HDMI/USB port
Quantity
Contact Now
add to cart

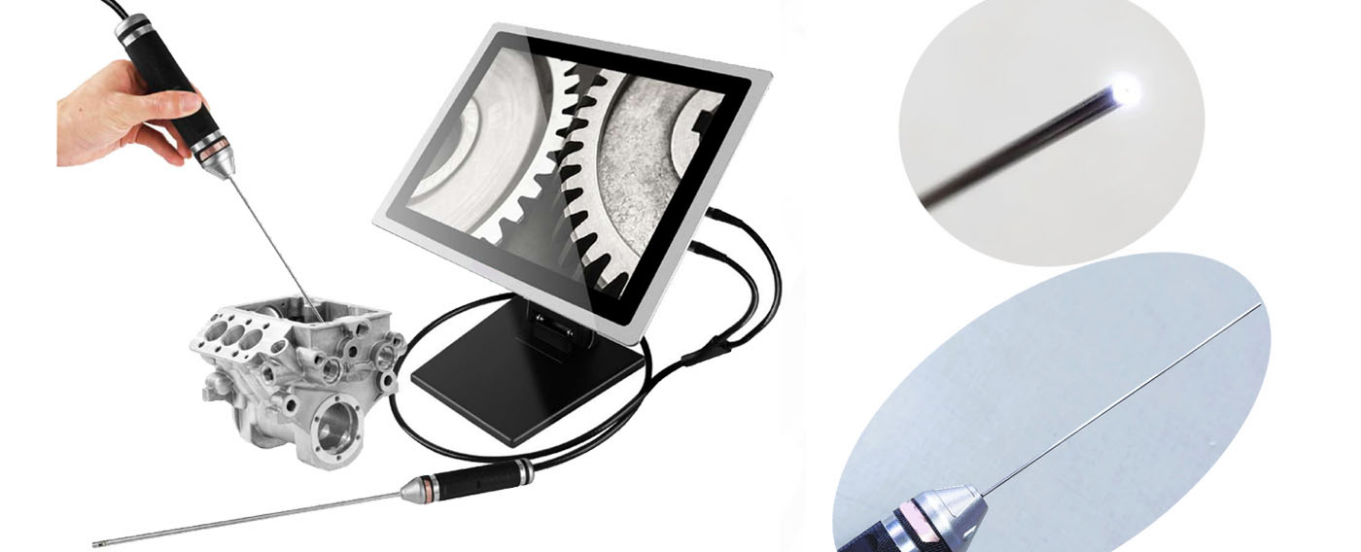

The RD Series is a"10/15-inch Desktop Rigid Rod HD Borescope". It features a 1080P HD camera with high bright LED for ultra-clear imaging. It offers a wide range of probe diameters from 1.6mm to 8mm, paired with unlimited detection range, identify hidden defects and flaws in hard-to-reach areas effortlessly. Equipped with a 10/15-inch HD touchscreen, built-in mini HDMI and USB port, allowing seamless image and video sharing on larger external monitors. Boasting an IP68 waterproof rating, it delivers exceptional durability and reliable performance even in harsh working environments.

Feature:



Application:
The RD Series 10/15-inch Desktop Rigid Rod HD Borescope is perfect for straight-channel or open-space inspection. It serves quality inspectors and maintenance engineers in auto manufacturing and quality control, enabling non-destructive detection of cylinder wear, mold hole precision and casting cleanliness without equipment disassembly


Specification:

Host system

Screen size

10/15-inch HD touchscreen

Output Port

Mini HDMI/USB

Language

Multiple

Compatibility

Interchangeable monitor and tube with different diameters

Camera System

Diameter

1.6mm/2mm/2.8mm/3.9mm/6mm/8mm

Viewing Direction

Front/Side/Dual View

Camera pixel

0.16/0.52/1.0 Mega

Light

LED/ Optic Fiber

FOV

120°

DOF

1-10mm/3 -10mm/5-30mm/3-50mm/8-100mm

Steering Angle

Multiple angles such as 0, 30 70°, and 90 °are optional

Bending Angle

max:230°

Tube Length

1-10m

Power Supply

Power

Online adapter current input

Operating environment

Host operating temperature

-10℃-50℃

Probe operating temperature

-20-70℃

Storage temperature

-20-60℃

Relative humidity

Max 90%，No condensation

Water/Dust Proof

Probe/tube: IP68; Host: IP54

Configuration

Standard configuration

10/15-inch touchscreen Rigid Rod HD Borescope*1

Power adapter*1, Toolbox*1
