DE Series

7'' Elite Motor-Driven 3D Measurement Borescope

360° Articulation Ultra HD Touch Screen

7 inch HD touch screen

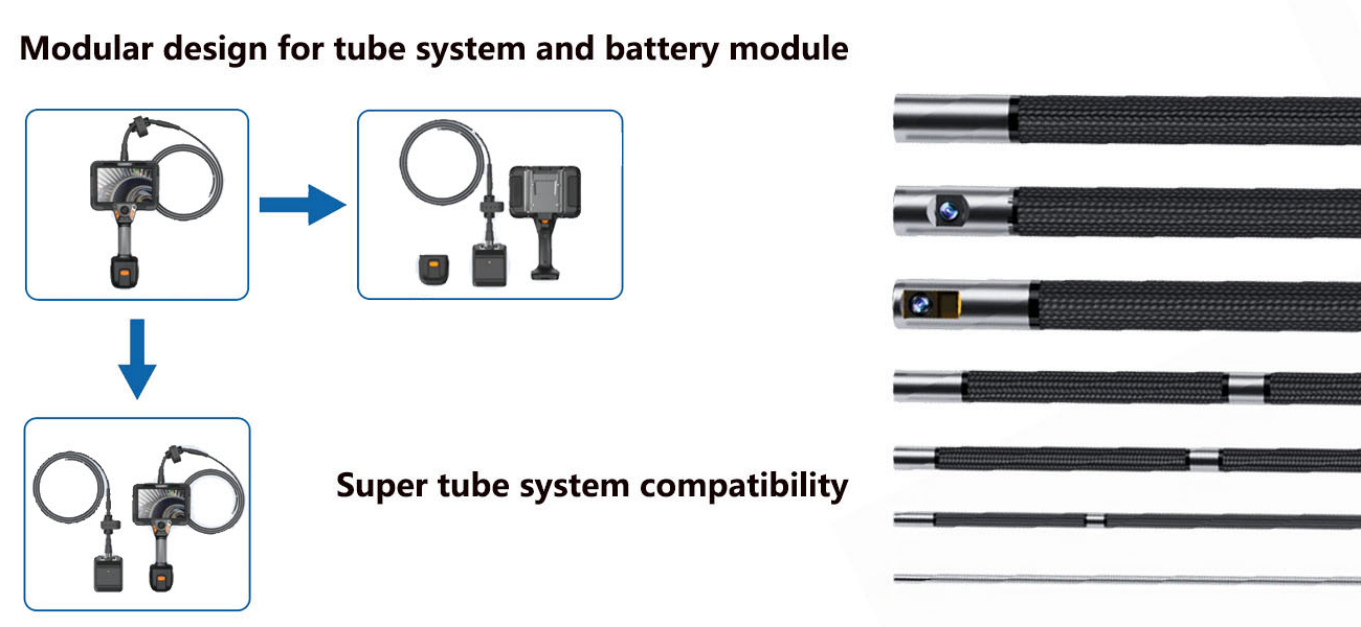

Modular Design Detachable Tube & Display
1Mega Pixel 1080P HD camera

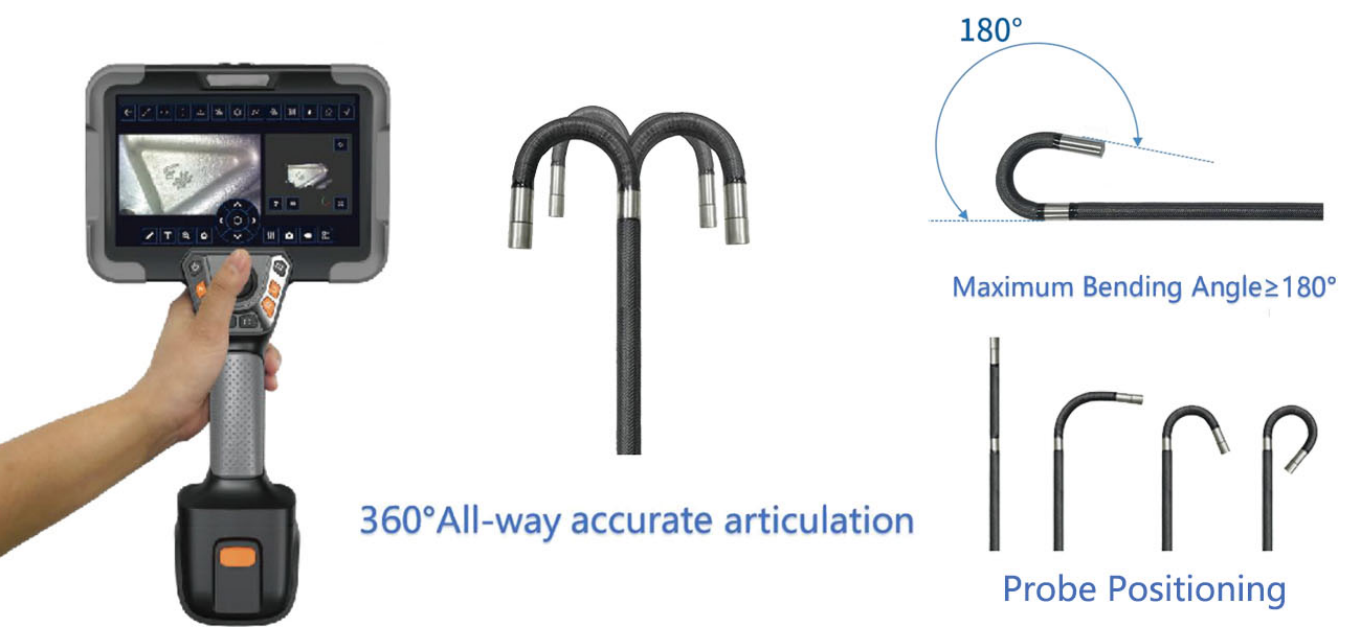

All-way 360° motor-driven articulation
Fast/slow model, auto reset
One click probe lock and Photo/Video
Probe Positioning and Fine tuning
Strong intelligent image processing system
MDI report generation
Intelligent and convenient file management
Craftsmanship with Military Quality
Ultra-high precision 3D Measurement function

Quantity

Contact Now

add to cart

The DE Series is a"7-inch All-Way Motor-driven Articulation 3D Measurement Borescope". It features a four-way 360° motor-driven articulation HD camera with adjustable LED lights, delivering ultra-clear imaging. Boasting one-key probe lock, precise steering positioning, step fine-tuning, and fast/slow model control, the device ensures more efficient and hassle-free detection operations. It features a 7-inch HD smart touch screen with a joystick, enabling sensitive touch response and accurate operation. Adopting a modular design, it is compatible with different tube systems to meet diverse on-site needs. In addition, the built-in MDI report generation and intelligent file management functions allow users to generate professional, standardized inspection reports with ease. What's more, the borescope supports fast, high-precision global scanning, which enables 3D point cloud modeling and 3D measurement. The measurement accuracy can reach more than 95%!

Feature:

Application:

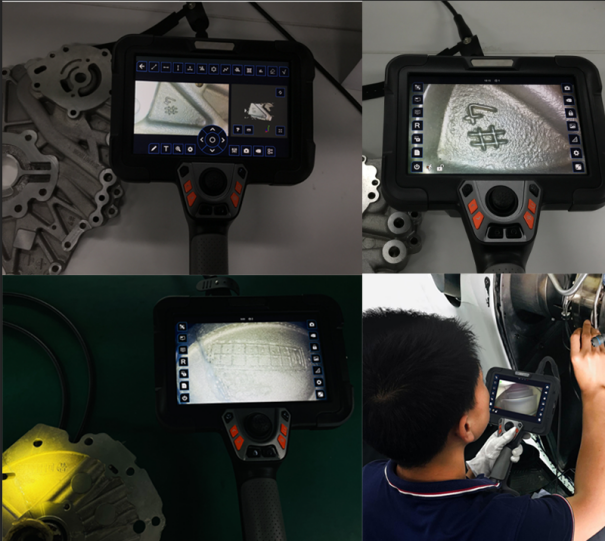

The DE Series 7-inch All-Way Motor-driven Articulation 3D Measurement Borescope can be widely used in industrial fields demanding high safety and precision, like automotive manufacturing, inspections, aerospace, precision casting and more. It enables non-destructive testing of key parts such as complex cavities and hidden welds. It collects 3D data in real time for accurate modeling, quickly identifies dimensional deviations and potential defects, greatly improves inspection efficiency, and acts as a core tool for quality control in high-end manufacturing.

Specification:

Host system
Screen size	7-inch HD touchscreen
Display Resolution	1920*1200
Rotation Mode	360° Motor driven articulation control
Zoom In/Out	8X
Image display scale	Image 1:1 / full screen
Image Effect	Negative film/ black & white/standard
Image freeze	Freeze the view and call the brush to save the graffiti in real time
Image Adjustment	Brightness, contrast, gamma, chroma, saturation, sharpness, white balance
Image mirroring and rotation	0 °/90 °/180 °/270 °
Photo Format	JPG
Video Format	MP4, capture the shot during video and re-record after pause
File Storage	Support Memory storage, SD card, USB flash disk
Output Port	HDMI same screen output
Data Port	HDMI port, USB port, type-c port, SD card port, 3.0 earphone port
Language	Multiple
Compatibility	Tube with different diameters
Host size	334mm167mm132mm
Host weight	About2.3kg (including battery)
Shell material	Engineering alloy material and aviation aluminum alloy
Guidance control	Fast/slow motor-driven guidance adjustment, automatic reset

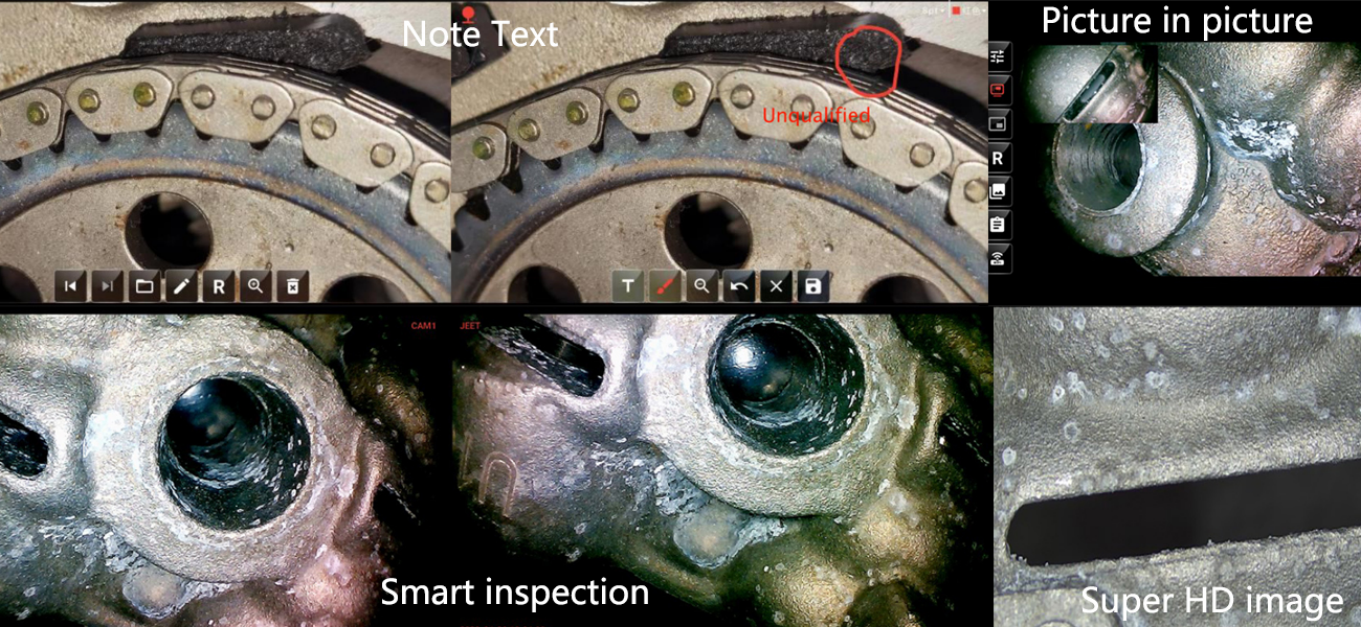

Graffiti notes	text notes, graffiti, watermark
Dual camera preview	Dual camera dynamic display on the same screen
Picture in picture	Main screen image and small window photo can be switched arbitrarily
Front/side on the same screen	Front-view/side-view are displayed on the same screen
WiFi Transmission	Wireless transmit images to mobile phones, computers and other terminals

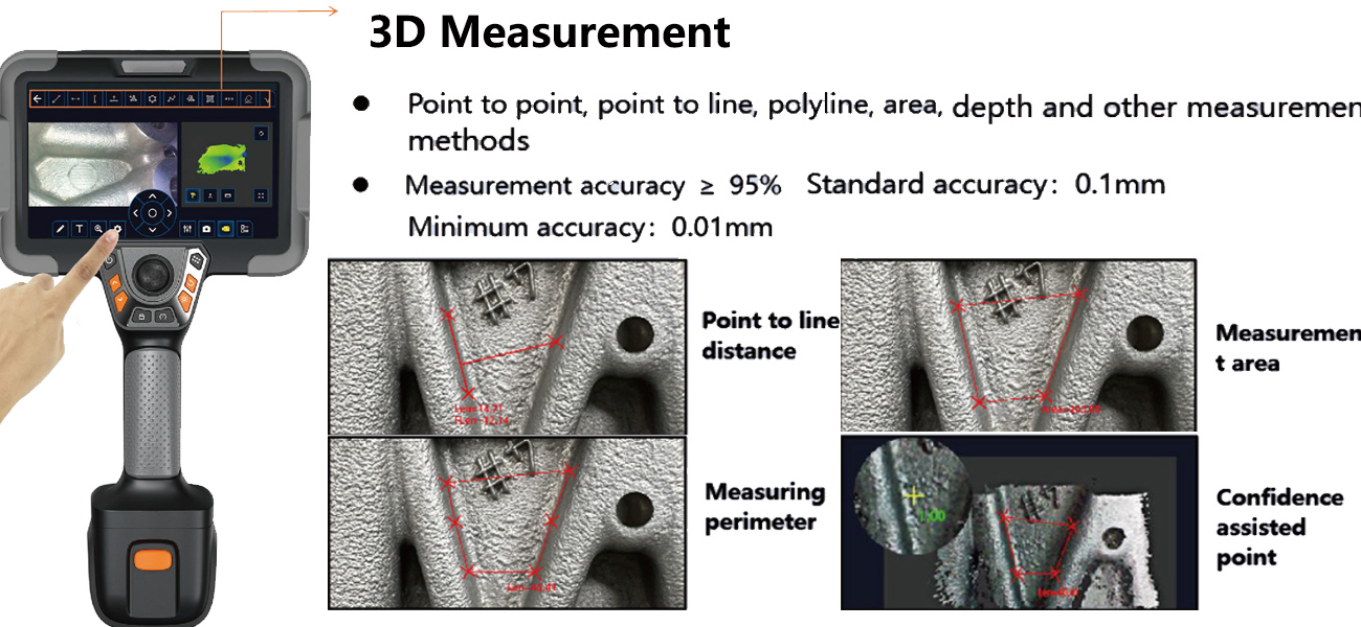

3D Measurement	Point to point, point to line, point to surface measurement of depth, area, perimeter, etc. Fine tune the navigation key and window assistance, confidence assistance to select points, and the measured image can be measured repeatedly

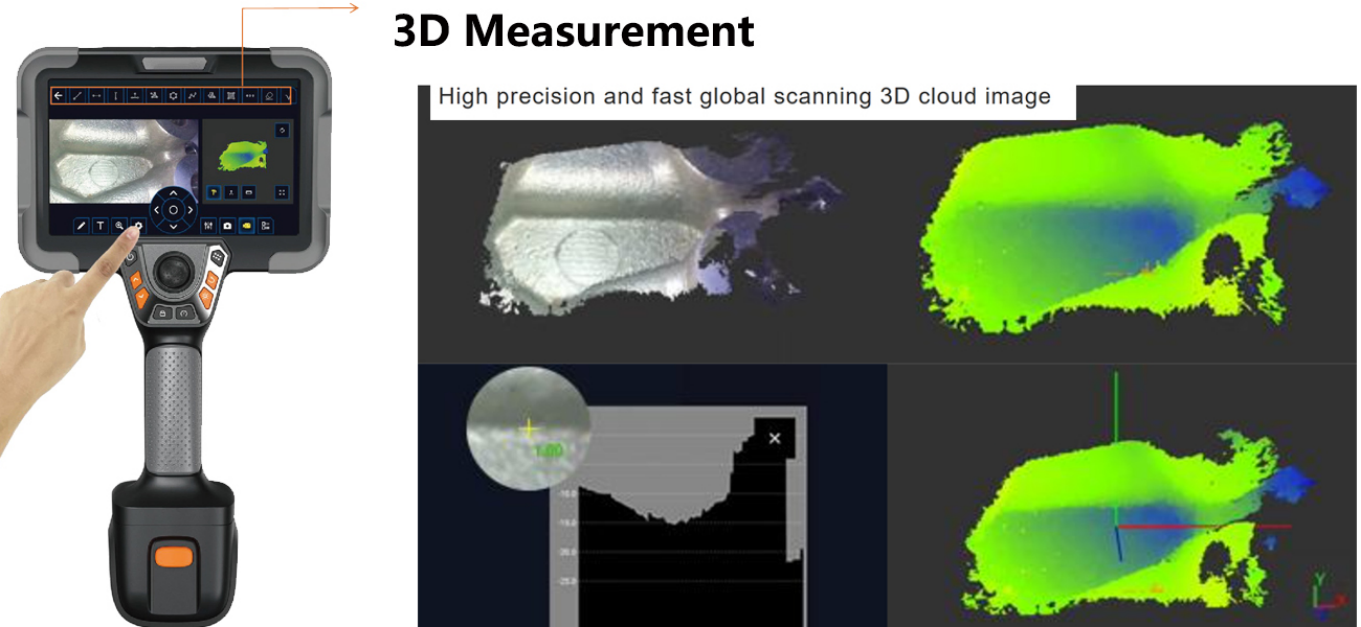

Cloud image	Vertical depth cloud image, 3D physical cloud image, local section, arbitrary section, XYZ coordinate display of cloud image, automatic measurement of maximum depth, view of section view, datum translation and real-time display of depth dimension
Standard Accuracy	0.1mm
Minimum Accuracy	0.01mm
Measurement Accuracy	≥95%
MDI Report function	Select the picture, graffiti it, edit the text description under the picture, create the test report and Bluetooth transmission test report
Intelligent file management	Support copying, renaming, deleting and generating reports of files in internal storage, SD card and USB storage media

Camera System
Diameter	6mm
Viewing Direction	Front View
Camera pixel	1.0 Mega
Image/Video Resolution	1920*1080
Light	LED/ Optic Fiber
Brightness Levels	Two modes: multi-level and auto adjustment
FOV	90°/120°
DOF	10-100mm
Steering Angle	Four-way 360°
Bending Angle	180°
Probe Positioning	Fine adjustment, precise positioning
Probe material	Titanium alloy
Tube Material	Tungsten-braided
Tube Length	2m/3m/4m
Power Supply
Battery Capacity	7.4V/6400mAh
Working time	4 hours, support charging while use
Operating environment
Host operating temperature	-10℃-50℃
Probe operating temperature	-20-70℃
Water/Dust Proof	Probe/tube: IP67; Host: IP65
Configuration
Standard configuration	7-inch display Motor driven articulation 3D Measurement videoscope*1
Standard configuration	Data cable1, Battery module1, Charger1, Toolbox1
