ME Series

7'' Elite Motor-driven HD Borescope

360° Articulation 1080P Touch Screen

7 inch HD touch screen

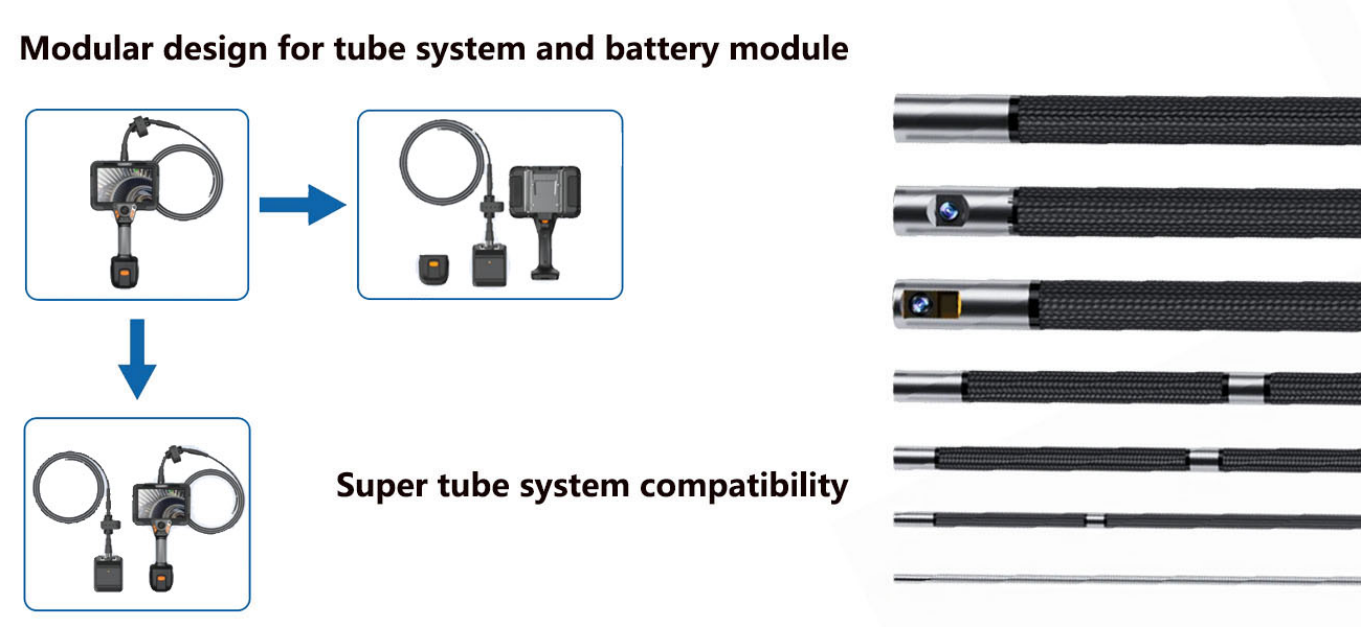

Modular Design Detachable Tube & Display
1Mega Pixel 1080P HD camera

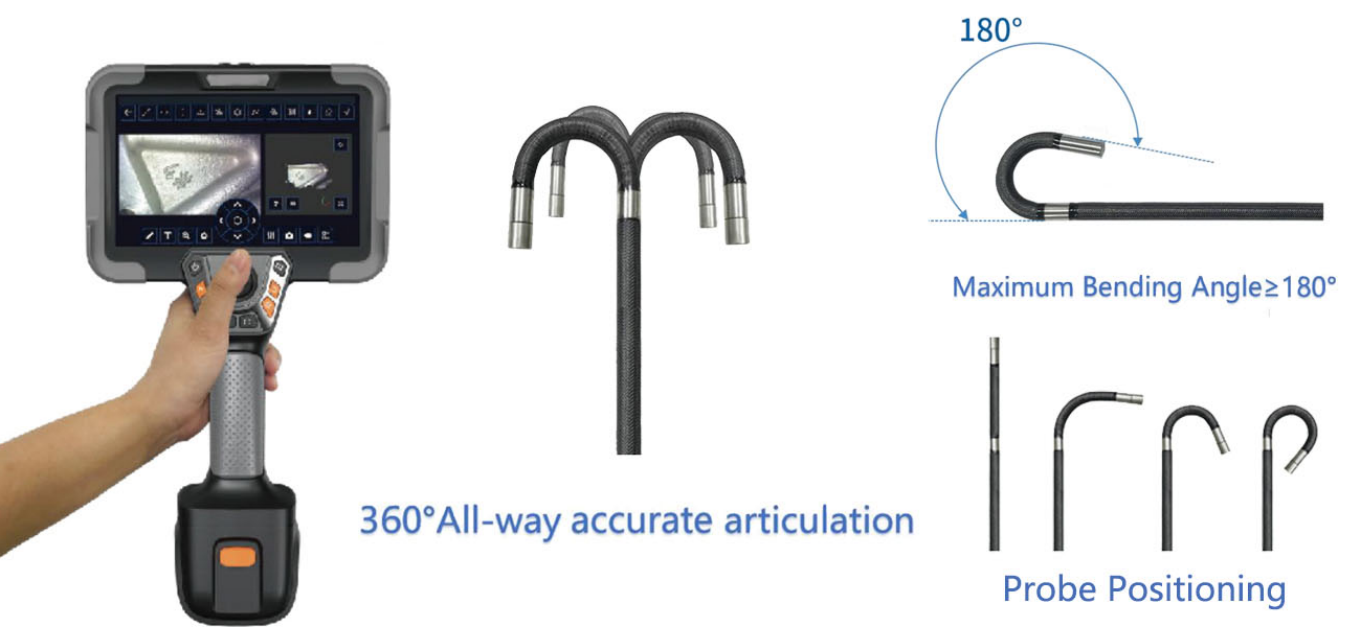

All-way 360° motor-driven articulation
Fast/slow model, auto reset
One click probe lock and Photo/Video
Probe Positioning and Fine tuning

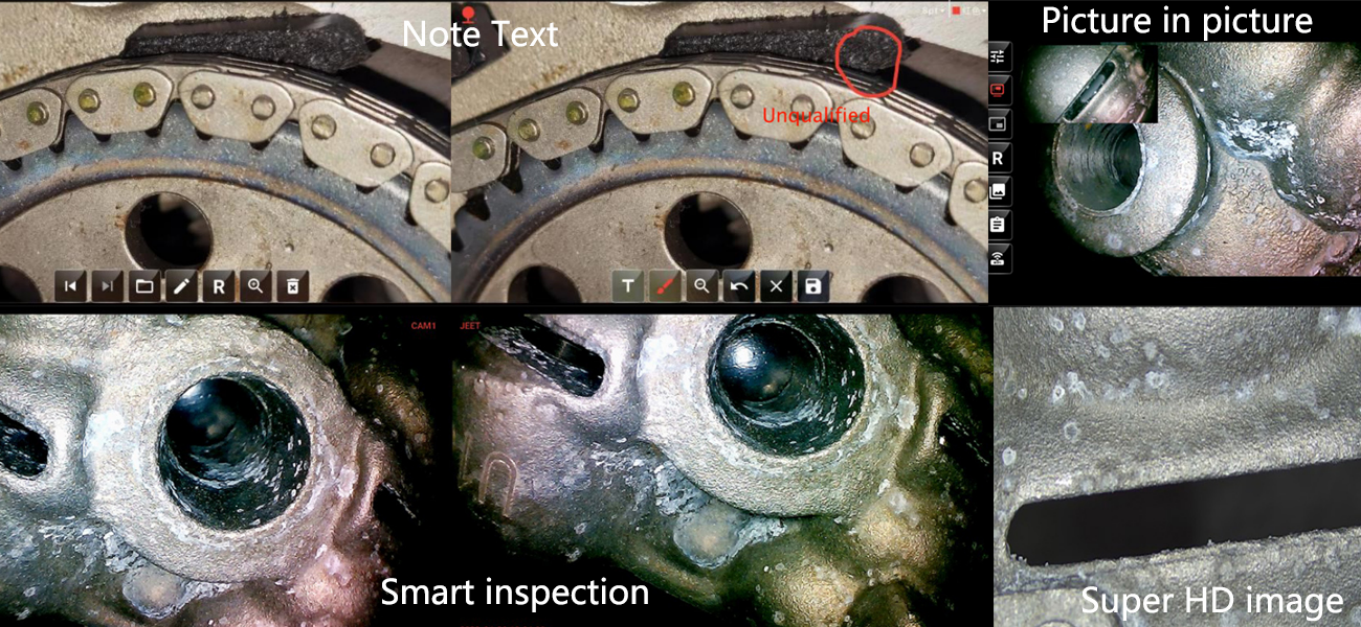

Strong intelligent image processing system
MDI report generation
Intelligent and convenient file management
Craftsmanship with Military Quality

Quantity

Contact Now

add to cart

The ME Series is a"7-inch All-Way Motor-driven Articulation HD Borescope". It features a four-way 360° motor-driven articulation HD camera with adjustable LED lights gives ultra clear and real restore image effect. Equipped with one-key probe lock and precise steering positioning, step fine-tuning and fast/slow control guidance, detection is more efficient and convenient. With 7-inch HD smart touch screen and Joystick for sensitive touch and accurate operation. Module design, compatible with different tubes. MDI report generation and intelligent file management functions provide users with professional detection reports

Feature:

Application:

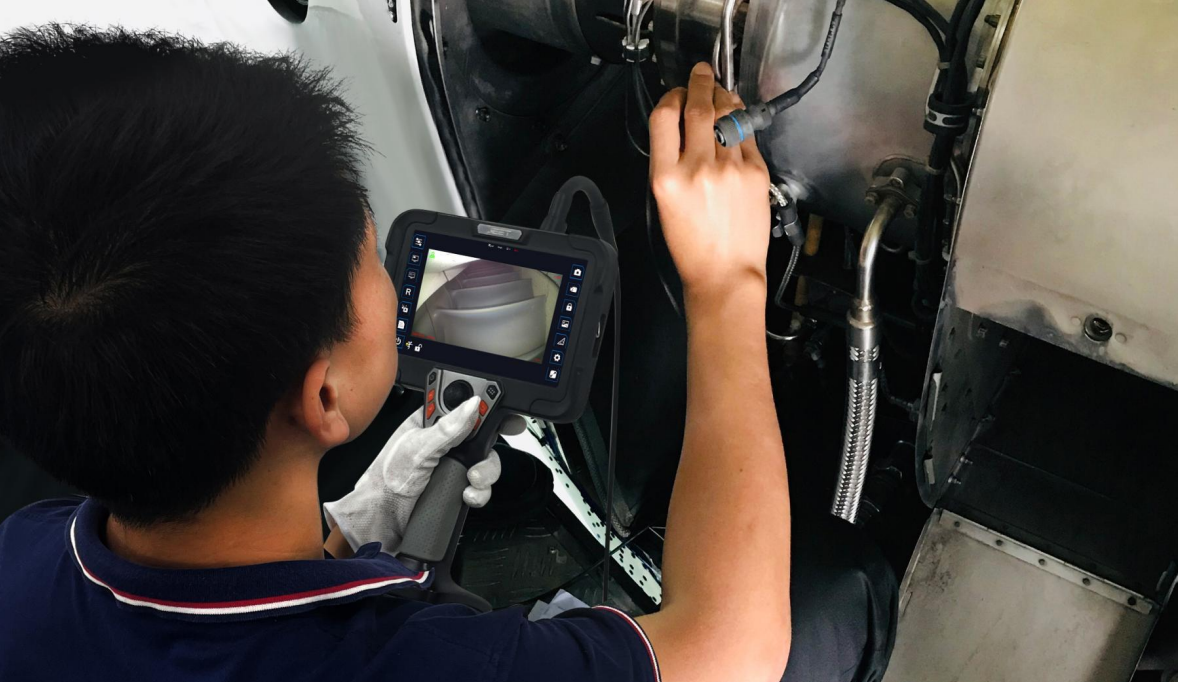

The ME Series 7-inch All-Way Motor-driven Articulation HD Borescope can be widely used in many fields, such as automotive manufacturing, car aftermarket, police security checking, aviation and aerospace area, special inspection institute, pharmaceutical machinery, non-destructive testing explosion-proof detection, etc.. It signifies the pinnacle of inspection, blending technological excellence with precision

Specification:

Host system
Screen size	7-inch HD touchscreen
Display Resolution	1920*1200
Rotation Mode	360° Motor driven articulation control
Zoom In/Out	8X
Image display scale	Image 1:1 / full screen
Image Effect	Negative film/ black & white/standard
Image freeze	Freeze the view and call the brush to save the graffiti in real time
Image Adjustment	Brightness, contrast, gamma, chroma, saturation, sharpness, white balance
Image mirroring and rotation	0 °/90 °/180 °/270 °
Photo Format	JPG
Video Format	MP4, capture the shot during video and re-record after pause
File Storage	Support Memory storage, SD card, USB flash disk
Output Port	HDMI same screen output
Data Port	HDMI port, USB port, type-c port, SD card port, 3.0 earphone port
Language	Multiple
Compatibility	Tube with different diameters
Host size	334mm167mm132mm
Host weight	About2.3kg (including battery)
Shell material	Engineering alloy material and aviation aluminum alloy
Guidance control	Fast/slow motor-driven guidance adjustment, automatic reset
Graffiti notes	text notes, graffiti, watermark
Dual camera preview	Dual camera dynamic display on the same screen
Picture in picture	Main screen image and small window photo can be switched arbitrarily
Front/side on the same screen	Front-view/side-view are displayed on the same screen
WiFi Transmission	Wireless transmit images to mobile phones, computers and other terminals
MDI Report function	Select the picture, graffiti it, edit the text description under the picture, create the test report and Bluetooth transmission test report
Intelligent file management	Support copying, renaming, deleting and generating reports of files in internal storage, SD card and USB storage media

Camera System
Diameter	6mm	3.8mm
Viewing Direction	Front/Side/Dual View
Camera pixel	1.0 Mega/0.16 Mega
Image/Video Resolution	19201080 /1280720/640*480
Light	LED/ Optic Fiber
Brightness Levels	Two modes: multi-level and auto adjustment
FOV	90°/120°
DOF	10-100mm/5 -50mm
Steering Angle	Four-way 360°
Bending Angle	180°
Probe Positioning	Fine adjustment, precise positioning
Probe material	Titanium alloy
Tube Material	Tungsten-braided
Tube Length	2m/3m/4m/5m
Power Supply
Battery Capacity	7.4V/6400mAh
Working time	4 hours, support charging while use
Operating environment
Host operating temperature	-10℃-50℃
Probe operating temperature	-20-70℃
Water/Dust Proof	Probe/tube: IP67; Host: IP65
Configuration
Standard configuration	7-inch display Motor driven articulation videoscope*1
	Data cable1, Battery module1, Charger1, Toolbox1
