MD Series

5.7'' Dynamic Motor-driven HD Borescope

360° Articulation 1080P Touch Screen

5.7 inch HD touch screen
Modular Design Detachable Tube
1Mega Pixel 1080P HD camera
All-way 360° motor-driven articulation
Fast/slow model, one click probe lock or reset
Super fast universal focus
Strong intelligent image processing system
Diversity function for measurement/test report

Quantity

Contact Now

add to cart

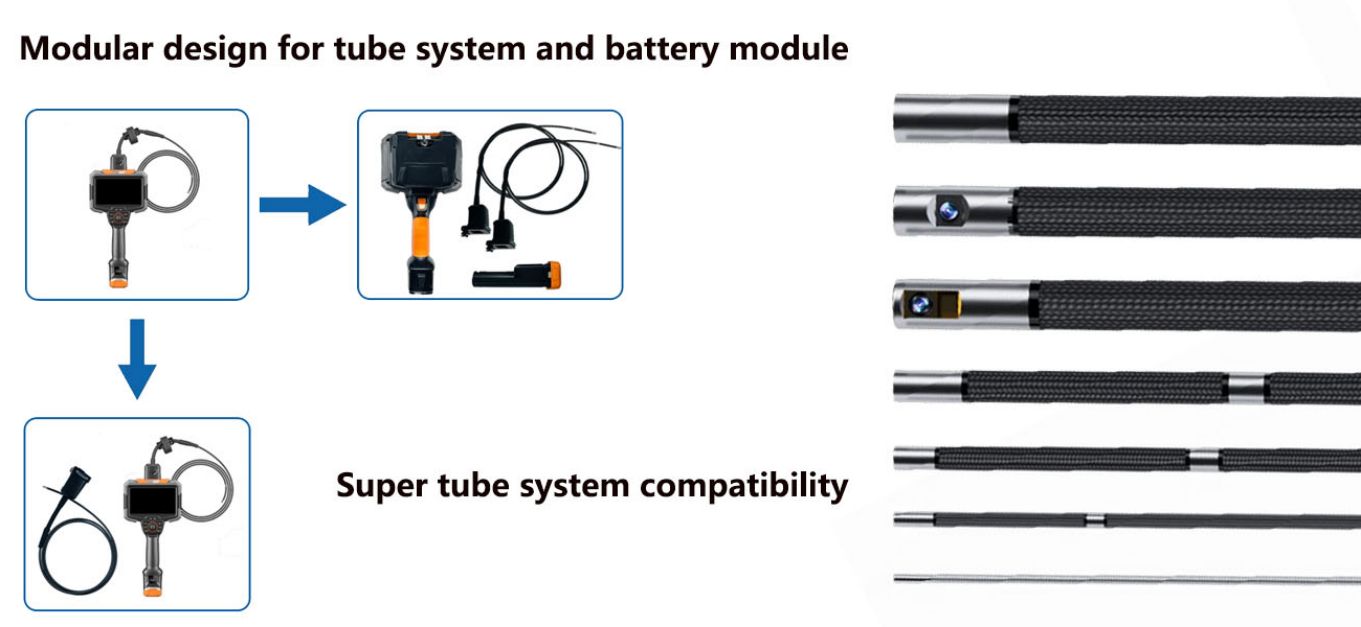

The MD Series is a"5.7-inch All-Way Motor-driven Articulation HD Borescope". It features a four-way 360° motor-driven articulation HD camera with adjustable LED lights gives super clear and real restore image effect. Equipped with one-key probe lock or reset, probe step-regulating and positioning, it enables more accurate and efficient detection. With 5.7-inch HD smart touch screen supports image effect adjustment and automatic defect framing, restoring detection details. Module design, compatible with different tubes and front view/ side view/dual camera probes. It also has diversity functions such as standard comparison measurement, test report generation and intelligent management of files.

Feature:

Application:

The MD Series 5.7-inch All-Way Motor-driven Articulation HD Borescope can be widely used in any industry that requires remote inspection of machinery, components, or infrastructure. In manufacturing, it inspects engine interiors, turbines and complex assemblies; in automotive, it examines cylinders, pistons and exhaust systems. For aviation, it’s suitable for inspecting aircraft engines, fuel and hydraulic components, while in infrastructure maintenance, it assesses pipelines, ducts and other hard-to-reach areas. It reduces disassembly needs, saving time and labor and thorough, accurate inspections, facilitating timely maintenance and boosting operational efficiency and safety.

Specification:

Host system
Screen size	5.7-inch HD touchscreen
Display Resolution	1920*1080
Rotation Mode	360° Motor driven articulation control
Zoom In/Out	8X

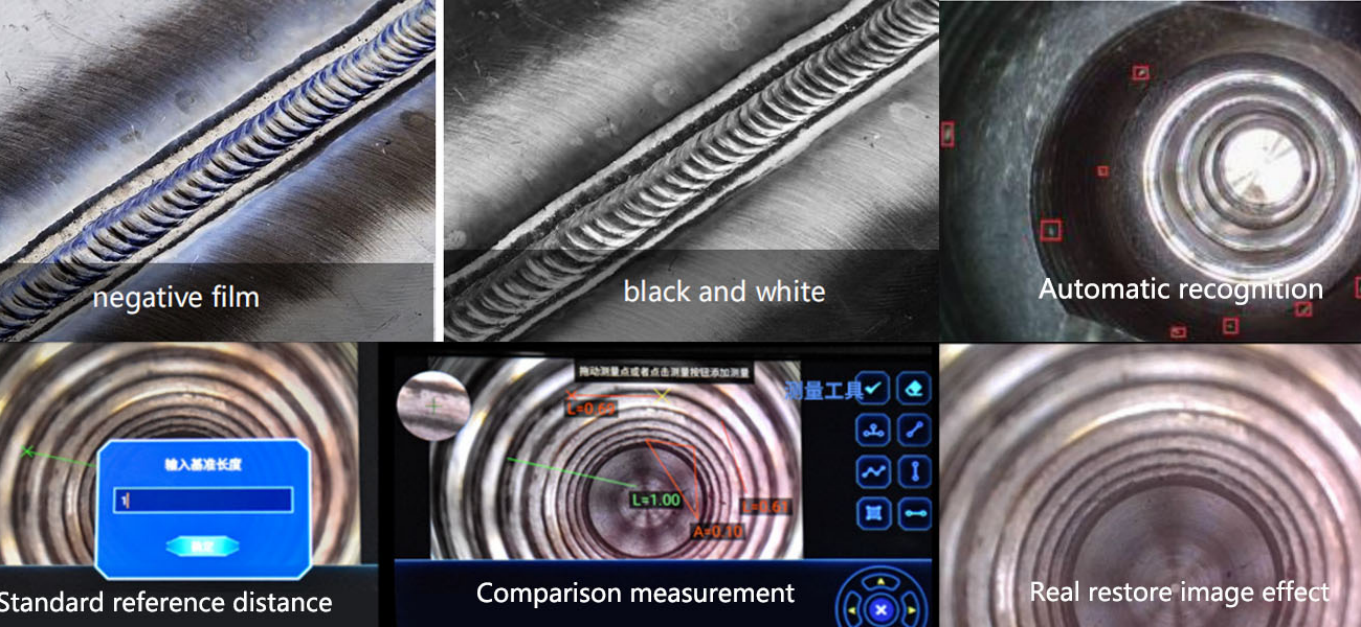

Image Effect	Negative film/ black & white/standard
Image Adjustment	Brightness, contrast, gamma, chroma, saturation, sharpness, white balance
Measure mode	Standard /Contrast measurement
Photo Format	PNG
Video Format	MP4, capture the shot during video and re-record after pause
File Storage	Standard TF card: 32G, up to 128G
Output Port	HDMI same screen output
Language	Multiple
Compatibility	Tube with different diameters
Host size	334mm167mm132mm
Host weight	About 1.6kg (including battery)
Shell material	PC+ABS
Guidance control	Fast/slow motor-driven guidance adjustment, automatic reset
Graffiti notes	text notes, graffiti, watermark
Software Function	Image Effect, Image adjustment, Measure mode, Test report generation, Auto recognition, Filemanagement

Camera System
Diameter	6mm	3.9mm
Viewing Direction	Front/Side/Dual View
Camera pixel	1.0 Mega/0.16 Mega
Image/Video Resolution	1280720/640480
Light	LED/ Optic Fiber
Brightness Levels	5 level adjustment
FOV	90°/120°
DOF	10-100mm/5 -50mm

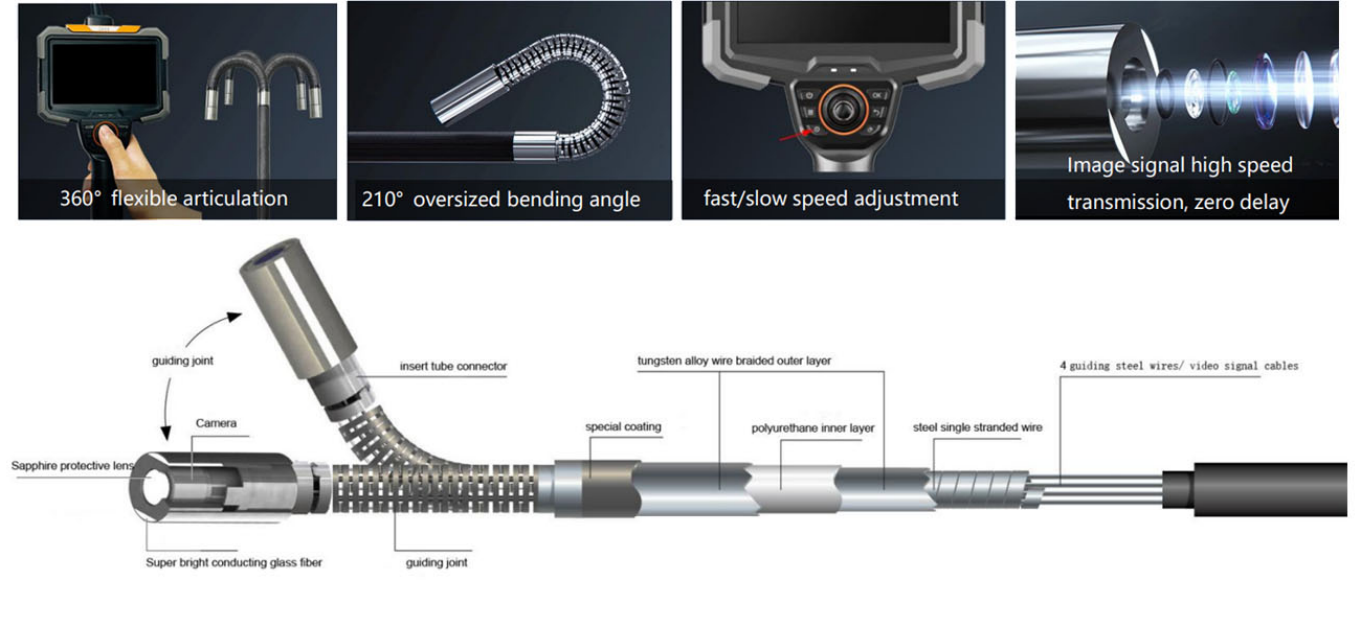

Steering Angle	Four-way 360°
Bending Angle	max:210°
Probe Positioning	Articulation lock, fine turn the probe
Probe material	Titanium alloy
Tube Material	Movement of wear -resistant tungsten alloy wire
Tube Length	1m/1.5m/2m/3m

Power Supply
Battery Capacity	11.1V/3200mAh
Charging	Supports fast charging & PD charging bank to emergency charging
Working time	4 hours
Operating environment
Host operating temperature	-10℃-50℃
Probe operating temperature	-20-70℃
Water/Dust Proof	Probe/tube: IP64
Configuration
Standard configuration	5.7-inch display Motor driven articulation videoscope*1
Standard configuration	Data cable1, Battery module1, Charger1, Toolbox1
