MA Series

7'' Acute Motor-driven HD Borescope
360° Articulation 1080P Touch Screen

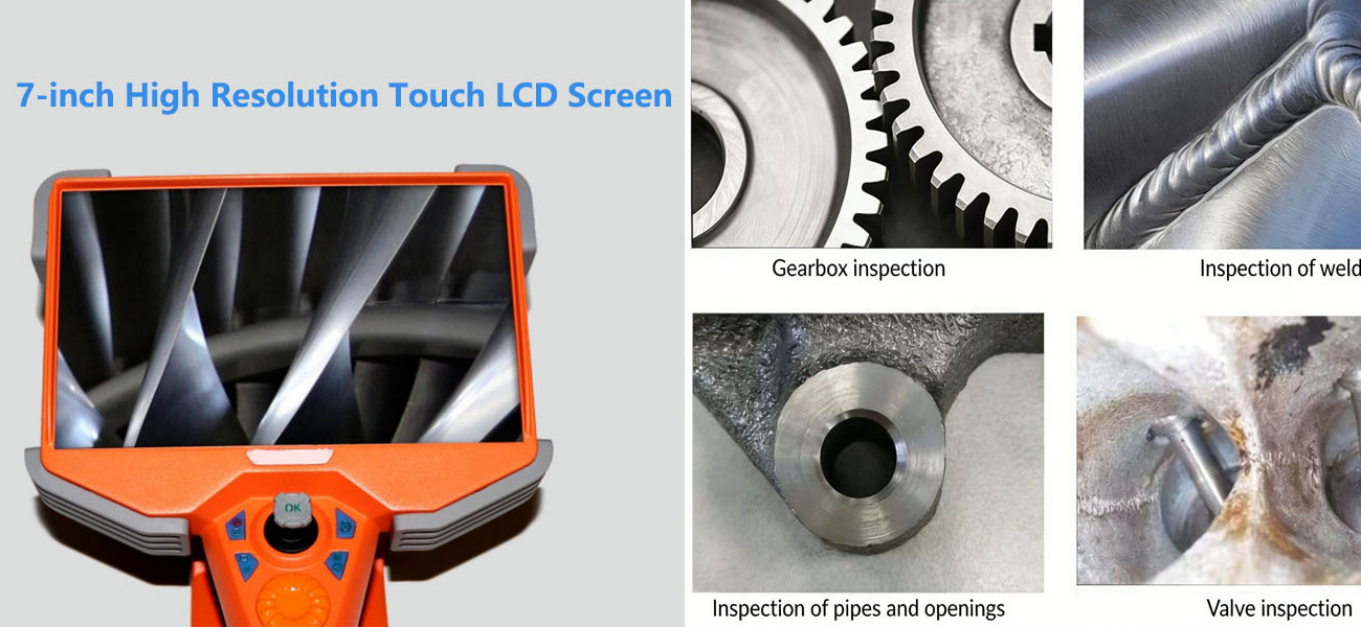

7 inch HD touch screen

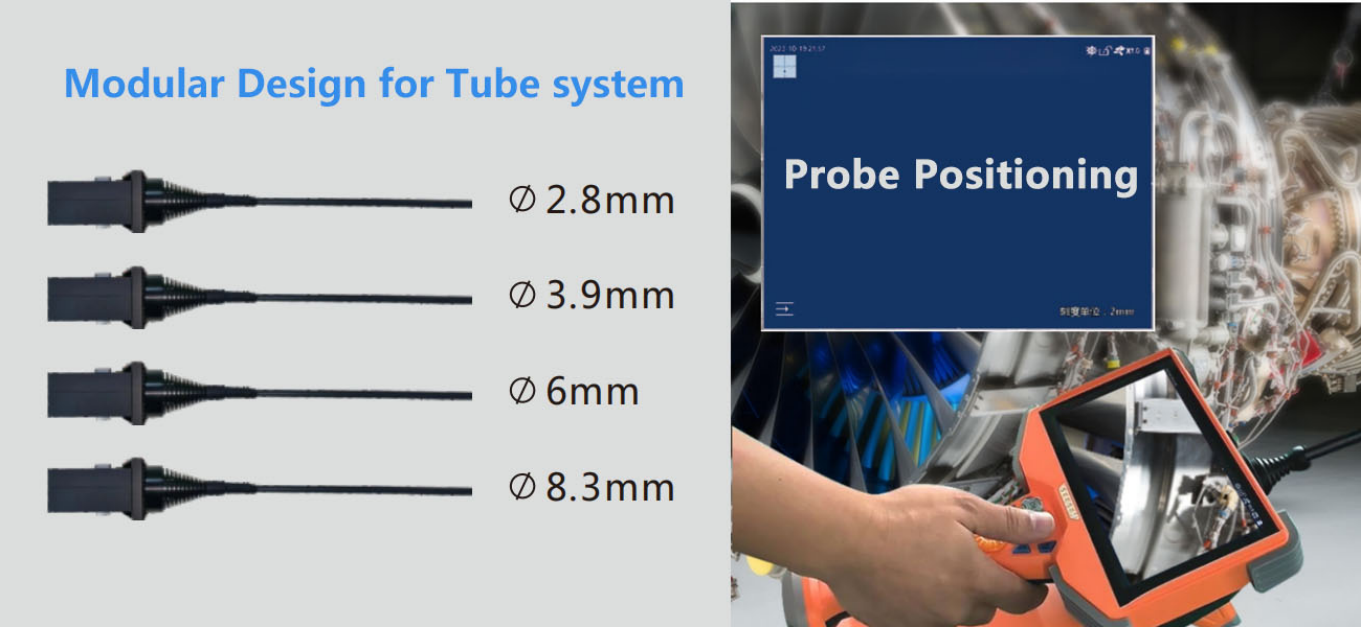

Modular Design Detachable Tube
1Mega Pixel 1080P HD camera
All-way 360° motor-driven articulation
Probe lock and fine-tuned

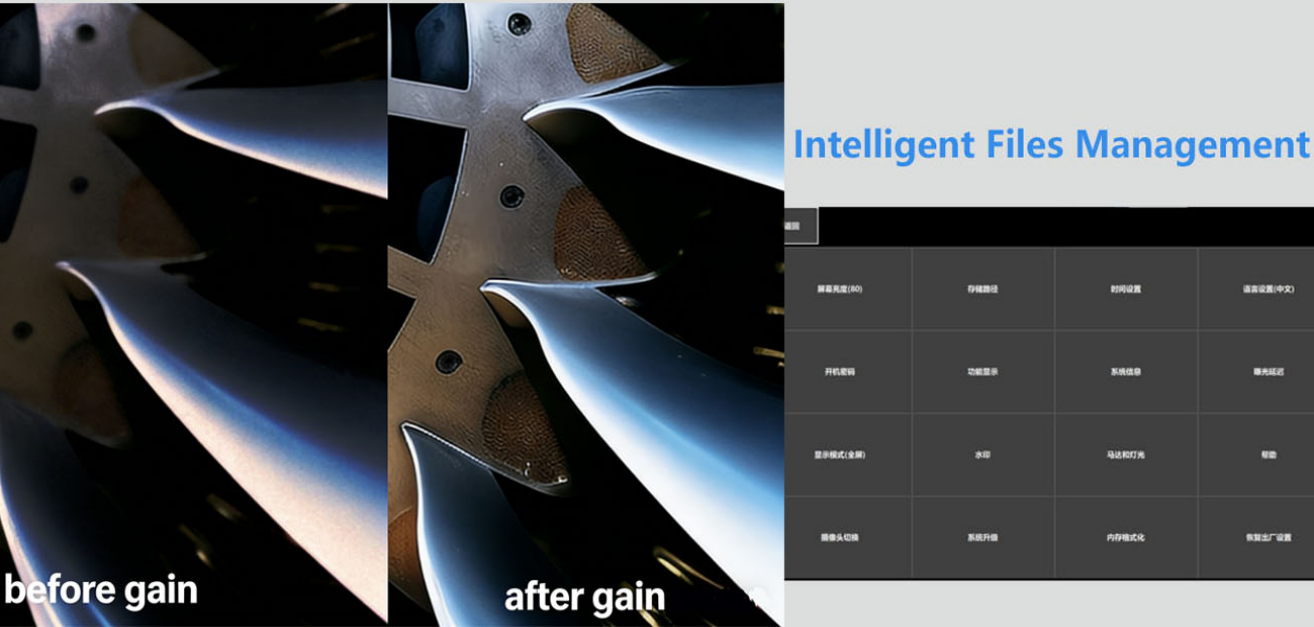

Manual and automatic gain
Simultaneous display on different screens
Real-time 25X zoom, image playback 8X zoom
Quantity
Contact Now
add to cart

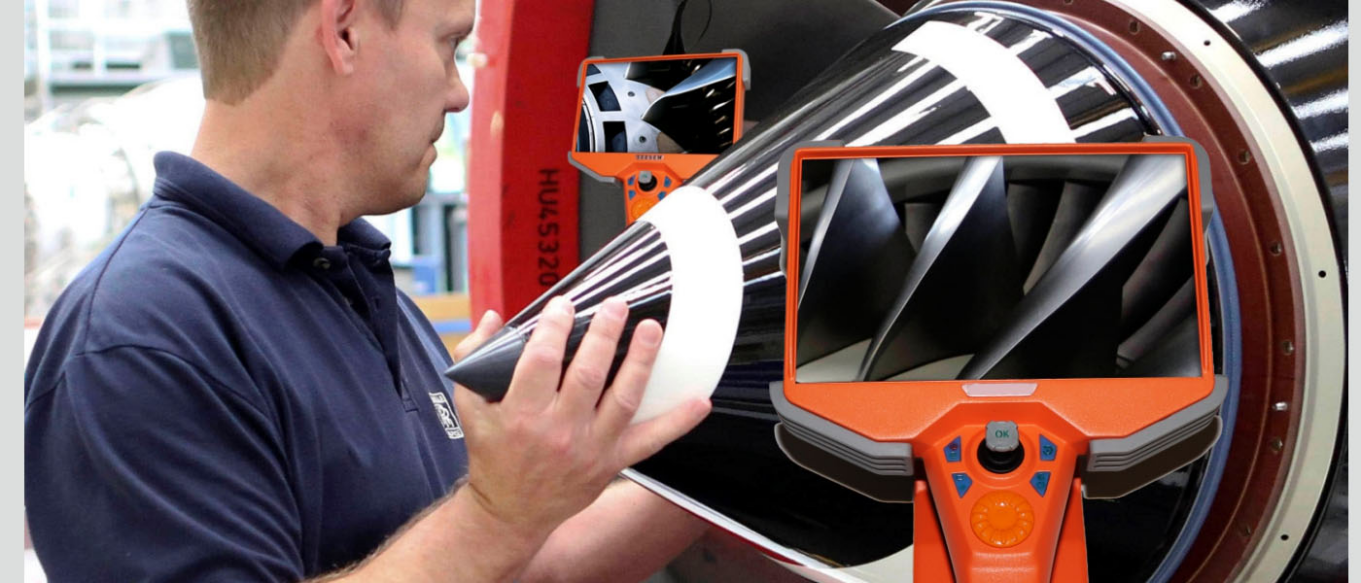

The MA Series is a"7-inch All-Way Motor-driven Articulation HD Borescope". It features a four-way 360° motor-driven articulation HD camera gives super clear and real restore image effect. Equipped with probe positioning and fine-tuned, it enables more accurate and efficient detection. With 7-inch Ultra HD smart touch screen supports image effect adjustment, manual and automatic gain for image processing systems. Module design, compatible with different tubes system. It supports simultaneous display on different screens, facilitating real-time detail sharing and collaborative defect judgment among teams and also have intelligent files management function.

Feature:


Application:
The MA Series 7-inch All-Way Motor-driven Articulation HD Borescope can be widely used in various industrial fields such as aerospace, petrochemical industry, electric power, petrochemical engineering, parts casting, food, pharmaceutical and medical device sectors. With the advantages of accurate and efficient performance, it can fully meet the differentiated needs of different industries in equipment testing, fault troubleshooting, maintenance and repair, and escort the stability and safety of production and operation in various fields


Specification:

Host system

Screen size

7-inch HD IPS touchscreen

Display Resolution

1920*1200

Rotation Mode

360° Motor driven articulation control

Zoom In/Out

Support real-time 25X zoom, image playback 8X zoom

Image rotation

Real time images can rotate 0 °/90 °/180 °/270 °

Image Effect

Negative film/ black & white/standard/color with gain control

Photo Format

 JPEG/BMP

Video Format

MP4/AVI, capture the shot during video

Video Playback

Video playback can be fast forward or rewind

File Storage

Build-in 32G storage, also support TF card and USB Flash

Output Port

HDMI, 3.5 audio port, USB

Simultaneous display

Different screens can display the same content

Language

Multiple

Compatibility

Tube with different diameters

Host size

318mm*196mm*158mm

Host weight

＜3kg (including battery)

Shell material

Aluminum alloy+PC

Graffiti notes

Text, arrows, circles, boxes, time and watermarks

File management

File preview can be displayed in list or grid view, with options to view in full-screen mode, delete files, copy files, and rename files

Camera System

Diameter

2.8mm/3.9mm/6.0mm/8.3mm

Viewing Direction

Front/Side/Dual View

Camera pixel

1.0 Mega/0.52 Mega

Light

LED/ Optic Fiber

LED Adjustment

Two modes: multi-level and auto adjustment

FOV

120°

DOF

7-150mm/3-50mm

Steering Angle

Four-way 360°

Bending Angle

max:180°

Probe Positioning

Articulation lock, fine turn the probe

Probe material

Titanium alloy

Tube Material

4-layer tungsten alloy wire braided

Tube Length

1m/2m/3m

Power Supply

Working voltage

DC 15V3A

Maximum power

>30W

Battery

5000mAh Li-battery, Voltage: 10.8V, Power: 54Wh

Charging

AC220V power adapter power supply and charging

Working time

≥4 hours

Operating environment

Host operating temperature

-25℃-60℃

Probe operating temperature

-25-85℃

Storage temperature

-40-60℃

Relative humidity

15%~90% without condensation

Water/Dust Proof

Probe/tube: IP67; Host: IP54

Configuration

Standard configuration

7-inch display Motor driven articulation videoscope*1

Li-Battery*1, Power adapter*1, Toolbox*1
