BP Series

5.1'' Pro Borescope

360° Articulation 1080P HD Joystick Control

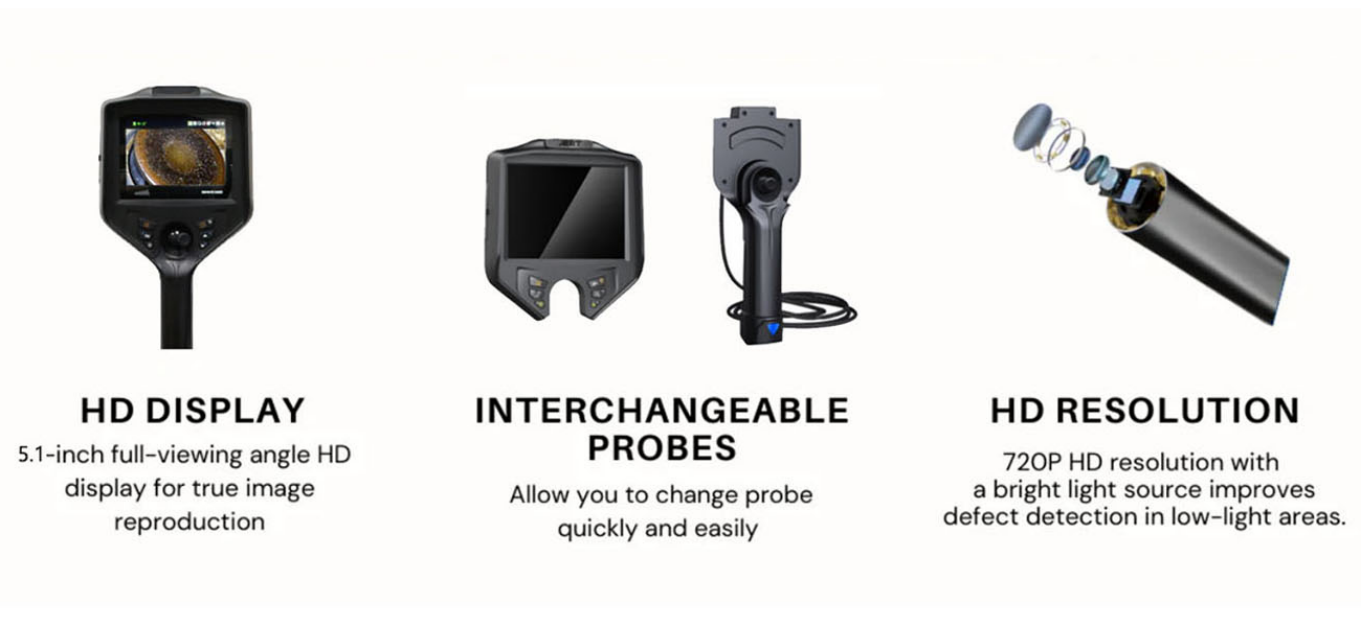

5.1 inch IPS HD large screen
Modular Design Detachable Probe & Display
1Mega Pixel 1080P HD camera
All-way 360° Joystick control articulation
Strong intelligent image processing system
High Temperature Warning
WiFi transmission

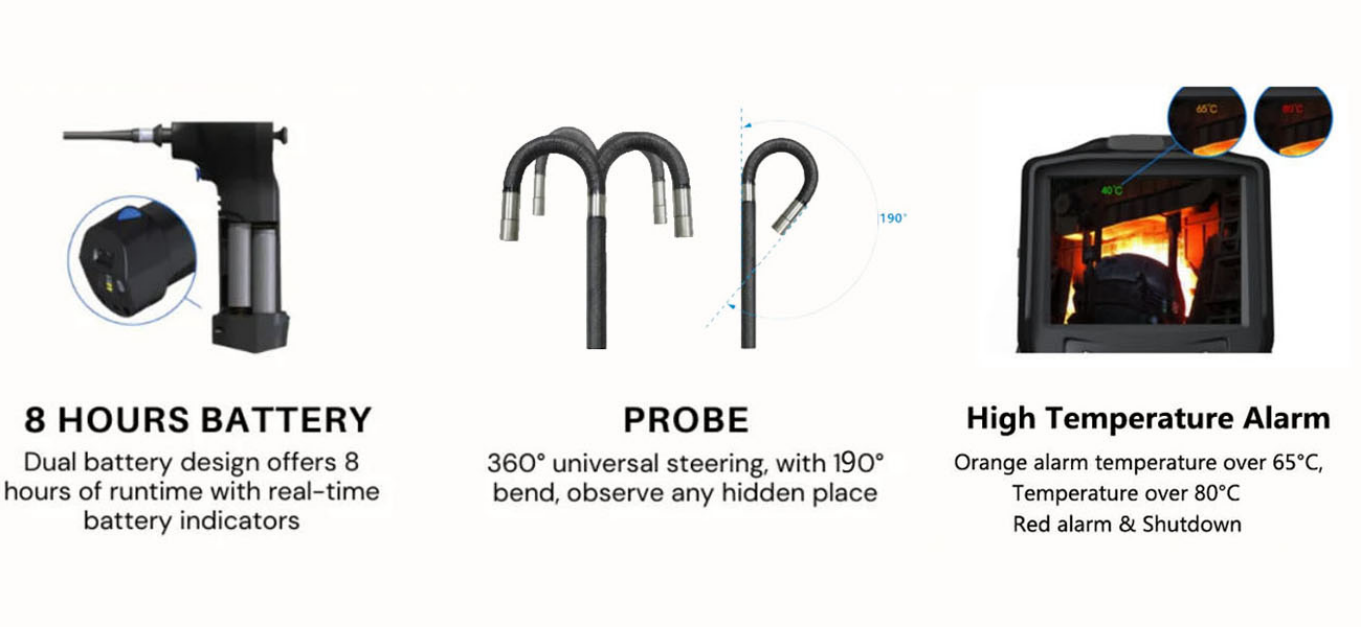

Dual battery design, Up to 8 hours

Quantity

Contact Now

add to cart

The BP Series is a"5.1-inch All-Way Articulation HD Pro Borescope". It features a four-way 360° Joystick control articulating HD camera with high bright adjustable LED lights gives crystal-clear images, precise probe locking technology, make the detection more accurate and efficient. With 5.1-inch high-definition full-view display and strong intelligent image processing system to truly restore the detection image effect. Module design, the display and tube can be easily dismantled and replaced. Compatible with different tubes and front view/ side view/dual camera probes. High-temperature warning and IP67 waterproof rating ensures safety use in heated or wet environments. Dual battery design, makes work effortless

Feature:

Application:

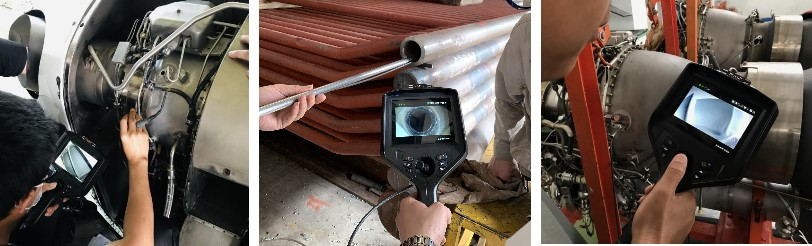

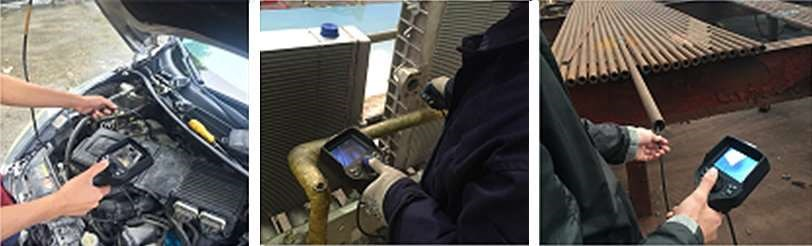

The BP Series 5.1-inch Multifunctional All-Way Articulation HD Pro Borescope can be widely used in aerospace, automobile manufacturing, police safety, energy and power, military manufacturing, special inspection systems, petrochemicals, food and drug machines, machine casting, rail transit, municipal pipelines to inspect engines, pipes, and confined spaces, offering a comprehensive, high-quality visual inspection solution.

Specification:

Host system
Screen size	5.1-inch IPS display with sunshade design
Display Resolution	1280*960
Zoom In/Out	8X
Image Effect	Negative film/ black & white/standard
Image Rotate	0° / 90° / 180° / 270°
White Balance Suppression	5 levels adjustable
White Balance	Auto white balance
Screen Scale Function	Concentric circle scale / Cross line-scale
Photo/Video Format	JPEG/MOV
File Storage	Standard TF card: 16G
Output Port	HDMI video output, Micro USB port
Language	Multiple
Host size	324.3161.391.2mm
Compatibility	Interchangeable monitor and tube with different diameters
Host weight	≤0.8Kg (including battery)

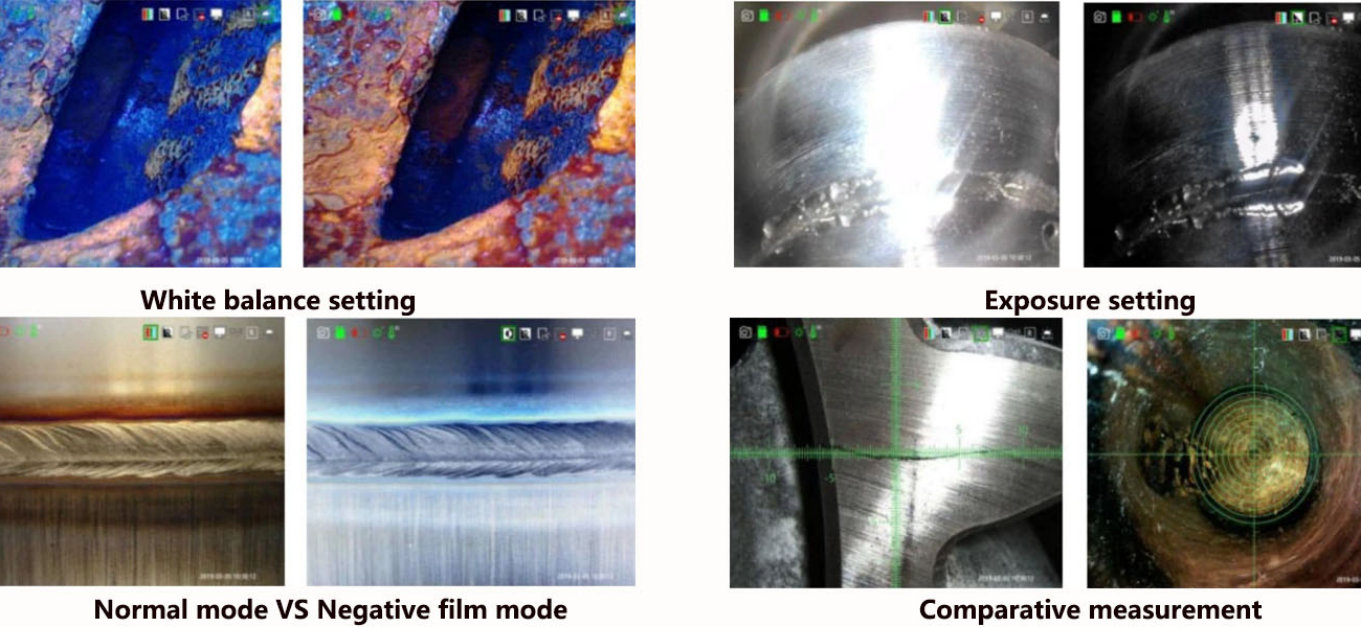

Software Function	Image effect, exposure adjust, image freezing, scale on the screen, aspect ratio adjust, digital zoom, image rotate, white balance adjust

Camera System
Diameter	6mm	4.2mm	3.8mm
Viewing Direction	Front/Side/Dual View	Front View	Front/Side/Dual View
Camera pixel	1.0 Mega
Image Resolution	1280*720
Video Resolution	1280*720
Light	LED/ Optic Fiber
Brightness Levels	0-9 level adjustment
FOV	120°
DOF	10-100mm/5 -80mm/5-150mm/50mm-∞
Steering Angle	Four-way 360°
Bending Angle	max:190°
Probe Positioning	Damping positioning & articulation lock device
Tube Material	wear-resistant tungsten alloy wire
Tube Length	1m/1.5m/2m/3m

Power Supply
Battery Charging	DC5V 1A, 3.7V
Battery	3200mAh Li-battery ×2
Working time	8 hours
Operating environment
Host operating temperature	-10℃-50℃
Probe operating temperature	-20-70℃
Storage temperature	-20-60℃
Relative humidity	Max 90%，No condensation
Water/Dust Proof	Probe/tube: IP67; Host: IP65
Configuration
Standard configuration	5.1-inch display articulating videoscope*1
Standard configuration	Charging cable1 ,3200mAh battery 2, Charger1, Toolbox1
