BO Series

4.3'' Optimal HD Borescope

360° Articulation 1080P HD Joystick Control

4.3 inch WVGA Sunscreen
1Mega Pixel 1080P HD camera

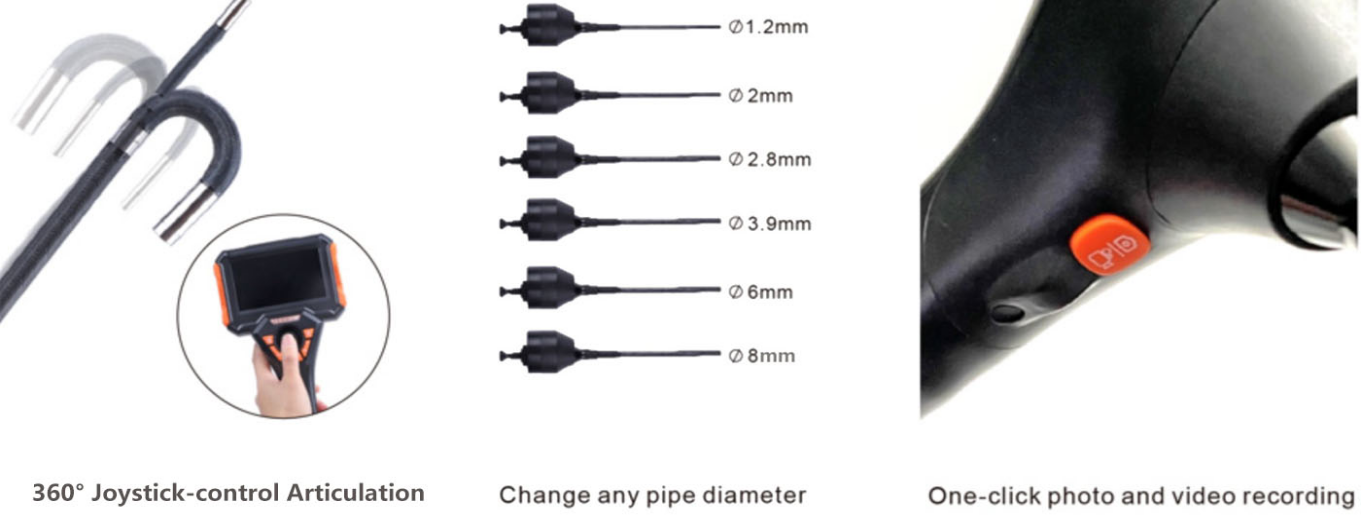

All-way 360° articulation
0.9mm-8mm Tube system
IP68 Waterproof Probe
One-click photo/Video capture
4X real-time zoom/8X playback zoom
5000mAh Rechargeable Li-battery

Quantity

Contact Now

add to cart

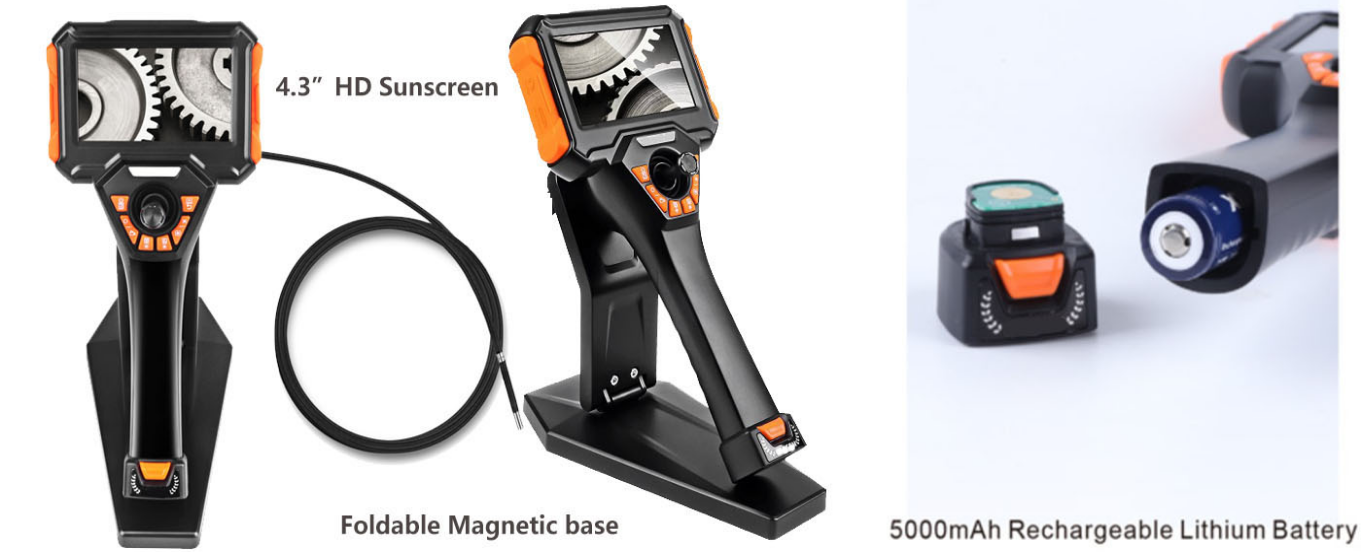

The BO Series is a"4.3-inch All-Way Articulation HD Borescope". Designed for automotive, industrial and aerospace etc. It features a four-way 360° articulation HD camera with a multi-level adjustable lighting system, accurately adjust the brightness according to the detection environment to ensure clear imaging even in dark internal scenes. Modular design, available with 0.95mm-8mm diameter probes, gives unlimited range. Equipped with a 4.3-inch HD display, joystick control, one-click photo/video capture. IP68 Waterproof rate makes safe use in wet environments and a 5000mAh battery supports continuous operation.

Feature:

Application:

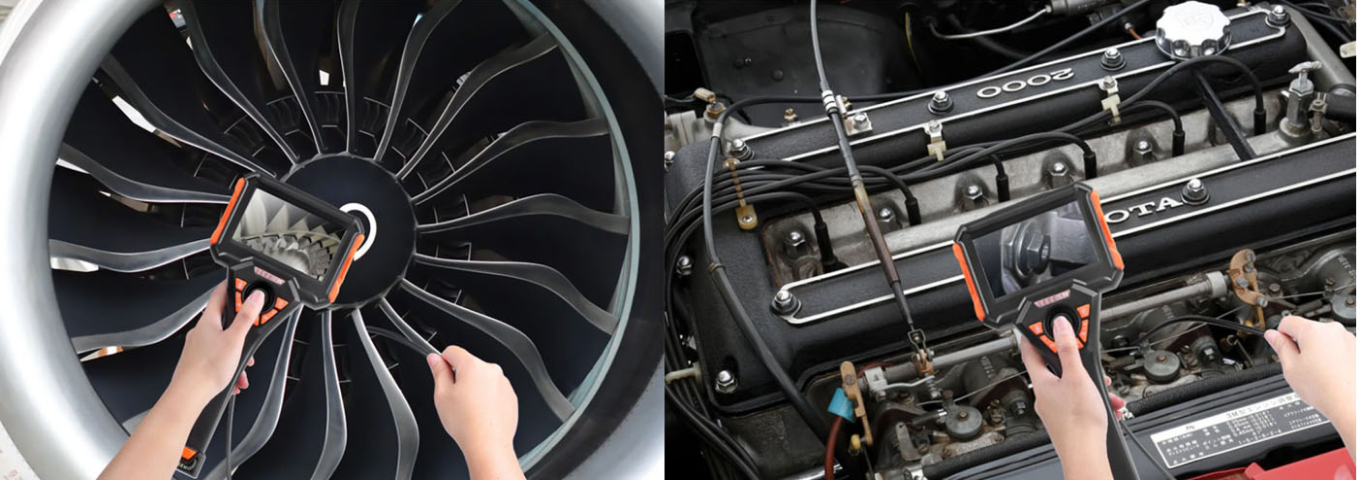

The BO Series 4.3-inch All-Way Articulation HD Borescope is widely used in automotive maintenance, industrial machinery inspection, precision equipment internal detection, pipeline exploration, and more. It is an essential tool for auto repair technicians, industrial engineers, equipment operators, and quality inspectors. By performing internal inspections without disassembly, it significantly enhances operational efficiency and detection accuracy.

Specification:

Host system
Screen size	4.3-inch HD solar display
Display resolution	800×480
Zoom In/Out	Support real-time 4X zooming in, image playback 8X zooming in

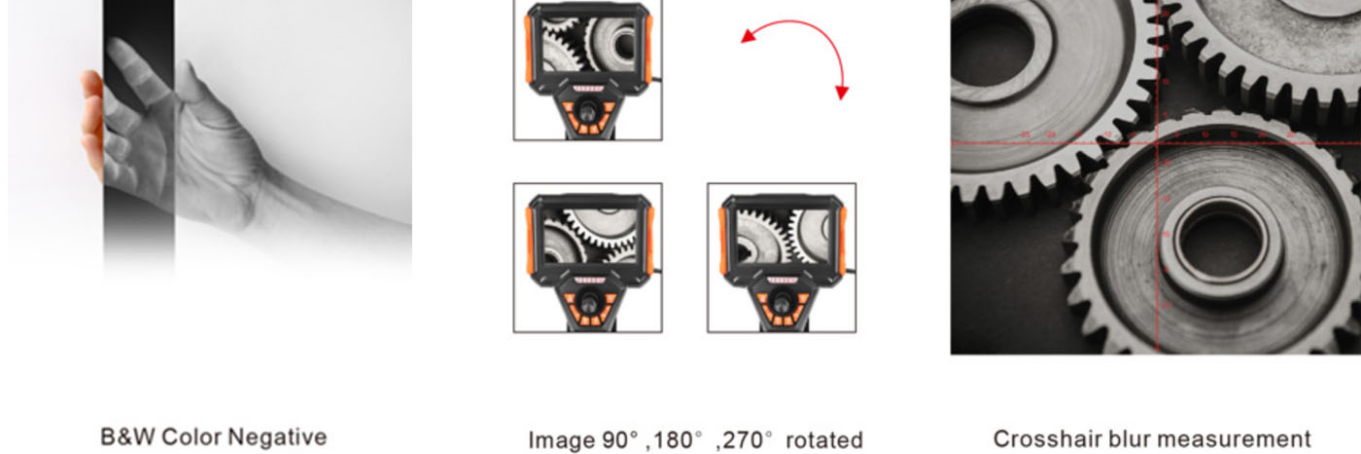

Image Effect	B&W Color Negative
Image Format	BMP/JPEG
Video Format	MP4
Image Rotation	Rotation by 0°, 90°, 180°, 270°
Image Preview	Look back using the list
Auxiliary measuring	Cross cursor reference line
File Storage	Standard TF card: 32G
Output Port	Mini HDMI
Language	Multiple
Screen backlight brightness	4 levels adjustable
Host size	295mm136mm60mm
Host weight	≤0.45Kg (including battery)
Function	Photo/Video/Zoom/Auxiliary measuring
Camera System
Diameter	8mm	6mm	3.9mm	2.8mm	2.0mm	1.8mm	1.6mm	1.2mm	0.95mm
Camera pixel	1.0 Mega			0.52Mega				0.16Mega	0.16Mega
Light	LED			LED				LED	Optic fiber
Illuminance	18000Lux			18000Lux				18000Lux	20000Lux-100000Lux
FOV	120°
DOF	8-150mm		5-120mm	3-50mm				3-50mm	3-50mm
Steering Angle	Four-way 360°							/	/
Bending Angle	150 °							/	/
Probe Material	Hard wear resistant titanium alloy
Tube Material	Four layers of tungsten wire braided pipe
Tube Length	1m/1.5m/2m/3m			1m
Power Supply
Battery Charging	DC5V 2A, 3.7V
Battery	Built-in 5000mAh Li-battery
Working time	5 hours
Operating environment
Host operating temperature	-10℃-50℃
Probe operating temperature	-20-80℃
Storage temperature	-20-60℃
Relative humidity	15-90%
Water/Dust Proof	Probe/tube: IP68; Host: IP54
Configuration
Standard configuration	4.3-inch display articulating videoscope1, Mini HDMI cable1
	Charging cable1, Li-battery 1, Charger1, Toolbox1, Base*1 (Magnetic base optional)
