BN Series

3.5'' Nimble Borescope
360° Articulation 1080P HD Joystick Control

3.5 inch IPS HD screen
1Mega Pixel 1080P HD camera
All-way 360° Joystick control articulation
IP67 Waterproof & Oil-proof
One-click photo/Video capture
5X Zoom in/out
High Temperature protection
3200mAh Rechargeable Li-battery
Quantity
Contact Now
add to cart

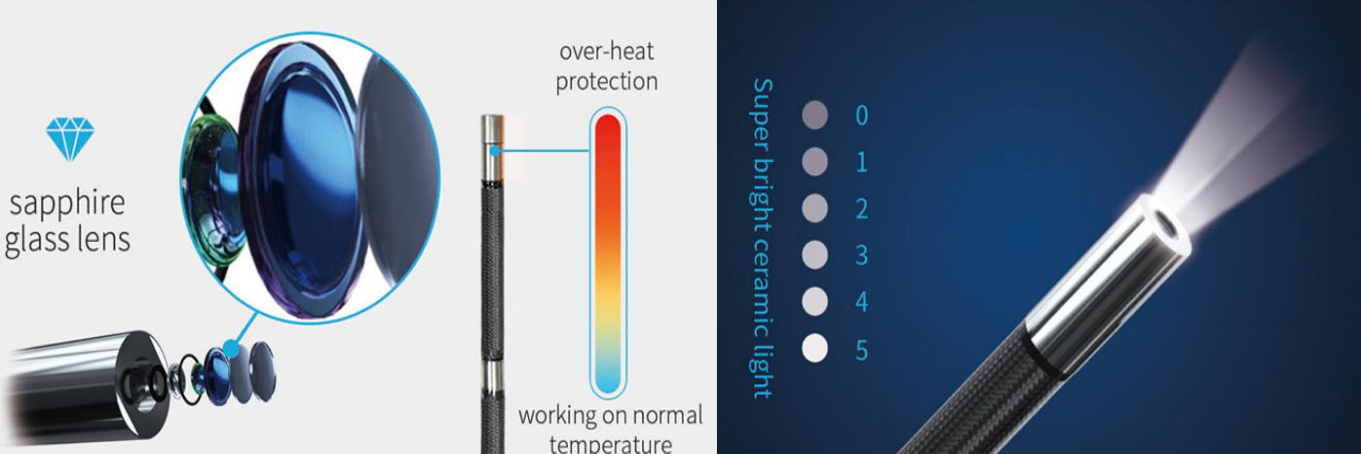

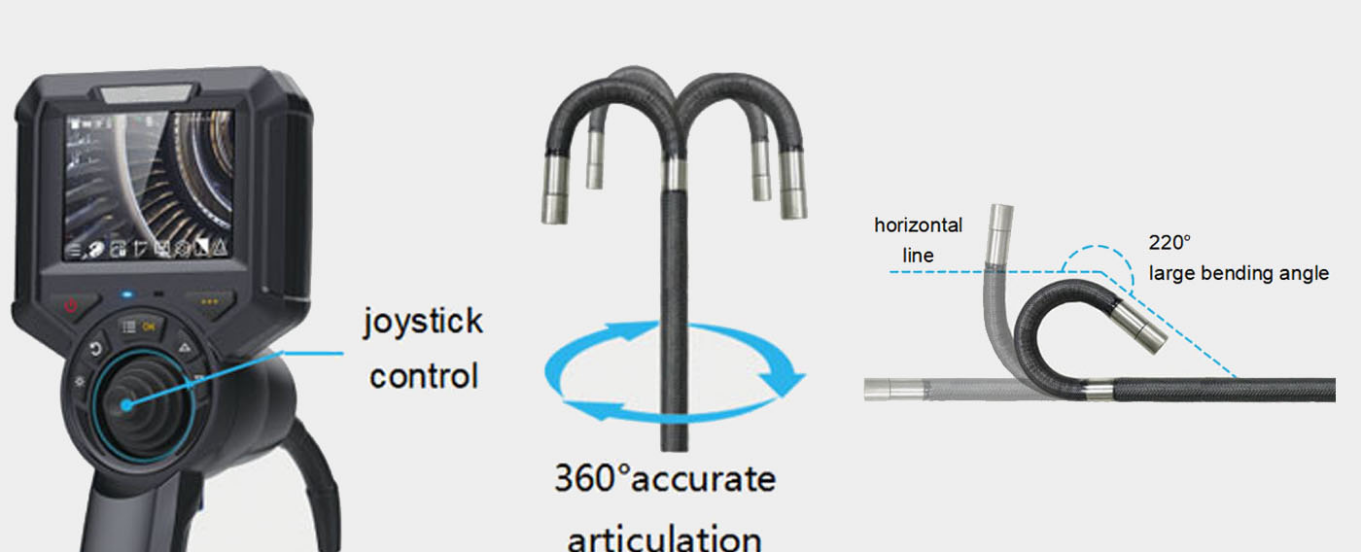

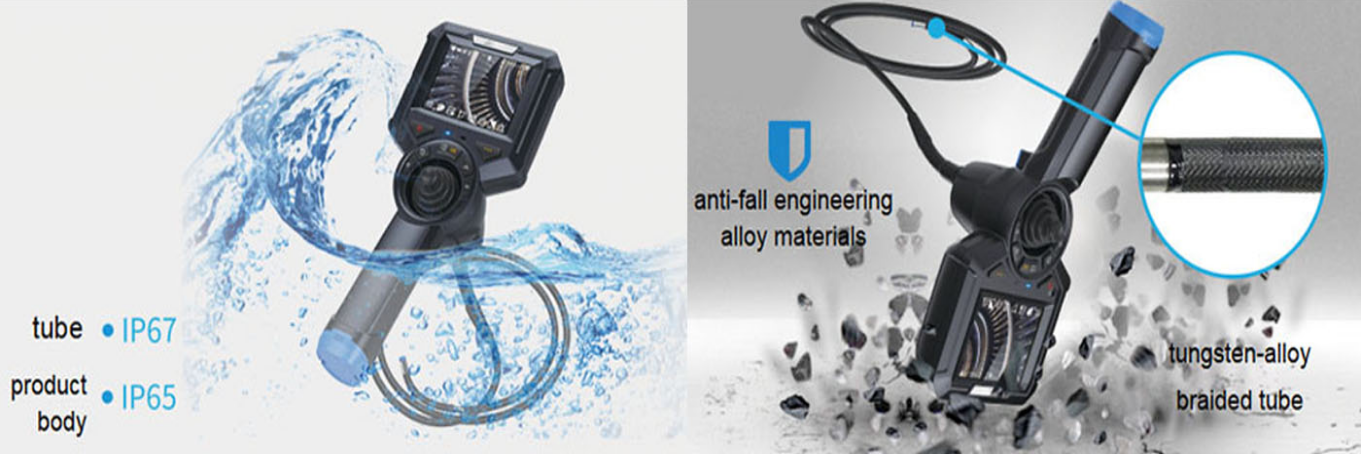

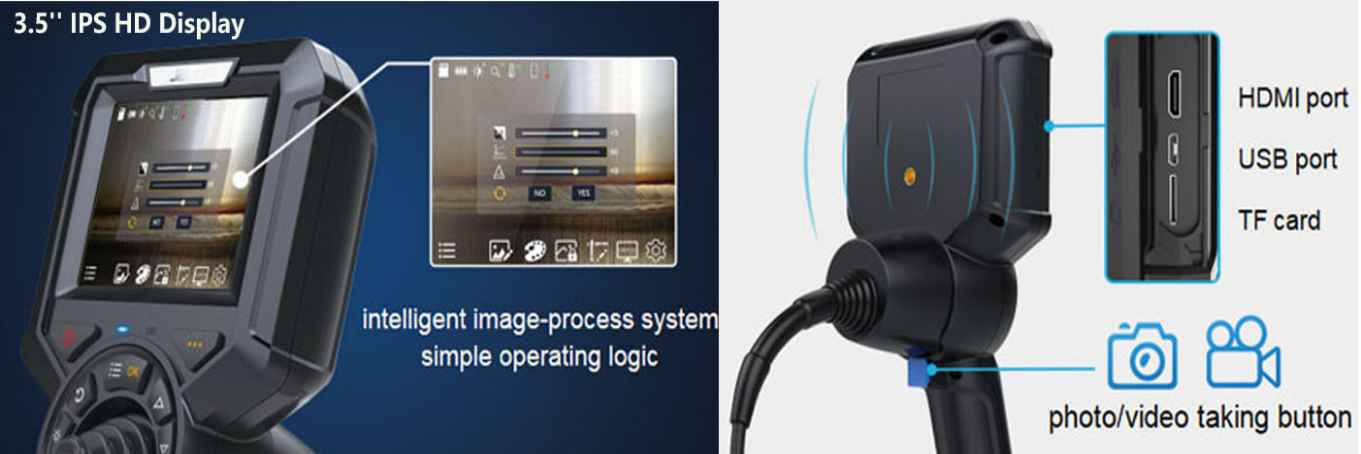

The BN Series is a"3.5-inch All-Way Articulation HD Borescope". Designed for internal inspections in automotive, industrial inspection and diagnostics. It features a four-way 360° Joystick control articulating HD camera, super bright ceramic light with 0-6 levels adjustment gives crystal-clear images. Over-heat protection and IP67 waterproof rating ensures safety use in heated or wet environments. 3.5-inch HD display, joystick control, one-click photo/video capture. And a 3200mAh battery supports up to 3 hours of continuous work

Feature:







Application:

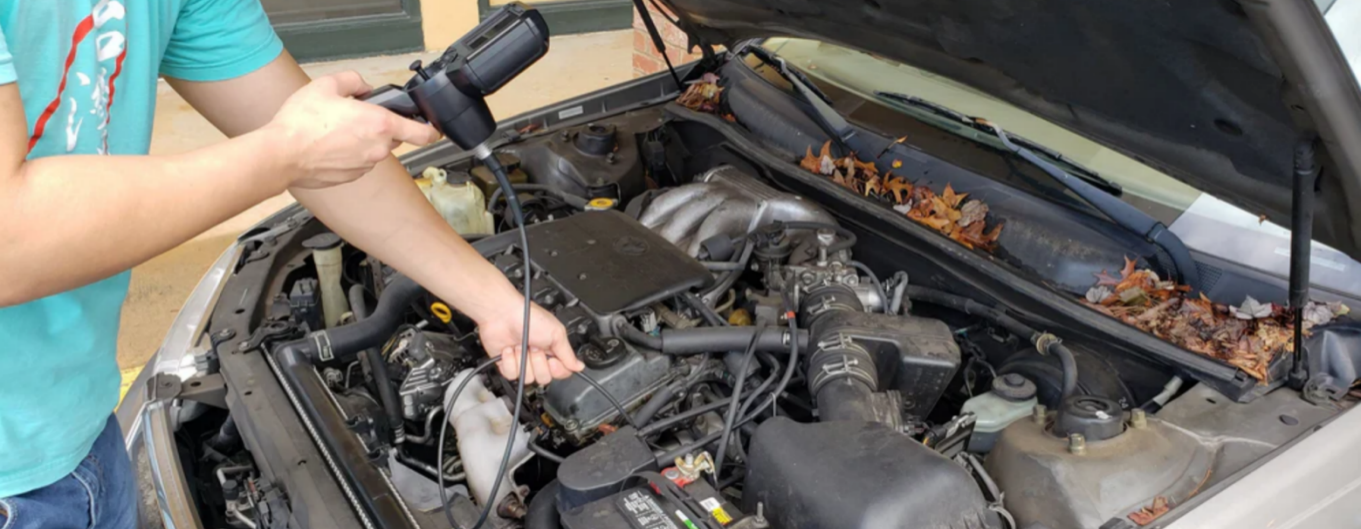

The BN Series 3.5-inch All-Way Articulation HD Borescope can be widely used in examining car engine cylinder block, valve, piston head, nozzle, ternary catalytic converter, evaporation tank, piping and gap of car body. It also can be used on aircraft, motorcycles, boats, air conditioning systems, heat exchanger, industrial equipment and professional instruments, heavy-duty vehicles etc.


Specification:

Host system

Screen size

3.5-inch IPS Display

Zoom In/Out

5X

Image Effect

Image freezing, cold/warm color

Image Adjustment

Image sharpness/ contrast/gamma value

Image/Video Format

JPEG/MP4

File Storage

Standard TF card: 16G, Maximum: 64G

Data Port

HDMI video output, Micro USB port

Language

Multiple

Outer Case Material

Anti-fall engineering alloy material

Wireless Image Transmission

WIFI（optional）

Function

Photo/Video/Zoom

Camera System

Diameter

6mm

Optical Total Pixels

1.0 Mega:1280*720

Light

LED ceramic light

Illuminance

25000Lx

FOV

120°

DOF

10-100mm

Steering Angle

Four-way 360°

Bending Angle

Maximum: 220°

Tube Material

Tungsten alloy

Tube Length

1m/1.5m

Power Supply

Battery Charging

DC5V 1A, 3.7V

Battery

Built-in 3200mAh Li-battery

Working time

3 hours

Protection

Water/Dust Proof

Probe/tube: IP67; Monitor: IP65

Configuration

Standard configuration

3.5-inch display articulating videoscope*1,

USB cable*1, Li-battery *1, Charger*1, Toolbox*1
