BM Series

5'' Multifunctional Borescope

360° Articulation 1080P HD Joystick Control

5 inch IPS HD large screen
Modular Design Detachable Probe & Display
1Mega Pixel 1080P HD camera
All-way 360° Joystick control articulation
One-click photo/Video capture
High Temperature Warning
WiFi transmission

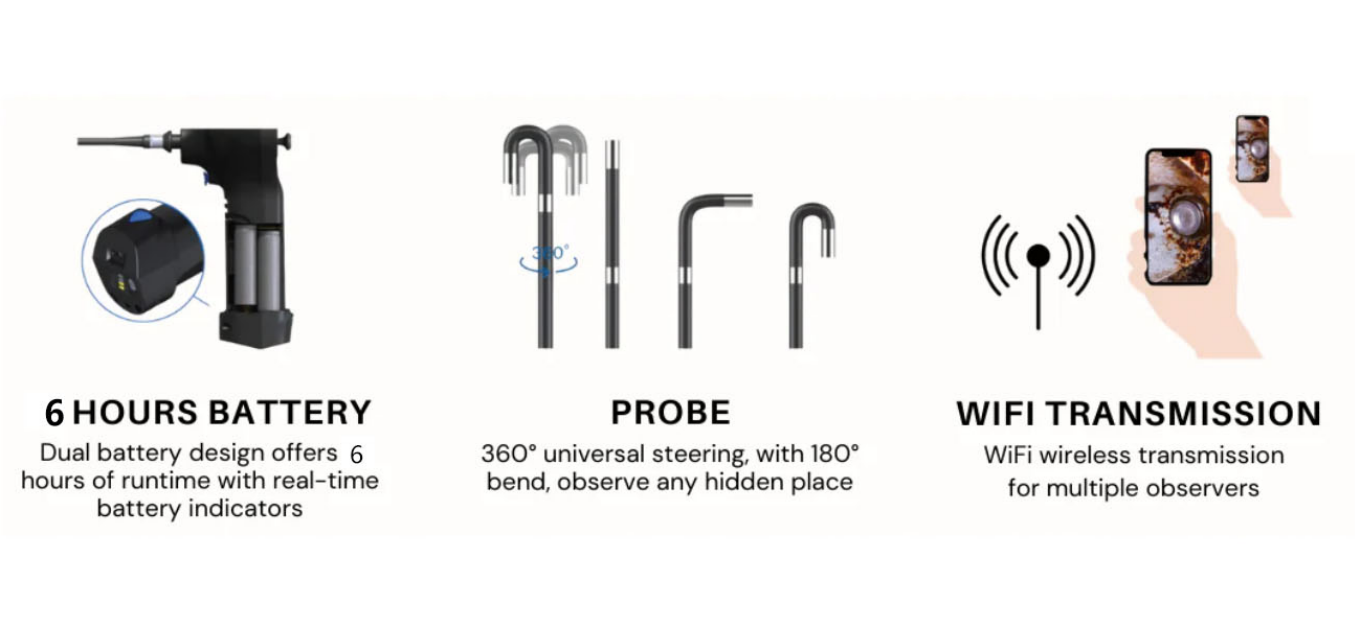

Dual battery design, Up to 6 hours

Quantity

Contact Now

add to cart

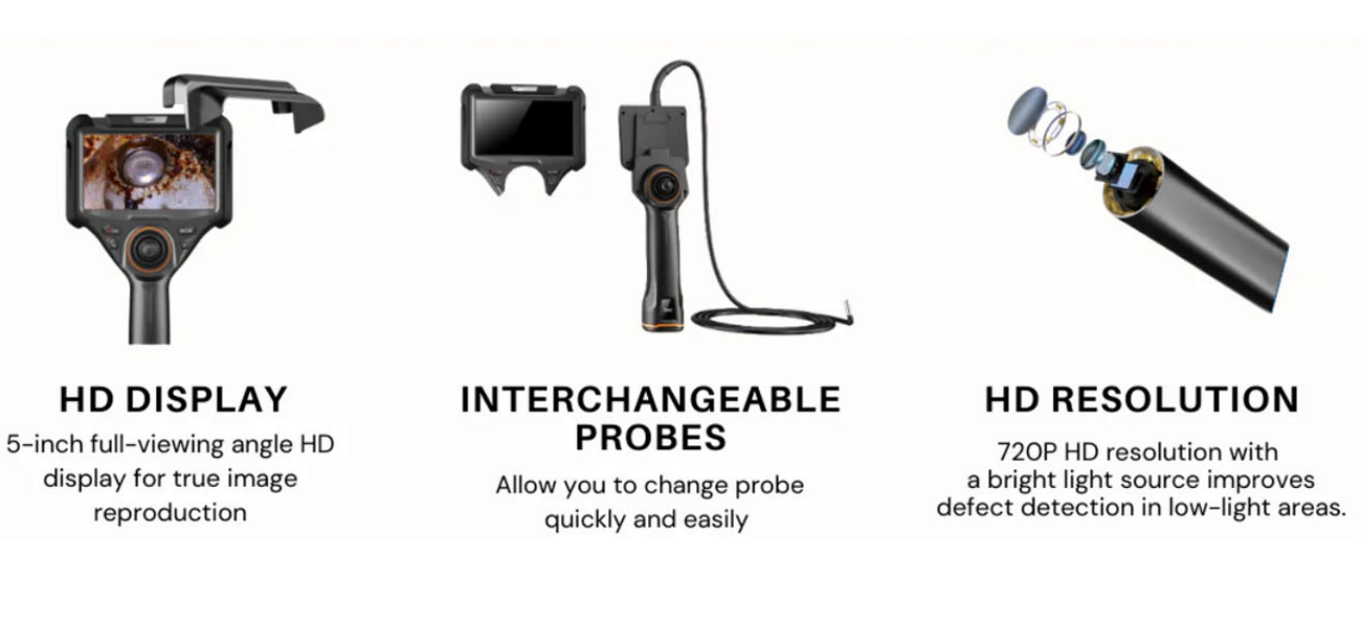

The BM Series is a"5-inch Multifunctional All-Way Articulation HD Borescope". It features a four-way 360° Joystick control articulating HD camera with high bright adjustable LED lights gives crystal-clear images. With 5-inch high-definition full-view display to truly restore the detection image effect. High-temperature warning and IP67 waterproof rating ensures safety use in heated or wet environments. Modular design, and a plug-in quick-change pipeline system to achieve compatibility with multiple pipeline functions and is suitable for a variety of applications.

Feature：

Application:

The BM Series 5-inch Multifunctional All-Way Articulation HD Borescope can be widely used in internal equipment inspection during mechanical maintenance, hidden space exploration in construction, and blind-spot checks for auto parts in car maintenance etc.. It’s for auto mechanics, maintenance engineers & other industrial practitioners. Viewing internal details without disassembly, locates faults fast, replaces high-risk inspections—boosts efficiency & safety

Specification:

Host system
Screen size	5-inch IPS display
Image Effect	Standard (default), black and white, warm light, cold light, negative film
Photo/Video Format	JPG / MP4
Image Rotate	0° / 180° / mirror image
Image Adjustment	Brightness, Contrast, and Gamma adjustment
Zoom In/Out	4X
Freeze	Fast freeze of images with one click
Date Watermark	Turn it on to postmark the date directly into photos and videos
Date Setting	Edit to adjust the device date
Wireless Transmission（WiFi）	wireless access to device video data via a mobile terminal app

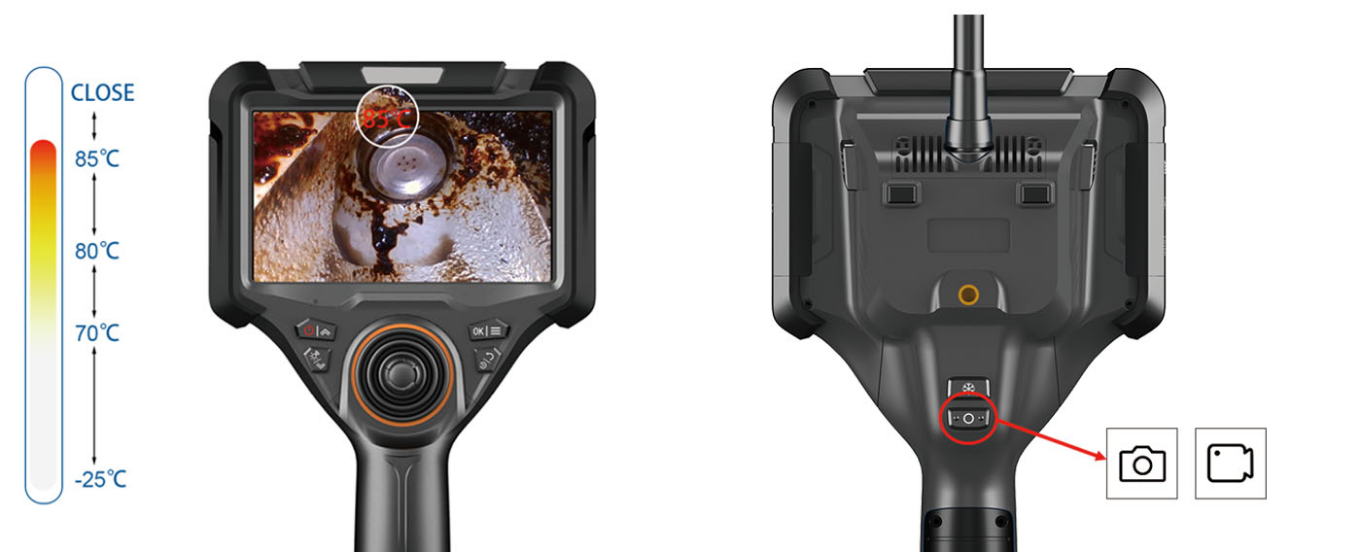

Temperature function	Temperature real-time display, high temperature alarm
Recording function (optional)	Record audio in real-time
Compatibility	Interchangeable tube systems with different diameters/length
File Storage	Standard TF card: 16G
Output Port	HDMI, video output, Type-C
Language	Multiple
Host size	28014381mm
Host weight	≤0.75Kg (including battery)
Camera System
Diameter	6mm	3.9mm
Camera pixel	1.0 Mega
Image Resolution	1920*1080	1280*720
Video Resolution	1920*1080	1280*720
Light	High bright ceramic LED light
Brightness Levels	0-9 level cyclic adjustment
FOV	120°
DOF	10-100mm
Steering Angle	Four-way 360°
Bending Angle	max:190°
Tube Material	wear-resistant tungsten alloy wire
Tube Length	1m/1.5m/2m/3m	1m/1.5m/2m
Power Supply
Battery Charging	DC5V 1A, 3.7V
Battery	Built-in 18650 Li-battery
Working time	6 hours
Operating environment
Operating temperature	-30℃-50℃
Storage temperature	-30℃-50℃
Water/Dust Proof	Probe/tube: IP68; Host: IP54
Configuration
Standard configuration	5-inch display articulating videoscope*1,
	USB cable1,18650 battery 2, Charger1, Toolbag1
