BI Series

5'' Intuitive Borescope

360° Articulation 1080P HD Joystick Control

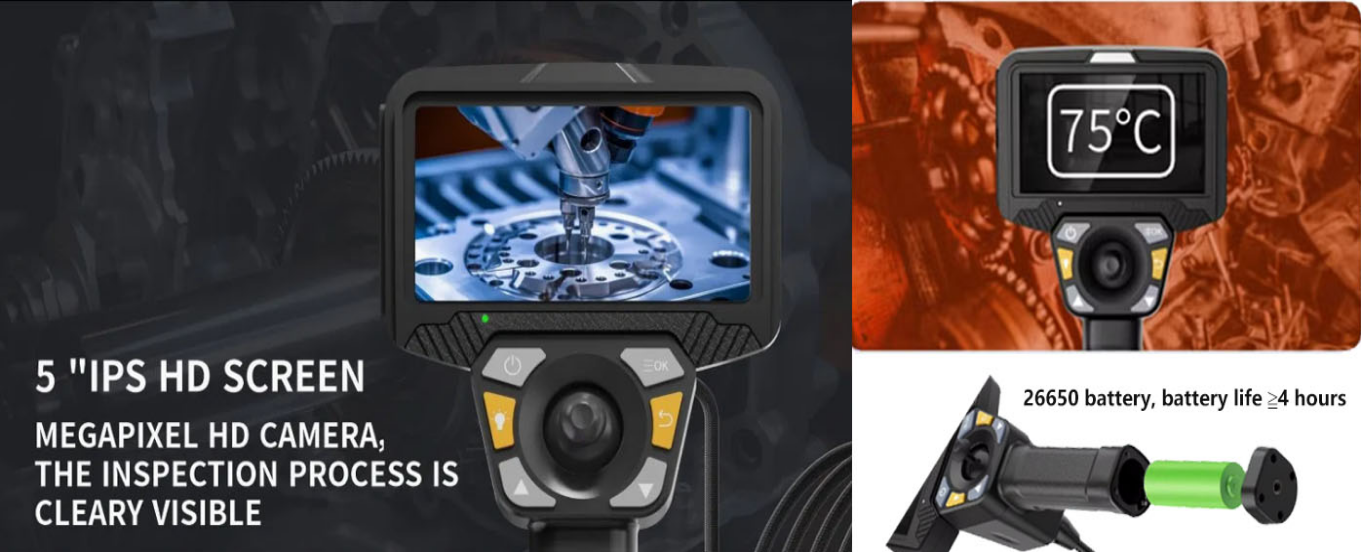

5 inch IPS HD large screen

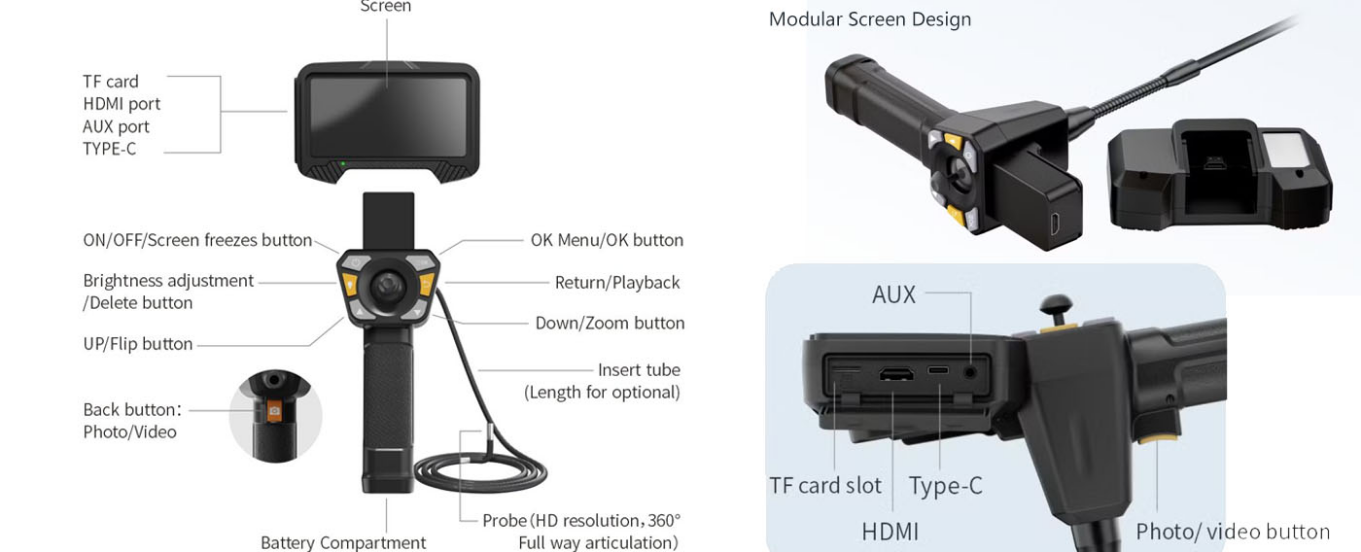

Modular detachable display
1Mega Pixel 1080P HD camera
All-way 360° Joystick control articulation
IP67 Waterproof & Oil-proof
One-click photo/Video capture
High Temperature Warning
26650 Rechargeable Li-battery

Quantity

Contact Now

add to cart

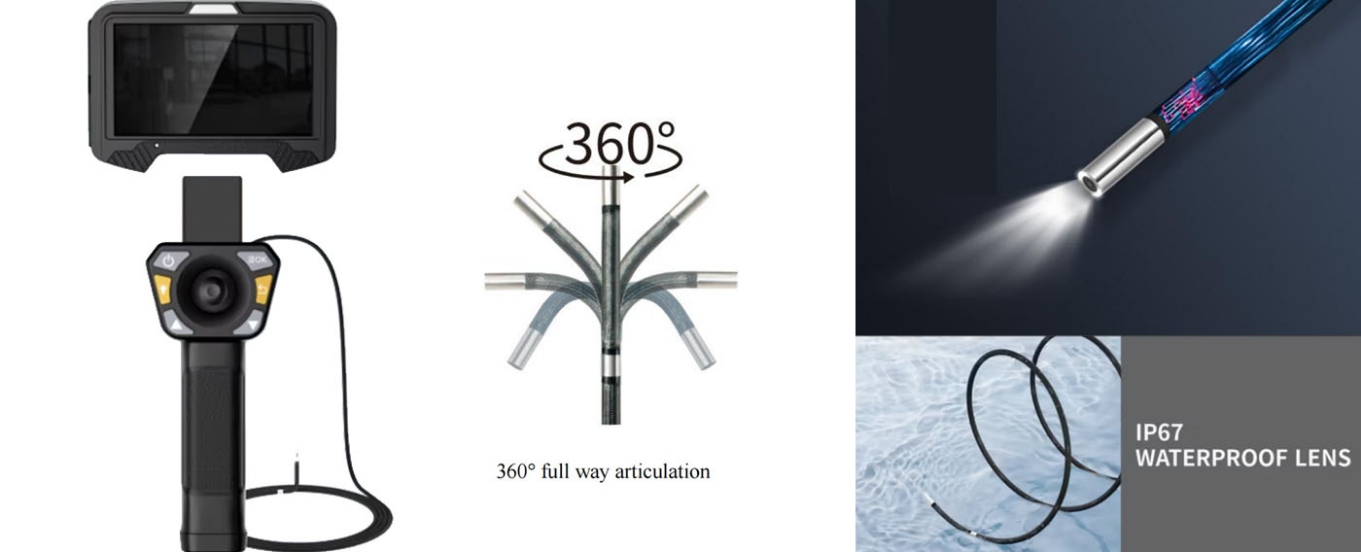

The BI Series is a"5-inch All-Way Articulation HD Borescope". Designed for detailed inspections in hard-to-reach areas. It features a four-way 360° Joystick control articulating HD camera with high bright adjustable LED lights gives crystal-clear images. Available with 2.8mm/4mm/6mm 3 kinds of diameter size lens. High-temperature warning and IP67 waterproof rating ensures safety use in heated or wet environments. Detachable 5-inch HD large display, modular design—making it ideal for professional use in automotive, pipeline, manufacturing and equipment maintenance.

Feature:

Application:

The BI Series 5-inch All-Way Articulation HD Borescope can be widely used in automobile maintenance, urban pipeline inspection, mechanical casting and electrical equipment maintenance and other fields. Ideal for automotive technicians, engineers, and maintenance professionals, it helps reach to the inaccessible internal parts, allowing for thorough inspections without disassembly, improving both efficiency and accuracy in your inspections.

Specification:

Host system
Screen size	5-inch HD display
Image Effect	Freeze
Image Format	JPEG
Video Format	MOV
File Storage	Standard TF card: 32G, Support up to 128G
Output Port	TYPE-C
Language	Multiple
Host size	265140132.7mm
Camera System
Diameter	6mm	4mm	2.8mm
Camera pixel	1.0 Mega
Light	LED
Illuminance	15000Lux
FOV	120°
DOF	10mm-∞
Steering Angle	Four-way 360°
Bending Angle	Tube length 1-2m:180 °, Tube length 3m:160 °
Tube Material	Flexible Mental Tube	Tungsten Braided Tube	Tungsten Braided Tube
Tube Length	1m/2m/3m	1m/2m/3m	1m/1.5m
Power Supply
Battery Charging	DC5V 1A, 3.7V
Battery	Built-in 26650 Li-battery
Working time	4 hours
Operating environment
Host operating temperature	-10℃-50℃
Probe operating temperature	-20-70℃
Storage temperature	-20-60℃
Relative humidity	Max 90%，No condensation
Water/Dust Proof	Probe/tube: IP67; Host: IP54
Configuration
Standard configuration	5-inch display articulating videoscope1, Mini HDMI cable1
	Charging cable1, 26650 battery 1, Charger1, Packing case1
