BC Series

5.1'' Classic Borescope

360° Articulation 1080P HD Joystick Control

5.1 inch HD screen
1Mega Pixel 1080P HD camera

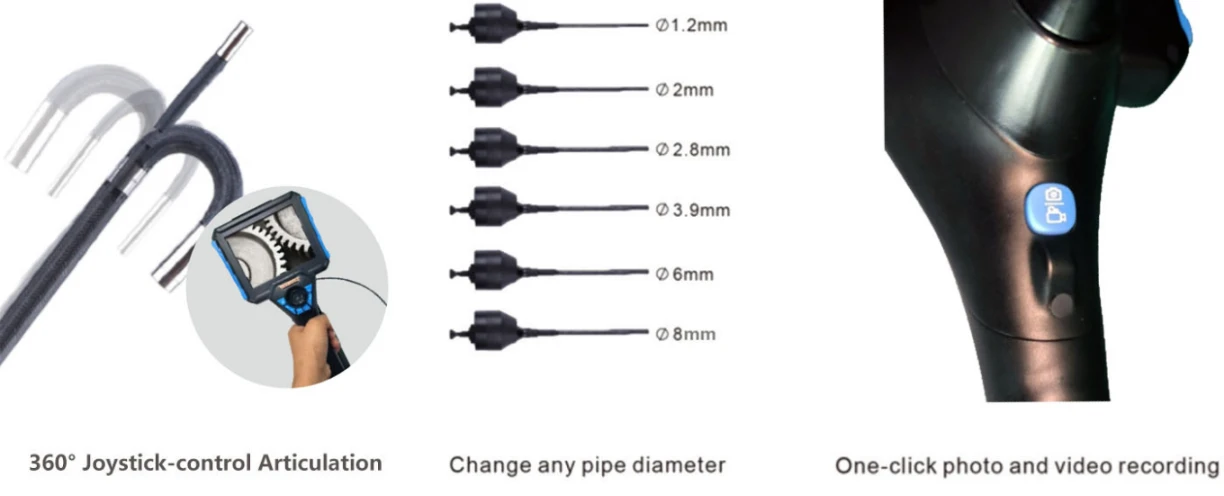

All-way 360° articulation
1.2mm-8mm Tube system
IP68 Waterproof Probe
One-click photo/Video capture
5X real-time zoom/9X playback zoom

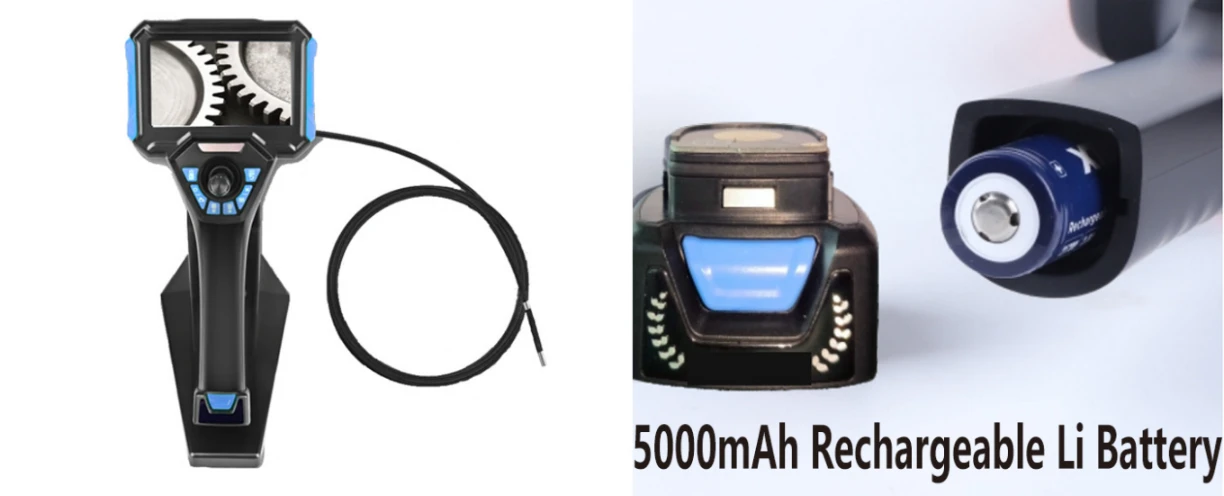

5000mAh Rechargeable Li-battery

Quantity

Contact Now

add to cart

The BC Series is a"5.1-inch Classic All-Way Articulation HD Borescope". Designed for automotive maintenance, industrial inspection and other fields. It features a four-way 360° articulation HD camera with adjustable lighting system, gives clear imaging even in dark internal scenes. Modular design, it supports probes with diameters ranging from 1.2mm to 8mm for wide applications. Equipped with a 5.1-inch HD display, joystick control, one-click photo/video capture. IP68 Waterproof rate makes safe use in wet environments and a 5000mAh battery supports continuous operation.

Feature:

Application:

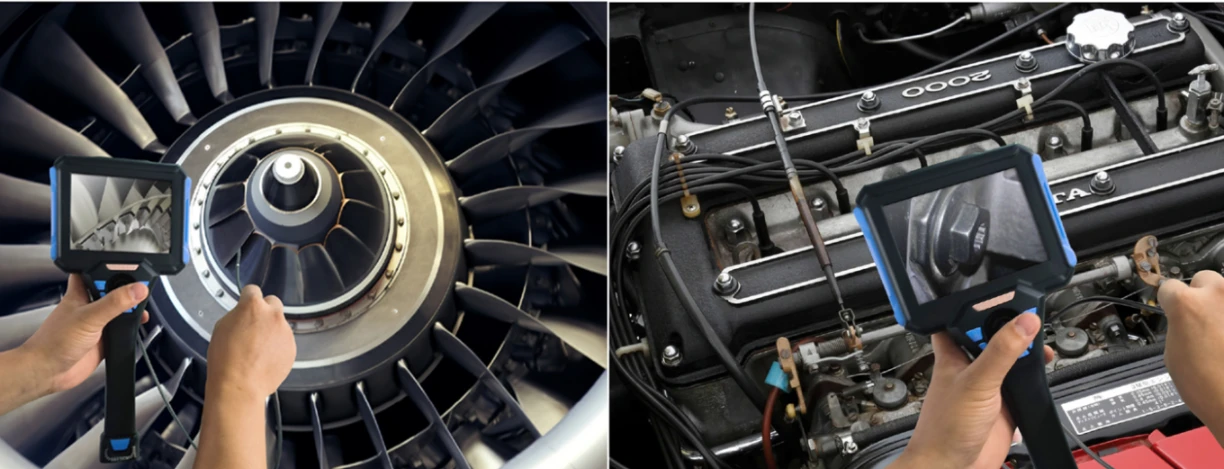

The BC Series 5.1-inch Classic All-Way Articulation HD Borescope is widely used in automotive, industrial, and aerospace fields. It fits engine carbon deposit checks, pipeline corrosion inspections, and aircraft component gap surveys. Used by maintenance technicians, industrial inspectors, and aerospace engineers, it avoids equipment disassembly, enables clear views of hidden areas via its articulated probe, lifting inspection efficiency and accuracy.

Specification:

Host system
Screen size	5.1-inch HD solar display
Display resolution	1280*960
Zoom In/Out	Support real-time 5X zooming in, image playback 9X zooming in

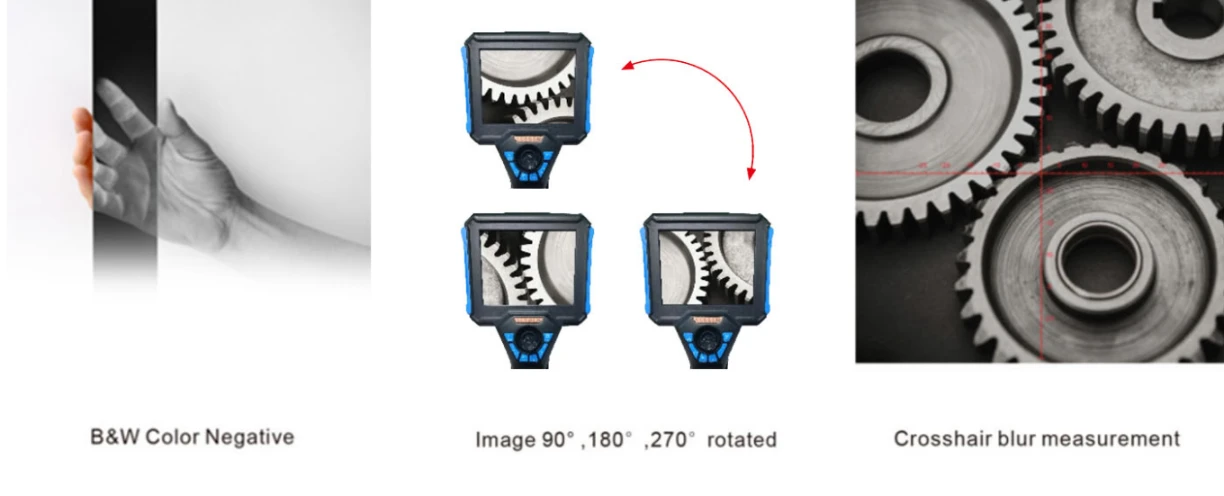

Image Effect	B&W Color Negative
Image Format	BMP/JPEG
Video Format	MP4
Image Rotation	Rotation by 0°, 90°, 180°, 270°
Image Preview	Look back using the list
Auxiliary measuring	Cross cursor reference line
File Storage	Standard TF card: 32G
Output Port	Mini HDMI
Language	Multiple
Host size	318mm142mm50mm
Host weight	≤0.6Kg (including battery)
Function	Photo/Video/Zoom/Auxiliary measuring
Camera System
Diameter	8mm	6mm	3.9mm	2.8mm	2.0mm	1.8mm	1.6mm	1.2mm
Camera pixel	1.0 Mega			0.52Mega			0.16Mega
Light	LED
Illuminance	18000Lux
FOV	120°
DOF	8-150mm		5-120mm	3-50mm
Steering Angle	Four-way 360°							/
Bending Angle	150 °							/
Probe Material	Hard wear resistant titanium alloy
Tube Material	Four layers of tungsten wire braided pipe
Tube Length	1m/1.5m/2m/3m			1m
Power Supply
Battery Charging	DC5V 2A, 3.7V
Battery	Built-in 5000mAh Li-battery
Working time	5 hours
Operating environment
Host operating temperature	-10℃-50℃
Probe operating temperature	-20-80℃
Storage temperature	-20-60 ℃
Relative humidity	15-90%
Water/Dust Proof	Probe/tube: IP68; Host: IP54
Configuration
Standard configuration	5.1-inch display articulating videoscope1, Mini HDMI cable1
	Charging cable1, Li-battery 1, Charger1, Toolbox1, Stand*1
