VW Series

4.3'' Wheel Control Videoscope
Two-Way Articulating 1080P HD

4.3 inch HD screen
1Mega Pixel 1080P HD camera
Two-way 180° articulating camera
IP67 Waterproof & Oil-proof
Wheel control and Probe lock
One-click photo/Video capture
High Temperature protection
2200mAh Rechargeable Li-battery
Quantity
Contact Now
add to cart
The VW Series is a"4.3-inch Two-Way Articulating HD Videoscope". Perfect for automotive maintenance, pipeline and sewer inspection, and appliance repair. It features a two-way 180°articulating (up to 210°single direction) HD camera, inspecting hard-to-reach corners effortless. With 6 adjustable LEDs delivers crystal-clear visuals—even in dim, cramped spaces. Equipped with high-temperature protection (auto-shutdown above 90°C) and IP67 waterproof rating ensures safety use in heated or wet environments. 4.3-inch HD display, silicone wheel control, one-click photo/video capture and a one-button probe lock design to instantly record inspection details and keep the probe steady. And a 2200mAh battery supports up to 3 hours of continuous work—turning narrow, inaccessible spaces into easy-to-inspect areas.

Features:
4.3 inch HD screen
Two-way 180°articulating HD camera

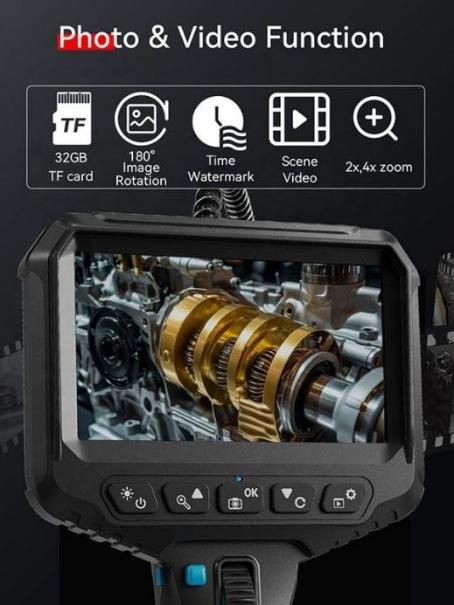

One-click photo/Video capture

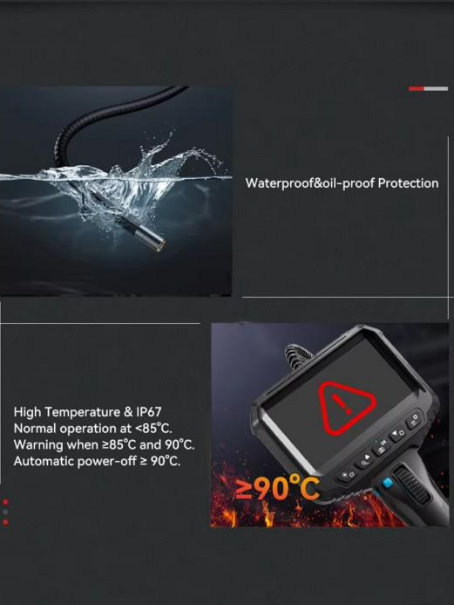

High Temperature protection, Over 90°C power off
IP67 Waterproof & Oil-proof with flexible tube

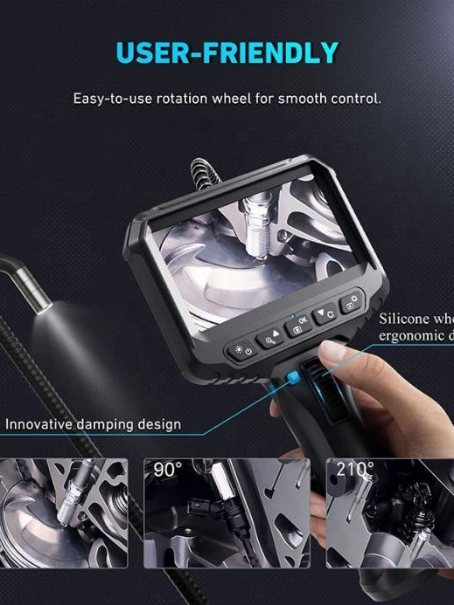

Silicone wheel design smooth steering control
One button Probe lock

Application:
The VW Series 4.3-inch Two-Way Articulating Wheel Control HD Videoscope can be widely used in automotive maintenance, sewer inspection, pipeline maintenance, HVAC system checks and home DIY. It is ideal for auto mechanics, pipeline maintenance workers, industrial equipment inspectors, municipal sewer operators and DIY enthusiasts. Inspecting internal components (such as engines and pipes) for faults, blockages and wear without disassembly.

Specification:

Host system

Screen size

4.3-inch IPS Display

Display resolution

480*272

Storage External SD card

TF card 1GB-64GB(Optional)

Language

Multiple

Temperature display

Rear-time temperature

Function

Photo/Video/Zoom

Camera System

Diameter

6.2mm

8.5mm

Optical Total Pixels

1.0 Mega:1280*720

2.0 Mega:1600*1200

Light

6 LEDs high light

FOV

90°

DOF

15-100mm

30-70mm

Steering Radius

30mm

Steering Angle

Two-way 180°

Steering Life

≥20000 times

Waterproof rating

IP67

Tube Material

Flexible Metal Tube

Tube Length

1m

High Temperature protection

Over 90°C power off

Power Supply

Battery Charging

DC5V 2A, 3.7V

Battery

Built-in 2200mAh Li-battery

Working time

3 hours

Operating Environment

Working temperature

-10~50

Relative humidity

Less than 90%

Configuration

Standard configuration

4.3-inch display articulating endoscope*1

USB cable*1, Li-battery *1, Toolbox*1
