VL Series

5'' Wheel Control Videoscope

Two-Way Articulating 1080P HD

5 inch HD large screen
1Mega Pixel 1080P HD camera
Two-way 180° articulating camera
IP67 Waterproof & Oil-proof

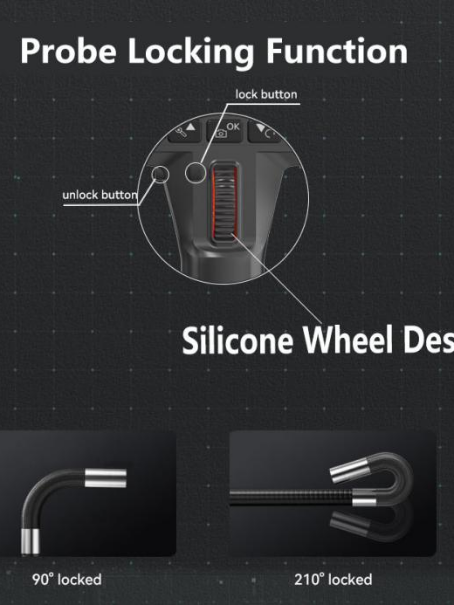

Wheel control and Probe lock
One-click photo/Video capture
High Temperature protection
4400mAh Rechargeable Li-battery

Quantity

Contact Now

add to cart

The VL Series is a"5-inch Two-Way Articulating HD Videoscope". Designed for automotive maintenance, pipeline and sewer inspection, and appliance repair. It features a two-way 180°articulating (up to 210°single direction) HD camera with 8 adjustable LEDs, it captures clear photo/video from different angles even in dim, cramped spaces. Equipped with high-temperature protection (auto-shutdown above 90°C) and IP67 waterproof rating ensures safety use in heated or wet environments. 5-inch HD display, silicone wheel control, one-click photo/video capture and a one-button probe lock design to instantly record inspection details and keep the probe steady. And a 4400mAh battery supports up to 5 hours of continuous work.

Feature:

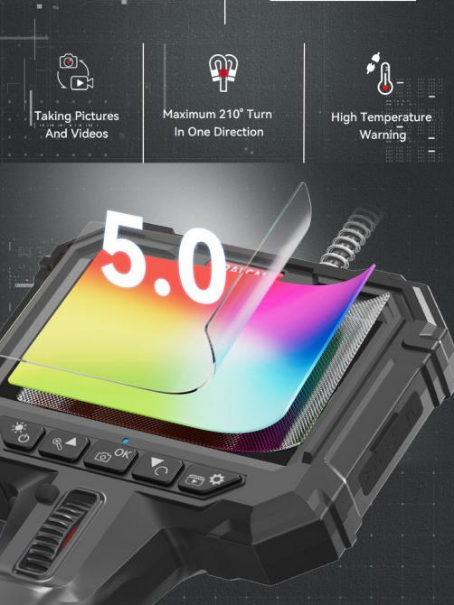

5 inch HD screen
Two-way 180°articulating HD camera
One-click photo/Video capture

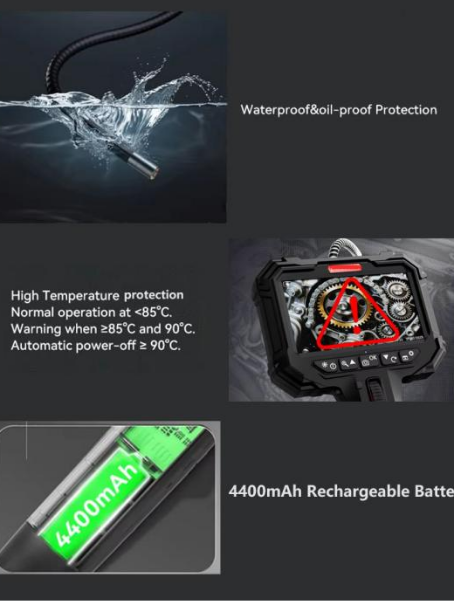

High Temperature protection, Over 90°C power off
IP67 Waterproof & Oil-proof
4400mAh Li-battery

Silicone wheel design smooth steering control
One button Probe lock

Application:

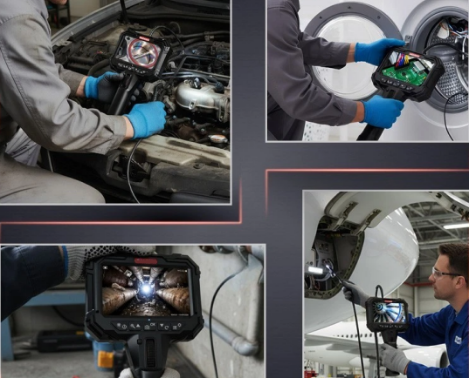

The VL Series 5-inch Two-Way Articulating Wheel Control HD Videoscope can be widely used in automotive maintenance, sewer inspection, pipeline maintenance, Home Appliance repair etc. It designed for mechanics, plumbers, technicians, and DIY users, it helps easily access confined spaces, identify hidden faults, and complete inspections faster with less effort and higher accuracy .

Specification:

Host system
Screen size	5-inch IPS Display
Display resolution	854*480
Storage External SD card	TF card 1GB-64GB(Optional)
Language	Multiple
Temperature display	Rear-time temperature
Function	Photo/Video/Zoom
Camera System
Diameter	3.9mm	5.5mm
Optical Total Pixels	1.0 Mega:1280*720
Light	6 LEDs	8 LEDs
FOV	90°
DOF	20-60mm	15mm-∞
Steering Radius	25mm	30mm
Steering Angle	Two-way 180°
Steering Life	≥20000 times
Waterproof rating	IP67
Tube Material	Flexible Metal Tube
Tube Length	1m	1.5m
High Temperature protection	Over 90°C power off
Power Supply
Battery Charging	DC5V 2A, 3.7V
Battery	Built-in 4400mAh Li-battery
Working time	5 hours
Operating Environment
Working temperature	-10~50（℃）
Relative humidity	Less than 90%
Configuration
Standard configuration	5-inch display articulating endoscope*1
	USB cable1, Li-battery 1, Toolbox*1
