VK Series

4.3'' Knob Control Videoscope

Two-Way Articulating 1080P HD

4.3 inch screen
1Mega Pixel 1080P HD camera
Two-way 180° articulating camera
IP67 Waterproof & Oil-proof
One-click photo/Video capture
High Temperature protection
2200mAh Rechargeable Li-battery

Quantity

Contact Now

add to cart

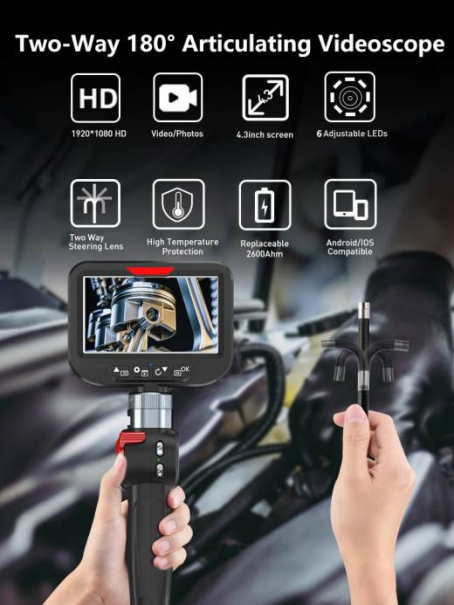

The VK Series is a"4.3-inch Two-Way Articulating HD Videoscope". Ideal for automotive maintenance, pipeline, appliance, sewer testing. It features a 4.3-inch screen and two-way 180°articulating HD camera (with 6 adjustable LEDs) that delivers clear visuals even in dim, cramped spaces and inspecting to hard-to-reach corners effortlessly. Built-in high-temperature protection (auto-shutdown above 90°C) ensures safe use in heated environments. With one-click photo and video capture, you can record inspection details instantly. It also boasts IP67 waterproof for wet-area checks, and a 2200mAh battery supports up to 3 hours of continuous work—turning narrow, inaccessible spaces into easy-to-inspect areas.

Features：

4.3 inch IPS screen
Two-way 180°articulating HD camera

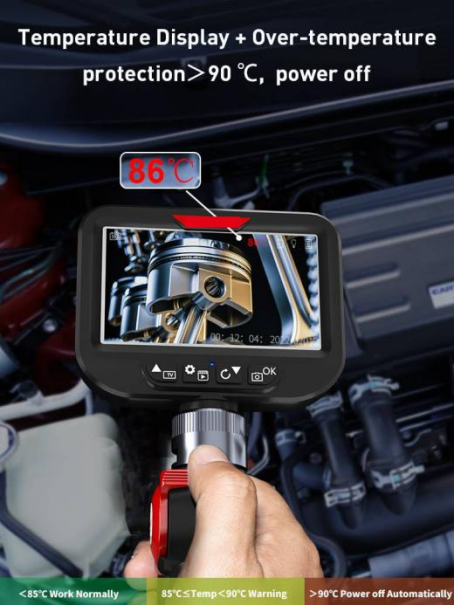

High Temperature protection, Over 90°C power off

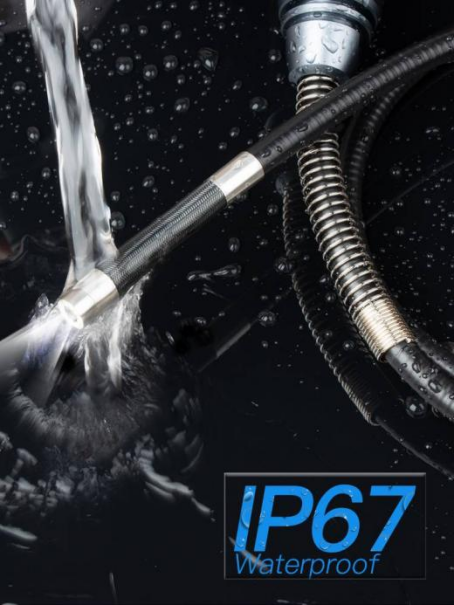

IP67 Waterproof & Oil-proof
Flexible Cable

Application：

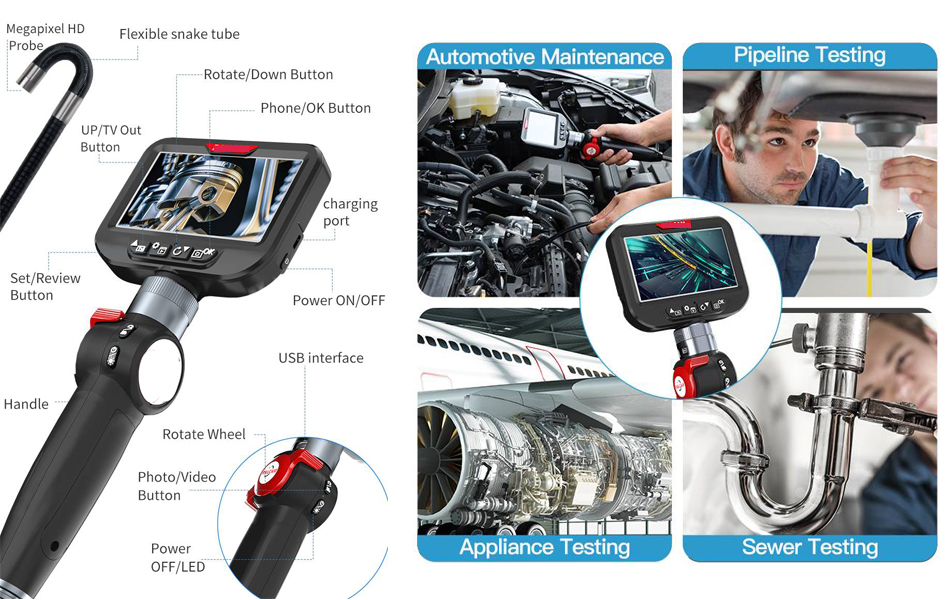

The VK Series 4.3-inch Two-Way Articulating HD Videoscope can be widely used in automotive maintenance, pipeline testing, industrial appliance (including aircraft component) inspection, and sewer troubleshooting. It is ideal for automotive technicians, pipeline maintenance workers, industrial equipment inspectors, and municipal sewer operators. Without disassembling complex parts or entering confined, dangerous spaces—boosting maintenance efficiency while reducing operational risks.

Specification：

Host system
Screen size	4.3-inch IPS Display
Display resolution	480*272
Storage External SD card	TF card 1GB-64GB(Optional)
Language	Multiple
Temperature display	Rear-time temperature
Function	Photo/Video/Zoom
Camera System
Diameter	6.2mm	8.5mm
Optical Total Pixels	1.0 Mega:1280*720	1.0 Mega:1600*1200
Light	6 LEDs high light
FOV	90°
DOF	15-100mm	30-70mm
Steering Radius	30mm
Steering Angle	Two-way 180°
Steering Life	≥20000 times
Waterproof rating	IP67
Tube Material	Flexible Metal Tube
Tube Length	1m
High Temperature protection	Over 90°C power off
Power Supply
Battery Charging	DC5V 2A, 3.7V
Battery	Built-in 2200mAh Li-battery
Working time	3 hours
Operating Environment
Working temperature	-10~50（℃）
Relative humidity	Less than 90%
Configuration
Standard configuration	4.3-inch display articulating endoscope*1
	USB cable1, Li-battery 1, Toolbox*1
