VA Series

4.3'' All-Way Articulation Videoscope

360° Rotation 1080P HD Modular Design

Detachable 4.3 inch HD screen
1Mega Pixel 1080P HD camera
All-way 360° articulating camera
IP67 Waterproof & Oil-proof
Joystick control and Modular design
One-click photo/Video capture
High Temperature protection
4400mAh Rechargeable Li-battery

Quantity

Contact Now

add to cart

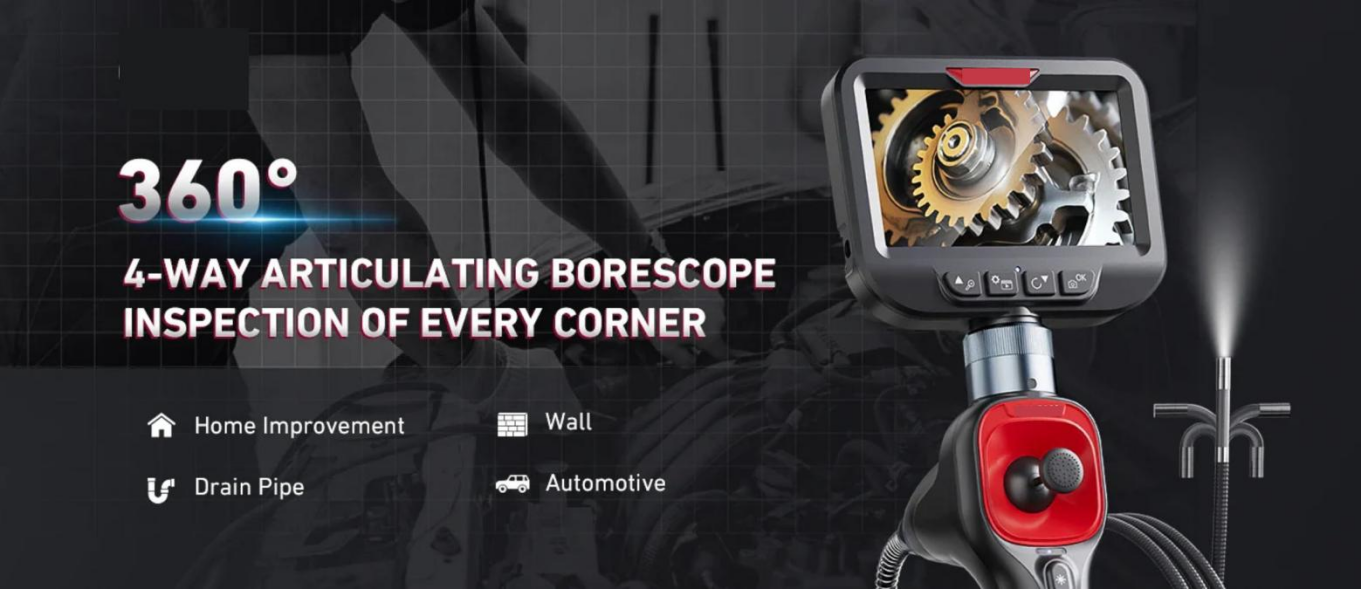

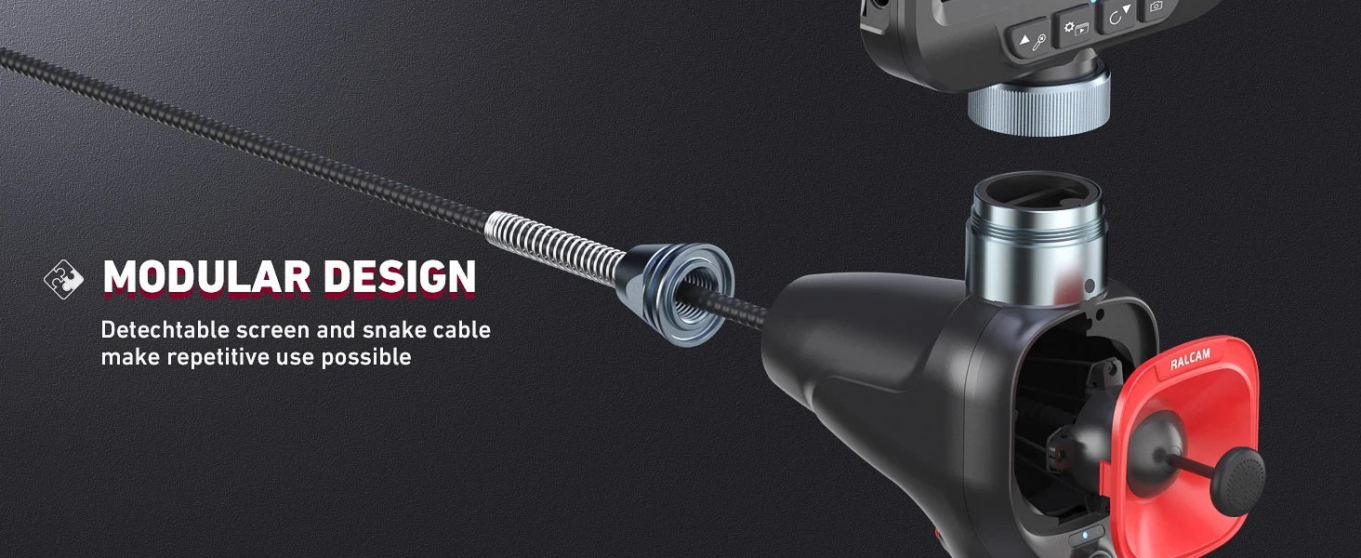

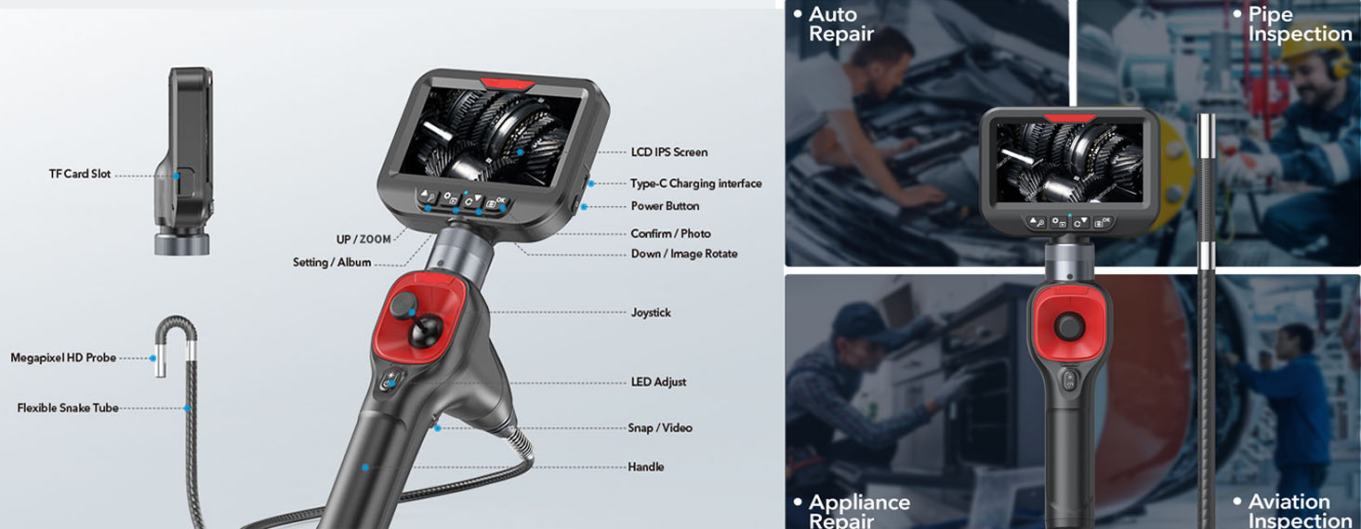

The VA Series is a"4.3-inch All-Way Articulation HD Videoscope". Perfect for sewer drain pipe inspection, car maintenance, air-conditioning repair, wall inspection, chimney cleaning, air-conditioning maintenance and other fields. It features a four-way 360°Steering HD camera, inspecting hard-to-reach corners effortless. With 6 adjust able LEDs delivers crystal-clear visuals—even in dim, cramped spaces. Equipped with high-temperature protection (auto-shutdown above 90°C) and IP67 waterproof rating ensures safety use in heated or wet environments. Detachable 4.3-inch HD display, Joystick control, one-click photo/video capture and tube system modular design. And a 4400mAh battery supports up to 5 hours of continuous work.

Features:

Application:

The VW Series 4.3-inch All-Way Articulation HD Videoscope can be widely used in sewer drain pipe inspection, car maintenance, air-conditioning repair, wall inspection, chimney cleaning, appliance maintenance and other fields. It can help you quickly find the problem, and make the right judgment..

Specification:

Host system

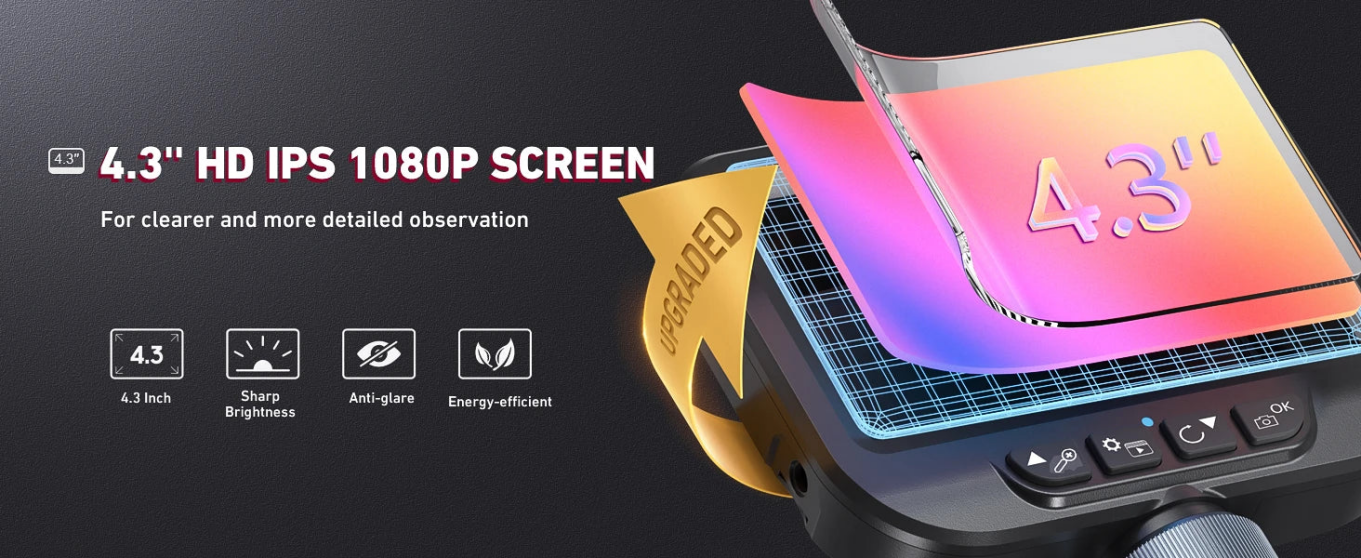

Screen size	4.3-inch IPS Display
Display resolution	480*272
Storage External SD card	TF card 1GB-64GB(Optional)
Language	Multiple
Temperature display	Rear-time temperature
Function	Photo/Video/Playback/Image rotation/Zoom
Camera System
Diameter	3.9mm	6.2mm
Optical Total Pixels	1.0 Mega:1280*720	1.0 Mega:1280*720
Light	6 LEDs high light
FOV	90°
DOF	8-100mm	15-100mm
Steering Radius	30mm

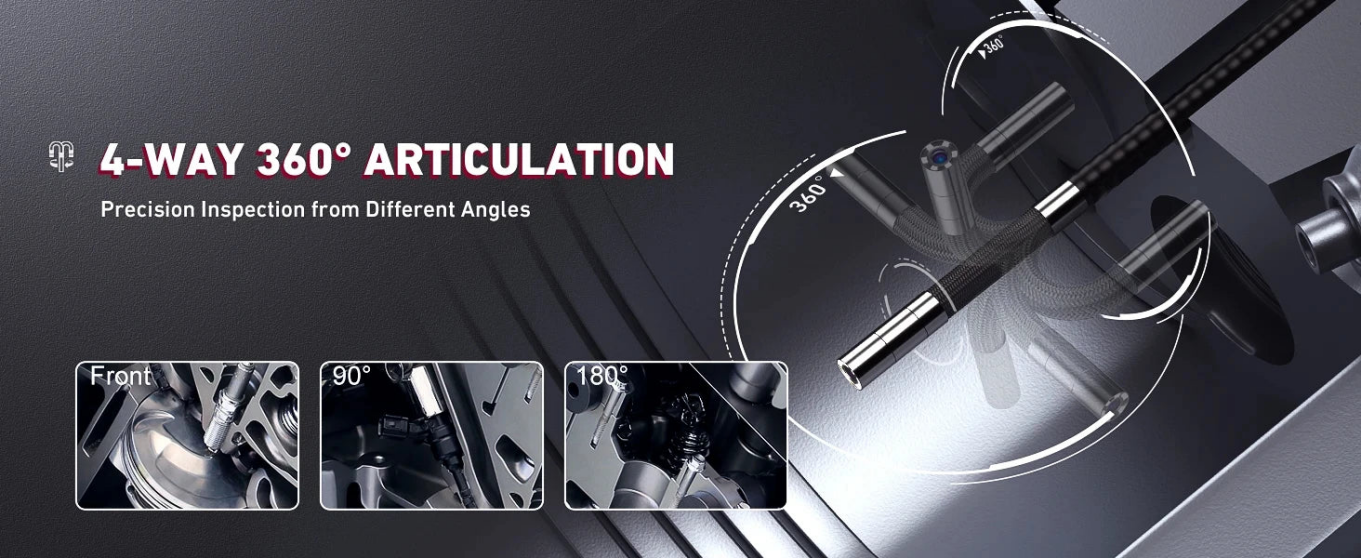

Steering Angle	Four-way360°
Steering Life	≥20000 times

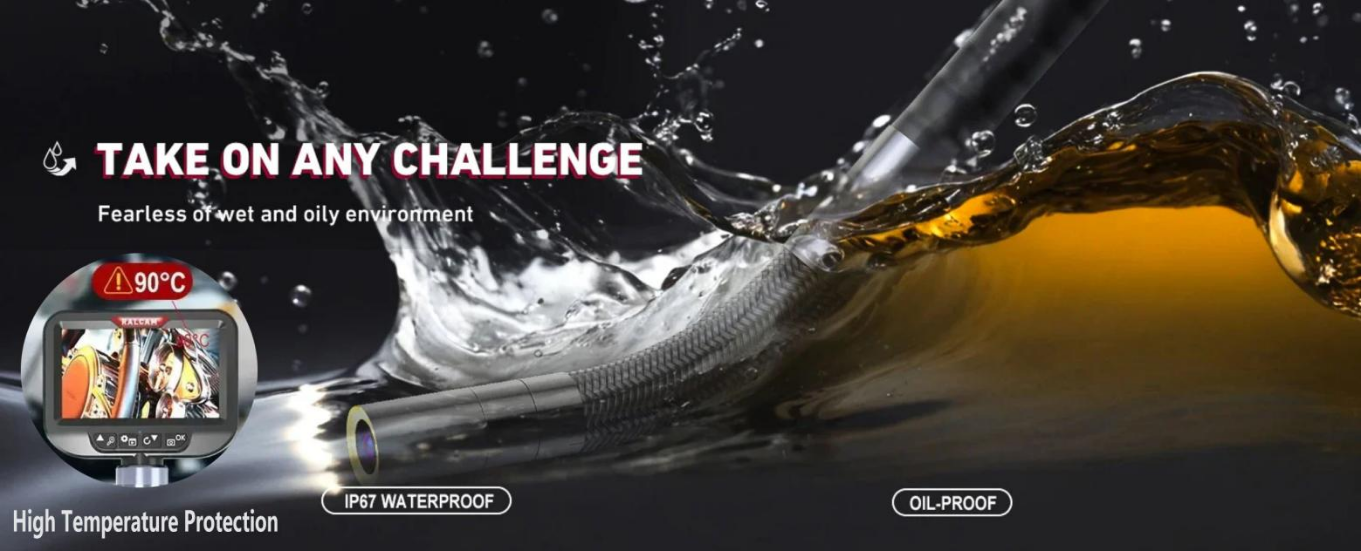

Waterproof rating	IP67
Tube Material	Flexible Metal Tube
Tube Length	1m
High Temperature protection	Over 90°C power off
Power Supply
Battery Charging	DC5V 2A, 3.7V
Battery	Built-in4400mAh Li-battery
Working time	5 hours
Operating Environment
Working temperature	-10~50（℃）
Relative humidity	Less than 90%
Configuration
Standard configuration	4.3-inch display articulating endoscope*1
	USB cable1, Li-battery 1, Toolbox*1
